AC测试时出现系统不上电问题

交流互助区
1

// 此模板仅供参考，如果不适用可以修改

问题描述

AC测试时出现系统不上电问题

环境信息

  • 操作系统：[如 Ubuntu 24.04]

  • 软件版本：openUBMC2512 LTS SP2

  • 硬件配置：[如 CPU、内存等]

重现步骤

  1. 设置上电策略为保持上电

  2. 开始AC测试

  3. 等待测试完成

期望结果

测试正常完成，每次AC后系统能上电

实际结果

AC测试时出现系统不上电问题

尝试过的解决方案

无

分析结论

fructrl组件出现重启，由于软重启不执行上电策略，所以系统长时间处于下电状态，AC测试失败

Snipaste_2026-09-14_14-42-53

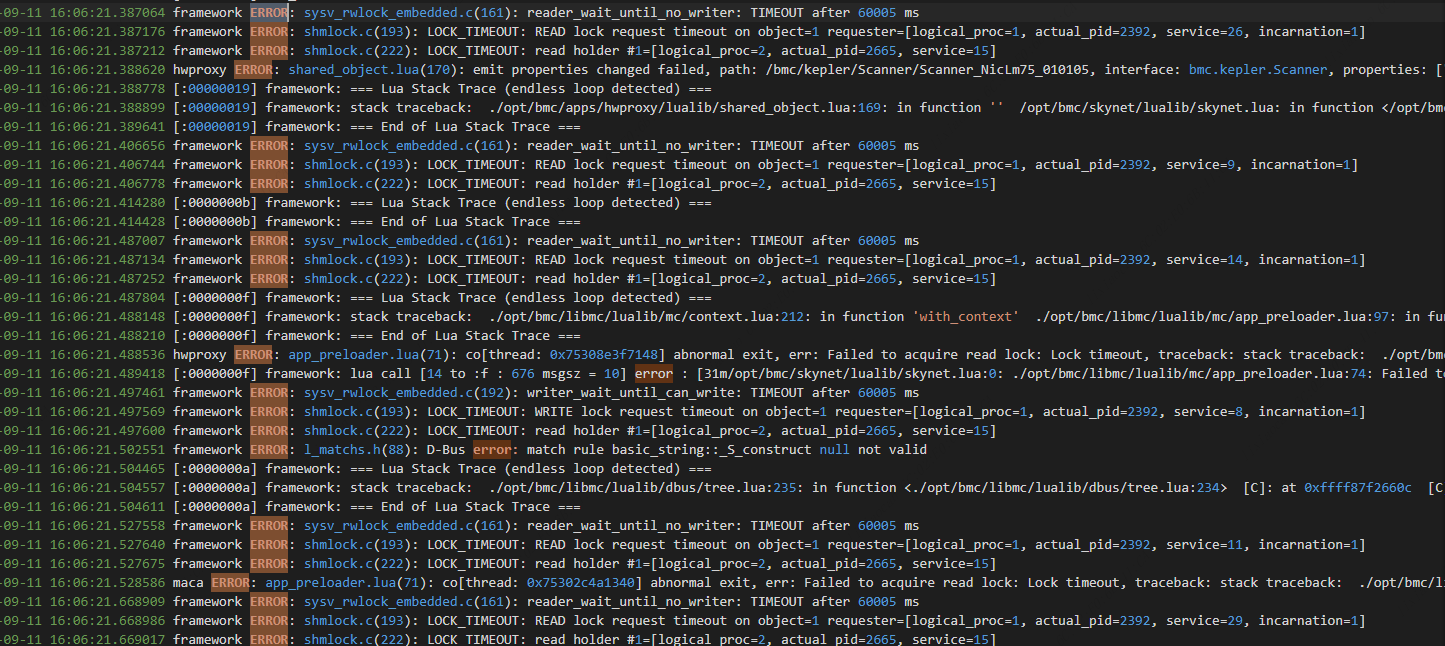

framework有大量error错误打印

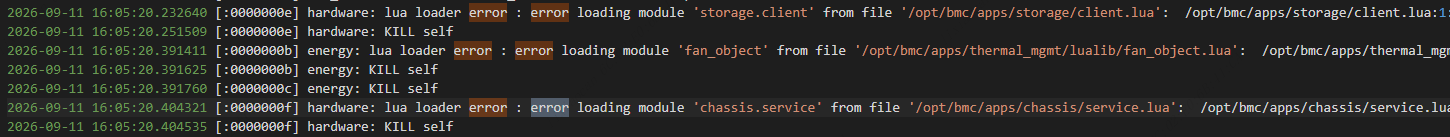

还有 lua loader error

image1450×137 22.7 KB

image1445×646 126 KB

2026-09-11 16:05:14.548692 persistence WARNING: harbor_client.lua(386): Receiver Skynet message queue scheduling delay is 1789142658504 ms (threshold: 500 ms), service_name=bmc.kepler.persistence, path=/bmc/kepler/persistence, interface=bmc.kepler.persistence, method_name=BatchRead
2026-09-11 16:05:14.552279 maca NOTICE: base.lua(393): monitor component bmc_health added, service: bmc.kepler.bmc_health
2026-09-11 16:05:14.609555 persistence WARNING: harbor_client.lua(386): Receiver Skynet message queue scheduling delay is 1789142658556 ms (threshold: 500 ms), service_name=bmc.kepler.persistence, path=/bmc/kepler/persistence, interface=bmc.kepler.persistence, method_name=BatchRead
2026-09-11 16:05:14.682398 persistence WARNING: harbor_client.lua(386): Receiver Skynet message queue scheduling delay is 1789142658628 ms (threshold: 500 ms), service_name=bmc.kepler.persistence, path=/bmc/kepler/persistence, interface=org.freedesktop.DBus.Peer, method_name=Ping
2026-09-11 16:05:14.682532 maca NOTICE: base.lua(393): monitor component certificate added, service: bmc.kepler.certificate
2026-09-11 16:05:14.751711 persistence WARNING: harbor_client.lua(386): Receiver Skynet message queue scheduling delay is 1789142658608 ms (threshold: 500 ms), service_name=bmc.kepler.persistence, path=/bmc/kepler/persistence, interface=org.freedesktop.DBus.Peer, method_name=Ping
2026-09-11 16:05:14.753863 persistence WARNING: harbor_client.lua(386): Receiver Skynet message queue scheduling delay is 1789142658501 ms (threshold: 500 ms), service_name=bmc.kepler.persistence, path=/bmc/kepler/persistence, interface=org.freedesktop.DBus.Peer, method_name=Ping
2026-09-11 16:05:14.824830 persistence WARNING: harbor_client.lua(386): Receiver Skynet message queue scheduling delay is 1789142658518 ms (threshold: 500 ms), service_name=bmc.kepler.persistence, path=/bmc/kepler/persistence, interface=org.freedesktop.DBus.Peer, method_name=Ping
2026-09-11 16:05:14.826390 persistence WARNING: harbor_client.lua(386): Receiver Skynet message queue scheduling delay is 1789142658519 ms (threshold: 500 ms), service_name=bmc.kepler.persistence, path=/bmc/kepler/persistence, interface=org.freedesktop.DBus.Peer, method_name=Ping
2026-09-11 16:05:14.827693 persistence WARNING: harbor_client.lua(386): Receiver Skynet message queue scheduling delay is 1789142658461 ms (threshold: 500 ms), service_name=bmc.kepler.persistence, path=/bmc/kepler/persistence, interface=org.freedesktop.DBus.Peer, method_name=Ping
2026-09-11 16:05:14.844348 maca NOTICE: base.lua(393): monitor component spdm added, service: bmc.kepler.spdm
2026-09-11 16:05:14.946782 maca NOTICE: base.lua(393): monitor component iam added, service: bmc.kepler.iam
2026-09-11 16:05:15.132534 maca NOTICE: base.lua(393): monitor component trust added, service: bmc.kepler.trust
2026-09-11 16:05:15.347818 maca NOTICE: base.lua(393): monitor component frudata added, service: bmc.kepler.frudata
2026-09-11 16:05:15.497735 [:00000013] bmc_core: LAUNCH snlua ipmi_core/service/edma
2026-09-11 16:05:15.501639 [:00000014] bmc_core: LAUNCH snlua ipmi_core/service/btc
2026-09-11 16:05:15.519831 [:00000015] bmc_core: LAUNCH snlua ipmi_core/service/btc
2026-09-11 16:05:15.530562 [:00000016] bmc_core: LAUNCH snlua ipmi_core/service/bt
2026-09-11 16:05:15.593663 persistence WARNING: harbor_client.lua(386): Receiver Skynet message queue scheduling delay is 723 ms (threshold: 500 ms), service_name=bmc.kepler.persistence, path=/bmc/kepler/persistence, interface=bmc.kepler.persistence, method_name=BatchRead
2026-09-11 16:05:15.621828 maca NOTICE: base.lua(393): monitor component host_agent added, service: bmc.kepler.host_agent
2026-09-11 16:05:15.728654 persistence WARNING: harbor_client.lua(386): Receiver Skynet message queue scheduling delay is 828 ms (threshold: 500 ms), service_name=bmc.kepler.persistence, path=/bmc/kepler/persistence, interface=bmc.kepler.persistence, method_name=BatchRead
2026-09-11 16:05:15.838642 maca WARNING: harbor_client.lua(386): Receiver Skynet message queue scheduling delay is 1061 ms (threshold: 500 ms), service_name=bmc.kepler.maca, path=/bmc/kepler/MdbService, interface=bmc.kepler.Mdb, method_name=GetInterfaceOwners
2026-09-11 16:05:16.138474 persistence WARNING: harbor_client.lua(386): Receiver Skynet message queue scheduling delay is 1212 ms (threshold: 500 ms), service_name=bmc.kepler.persistence, path=/bmc/kepler/persistence, interface=bmc.kepler.persistence, method_name=BatchRead
2026-09-11 16:05:16.156566 persistence WARNING: harbor_client.lua(386): Receiver Skynet message queue scheduling delay is 984 ms (threshold: 500 ms), service_name=bmc.kepler.persistence, path=/bmc/kepler/persistence, interface=org.freedesktop.DBus.Peer, method_name=Ping
2026-09-11 16:05:16.165120 persistence WARNING: harbor_client.lua(386): Receiver Skynet message queue scheduling delay is 760 ms (threshold: 500 ms), service_name=bmc.kepler.persistence, path=/bmc/kepler/persistence, interface=org.freedesktop.DBus.Peer, method_name=Ping
2026-09-11 16:05:16.250596 persistence WARNING: harbor_client.lua(386): Receiver Skynet message queue scheduling delay is 774 ms (threshold: 500 ms), service_name=bmc.kepler.persistence, path=/bmc/kepler/persistence, interface=bmc.kepler.persistence, method_name=Save
2026-09-11 16:05:16.264129 [:00000002] energy: LAUNCH snlua bootstrap
2026-09-11 16:05:16.635507 [:00000003] energy: LAUNCH snlua launcher
2026-09-11 16:05:16.707301 [:00000002] hardware: LAUNCH snlua bootstrap
2026-09-11 16:05:16.797750 [:00000004] energy: LAUNCH snlua cdummy
2026-09-11 16:05:16.806994 persistence WARNING: harbor_client.lua(386): Receiver Skynet message queue scheduling delay is 552 ms (threshold: 500 ms), service_name=bmc.kepler.persistence, path=/bmc/kepler/persistence, interface=bmc.kepler.persistence, method_name=BatchRead
2026-09-11 16:05:16.895225 [:00000003] hardware: LAUNCH snlua launcher
2026-09-11 16:05:17.034795 [:00000005] energy: LAUNCH harbor 0 4
2026-09-11 16:05:17.069354 [:00000006] energy: LAUNCH snlua datacenterd
2026-09-11 16:05:17.123521 [:00000007] energy: LAUNCH snlua service_mgr
2026-09-11 16:05:17.150479 [:00000004] hardware: LAUNCH snlua cdummy
2026-09-11 16:05:17.216052 [:00000008] energy: LAUNCH snlua hica/subsys/energy/service/main
2026-09-11 16:05:17.281919 maca NOTICE: base.lua(393): monitor component bios added, service: bmc.kepler.bios
2026-09-11 16:05:17.402273 [:00000009] energy: LAUNCH snlua sd_bus
2026-09-11 16:05:17.509552 [:00000017] bmc_core: LAUNCH snlua ipmi_core/service/ipmb
2026-09-11 16:05:17.480751 maca NOTICE: base.lua(393): monitor component compute added, service: bmc.kepler.compute
2026-09-11 16:05:17.563279 [:00000005] hardware: LAUNCH harbor 0 4
2026-09-11 16:05:17.583474 [:00000006] hardware: LAUNCH snlua datacenterd
2026-09-11 16:05:17.592200 hwproxy NOTICE: app_objects.lua(663): scanner: Scanner_SSD_ReadVPDFail_01010201 change scan enabled to: 0
2026-09-11 16:05:17.800165 [:00000007] hardware: LAUNCH snlua service_mgr
2026-09-11 16:05:17.954815 [:00000008] hardware: LAUNCH snlua hica/subsys/hardware/service/main
2026-09-11 16:05:18.123290 persistence NOTICE: persistence_db_intf.lua(327): finish persist save for table: t_fw_inventory_objs, persist_type: protect_temporary, op_type: insert, data_size: 1101, key: Id:ActiveBMC
2026-09-11 16:05:18.257577 [:00000009] hardware: LAUNCH snlua sd_bus
2026-09-11 16:05:18.386291 persistence NOTICE: persistence_db_intf.lua(327): finish persist save for table: t_fw_inventory_objs, persist_type: protect_temporary, op_type: insert, data_size: 1095, key: Id:BackupBMC
2026-09-11 16:05:18.462066 [:0000000a] energy: LAUNCH snlua harbor
2026-09-11 16:05:18.587677 persistence NOTICE: persistence_db_intf.lua(327): finish persist save for table: t_fw_inventory_objs, persist_type: protect_temporary, op_type: insert, data_size: 1105, key: Id:AvailableBMC
2026-09-11 16:05:18.653694 [:0000000b] energy: LAUNCH snlua thermal_mgmt/service/main
2026-09-11 16:05:18.654679 [:0000000c] energy: LAUNCH snlua power_mgmt/service/main
2026-09-11 16:05:18.895249 persistence NOTICE: persistence_db_intf.lua(327): finish persist save for table: t_fw_inventory_objs, persist_type: protect_temporary, op_type: insert, data_size: 1086, key: Id:ActiveUboot
2026-09-11 16:05:19.144504 persistence NOTICE: persistence_db_intf.lua(327): finish persist save for table: t_fw_inventory_objs, persist_type: protect_temporary, op_type: insert, data_size: 1091, key: Id:BackupUboot
2026-09-11 16:05:19.250243 [:0000000a] hardware: LAUNCH snlua harbor
2026-09-11 16:05:19.496947 persistence NOTICE: persistence_db_intf.lua(327): finish persist save for table: t_fw_inventory_objs, persist_type: protect_temporary, op_type: insert, data_size: 1118, key: Id:ActiveSecureBootloader
2026-09-11 16:05:19.547754 [:00000002] hardware: KILL self
2026-09-11 16:05:19.570726 [:0000000b] hardware: LAUNCH snlua general_hardware/service/main
2026-09-11 16:05:19.581012 [:0000000c] hardware: LAUNCH snlua network_adapter/service/main
2026-09-11 16:05:19.581224 [:0000000d] hardware: LAUNCH snlua lsw/service/main
2026-09-11 16:05:19.581936 [:0000000e] hardware: LAUNCH snlua storage/service/main
2026-09-11 16:05:19.601064 [:0000000f] hardware: LAUNCH snlua chassis/service/main
2026-09-11 16:05:19.828737 maca NOTICE: base.lua(393): monitor component sensor added, service: bmc.kepler.sensor
2026-09-11 16:05:20.220334 [:00000018] bmc_core: LAUNCH snlua bmc_network/service/fusionpod
2026-09-11 16:05:20.232640 [:0000000e] hardware: lua loader error : error loading module 'storage.client' from file '/opt/bmc/apps/storage/client.lua':  /opt/bmc/apps/storage/client.lua:1: unexpected symbol stack traceback:  [C]: at 0xffffafc76138  [C]: in function 'require'  ./opt/bmc/apps/storage/lualib/storage_app.lua:11: in main chunk  [C]: in function 'require'  ./opt/bmc/apps/storage/service/main.lua:16: in main chunk  /opt/bmc/skynet/lualib/loader.lua: in function </opt/bmc/skynet/lualib/loader.lua:0>
2026-09-11 16:05:20.251509 [:0000000e] hardware: KILL self
2026-09-11 16:05:20.391411 [:0000000b] energy: lua loader error : error loading module 'fan_object' from file '/opt/bmc/apps/thermal_mgmt/lualib/fan_object.lua':  /opt/bmc/apps/thermal_mgmt/lualib/fan_object.lua: cannot load malformed bytecode stack traceback:  [C]: at 0xffff9af83138  [C]: in function 'require'  ./opt/bmc/apps/thermal_mgmt/lualib/fan_service.lua:14: in main chunk  [C]: in function 'require'  ./opt/bmc/apps/thermal_mgmt/lualib/thermal_mgmt_app.lua:14: in main chunk  [C]: in function 'require'  ./opt/bmc/apps/thermal_mgmt/service/main.lua:14: in main chunk  /opt/bmc/skynet/lualib/loader.lua: in function </opt/bmc/skynet/lualib/loader.lua:0>
2026-09-11 16:05:20.391625 [:0000000b] energy: KILL self
2026-09-11 16:05:20.391760 [:0000000c] energy: KILL self
2026-09-11 16:05:20.404321 [:0000000f] hardware: lua loader error : error loading module 'chassis.service' from file '/opt/bmc/apps/chassis/service.lua':  /opt/bmc/apps/chassis/service.lua:1: unexpected symbol stack traceback:  [C]: at 0xffffafc76138  [C]: in function 'require'  ./opt/bmc/apps/chassis/lualib/chassis_app.lua:20: in main chunk  [C]: in function 'require'  ./opt/bmc/apps/chassis/service/main.lua:15: in main chunk  /opt/bmc/skynet/lualib/loader.lua: in function </opt/bmc/skynet/lualib/loader.lua:0>
2026-09-11 16:05:20.404535 [:0000000f] hardware: KILL self
2026-09-11 16:05:20.703410 persistence NOTICE: persistence_db_intf.lua(327): finish persist save for table: t_fw_inventory_objs, persist_type: protect_temporary, op_type: insert, data_size: 1123, key: Id:BackupSecureBootloader
2026-09-11 16:05:20.823070 [:00000002] om_priv: LAUNCH snlua bootstrap
2026-09-11 16:05:20.860813 [:00000003] om_priv: LAUNCH snlua launcher
2026-09-11 16:05:20.911788 [:00000004] om_priv: LAUNCH snlua cdummy
2026-09-11 16:05:20.945420 [:00000005] om_priv: LAUNCH harbor 0 4
2026-09-11 16:05:20.952404 [:00000006] om_priv: LAUNCH snlua datacenterd
2026-09-11 16:05:20.982876 [:00000007] om_priv: LAUNCH snlua service_mgr
2026-09-11 16:05:21.023493 [:00000008] om_priv: LAUNCH snlua hica/subsys/om_priv/service/main
2026-09-11 16:05:21.074159 [:00000009] om_priv: LAUNCH snlua sd_bus
2026-09-11 16:05:21.105355 [:0000000d] hardware: KILL self
2026-09-11 16:05:21.723943 [:0000000a] om_priv: LAUNCH snlua harbor
2026-09-11 16:05:21.774860 [:00000002] om_priv: KILL self
2026-09-11 16:05:21.784716 [:0000000b] om_priv: LAUNCH snlua nsm/service/main
2026-09-11 16:05:22.211727 [:0000000c] om_priv: LAUNCH snlua ums/service/main
2026-09-11 16:05:22.212912 [:0000000d] om_priv: LAUNCH snlua oms/service/main
2026-09-11 16:05:22.296186 [:0000000e] om_priv: LAUNCH snlua observability/service/main
2026-09-11 16:05:30.587338 [:00000002] om: LAUNCH snlua bootstrap
2026-09-11 16:05:30.627258 [:00000003] om: LAUNCH snlua launcher
2026-09-11 16:05:30.667713 [:00000004] om: LAUNCH snlua cdummy
2026-09-11 16:05:30.697983 [:00000005] om: LAUNCH harbor 0 4
2026-09-11 16:05:30.708125 [:00000006] om: LAUNCH snlua datacenterd
2026-09-11 16:05:30.738449 [:00000007] om: LAUNCH snlua service_mgr
2026-09-11 16:05:30.778848 [:00000008] om: LAUNCH snlua service_provider
2026-09-11 16:05:30.819410 [:00000009] om: LAUNCH snlua service_cell ltls_holder
2026-09-11 16:05:30.870052 [:0000000a] om: LAUNCH snlua hica/subsys/om/service/main
2026-09-11 16:05:30.920553 [:0000000b] om: LAUNCH snlua sd_bus
2026-09-11 16:05:31.547087 [:00000002] bmc_core: KILL self
2026-09-11 16:05:31.555274 [:00000019] bmc_core: LAUNCH snlua manufacture/service/main
2026-09-11 16:05:31.568213 [:0000000c] om: LAUNCH snlua harbor
2026-09-11 16:05:31.624673 [:00000002] om: KILL self
2026-09-11 16:05:31.629574 [:0000000d] om: LAUNCH snlua ddns/service/main
2026-09-11 16:05:31.631348 [:0000000e] om: LAUNCH snlua remote_console/service/main
2026-09-11 16:05:31.993239 [:00000002] ras: KILL self
2026-09-11 16:05:31.997164 [:0000000e] ras: LAUNCH snlua ai_engine/service/main
2026-09-11 16:05:31.997809 [:0000000f] ras: LAUNCH snlua fault_diagnosis/service/main
2026-09-11 16:05:32.014844 [:00000010] ras: LAUNCH snlua metric_analyzer/service/main
2026-09-11 16:05:32.020223 [:0000000f] om: LAUNCH snlua rmcpd/service/main
2026-09-11 16:05:32.217483 [:00000010] om: LAUNCH snlua license/service/main
2026-09-11 16:05:32.218614 [:00000012] om: LAUNCH snlua event_policy/service/main
2026-09-11 16:05:32.228098 [:00000013] om: LAUNCH snlua product_mgmt/service/main
2026-09-11 16:05:32.339050 [:00000014] om: LAUNCH snlua usb_entry/service/main
2026-09-11 16:05:33.500691 [:00000015] om: LAUNCH snlua account/service/main
2026-09-11 16:05:33.509051 [:00000016] om: LAUNCH snlua vnc_proxy/service/main
2026-09-11 16:05:33.644071 [:00000002] energy: KILL self
2026-09-11 16:05:33.649497 [:0000000d] energy: LAUNCH snlua cooling/service/main
2026-09-11 16:05:33.650222 [:0000000e] energy: LAUNCH snlua power_strategy/service/main
2026-09-11 16:05:45.805097 [:00000002] interface: LAUNCH snlua bootstrap
2026-09-11 16:05:45.866721 [:00000003] interface: LAUNCH snlua launcher
2026-09-11 16:05:45.917298 [:00000004] interface: LAUNCH snlua cdummy
2026-09-11 16:05:45.951607 [:00000005] interface: LAUNCH harbor 0 4
2026-09-11 16:05:45.957732 [:00000006] interface: LAUNCH snlua datacenterd
2026-09-11 16:05:45.998256 [:00000007] interface: LAUNCH snlua service_mgr
2026-09-11 16:05:46.048722 [:00000008] interface: LAUNCH snlua hica/subsys/interface/service/main
2026-09-11 16:05:46.129582 [:00000009] interface: LAUNCH snlua sd_bus
2026-09-11 16:05:46.797815 [:0000000a] interface: LAUNCH snlua harbor
2026-09-11 16:05:46.864750 [:00000002] interface: KILL self
2026-09-11 16:05:46.869654 [:0000000b] interface: LAUNCH snlua hica/subsys/interface/service/redfish
2026-09-11 16:05:46.870438 [:0000000c] interface: LAUNCH snlua hica/subsys/interface/service/web_backend
2026-09-11 16:05:46.879704 [:0000000d] interface: LAUNCH snlua dcmid/service/main
2026-09-11 16:05:46.920375 [:0000000e] interface: LAUNCH snlua web_backend/service/portal_agent
2026-09-11 16:05:46.921624 [:0000000f] interface: LAUNCH snlua redfish/service/portal_agent
2026-09-11 16:05:53.203374 [:00000002] security: LAUNCH snlua bootstrap
2026-09-11 16:05:53.253047 [:00000003] security: LAUNCH snlua launcher
2026-09-11 16:05:53.283400 [:00000004] security: LAUNCH snlua cdummy
2026-09-11 16:05:53.312564 [:00000005] security: LAUNCH harbor 0 4
2026-09-11 16:05:53.323892 [:00000006] security: LAUNCH snlua datacenterd
2026-09-11 16:05:53.354245 [:00000007] security: LAUNCH snlua service_mgr
2026-09-11 16:05:53.384636 [:00000008] security: LAUNCH snlua hica/subsys/security/service/main
2026-09-11 16:05:53.435266 [:00000009] security: LAUNCH snlua sd_bus
2026-09-11 16:05:54.072978 [:0000000a] security: LAUNCH snlua harbor
2026-09-11 16:05:54.124804 [:00000002] security: KILL self
2026-09-11 16:05:54.128091 [:0000000b] security: LAUNCH snlua certificate/service/main
2026-09-11 16:05:54.493041 [:0000000c] security: LAUNCH snlua trust/service/main
2026-09-11 16:05:54.494092 [:0000000d] security: LAUNCH snlua iam/service/main
2026-09-11 16:05:54.605709 [:0000000e] security: LAUNCH snlua spdm/service/main
2026-09-11 16:06:10.408262 [:00000000] framework: A message from [ :00000000 ] to [ :0000001b ] maybe in an endless loop (version = 2175)
2026-09-11 16:06:10.408349 [:00000000] framework: Printing Lua stack trace for service :0000001b
2026-09-11 16:06:10.408383 [:0000001b] framework: recv a signal 2
2026-09-11 16:06:10.408430 [:00000000] framework: A message from [ :00000000 ] to [ :0000000a ] maybe in an endless loop (version = 2651)
2026-09-11 16:06:10.408464 [:00000000] framework: Printing Lua stack trace for service :0000000a
2026-09-11 16:06:10.408494 [:0000000a] framework: recv a signal 2
2026-09-11 16:06:10.408540 [:00000000] framework: A message from [ :00000001 ] to [ :0000000b ] maybe in an endless loop (version = 2083)
2026-09-11 16:06:10.408581 [:00000000] framework: Printing Lua stack trace for service :0000000b
2026-09-11 16:06:10.408610 [:0000000b] framework: recv a signal 2
2026-09-11 16:06:10.408653 [:00000000] framework: A message from [ :00000000 ] to [ :00000014 ] maybe in an endless loop (version = 3849)
2026-09-11 16:06:10.408686 [:00000000] framework: Printing Lua stack trace for service :00000014
2026-09-11 16:06:10.408711 [:00000014] framework: recv a signal 2
2026-09-11 16:06:10.408752 [:00000000] framework: A message from [ :00000014 ] to [ :0000000f ] maybe in an endless loop (version = 3899)
2026-09-11 16:06:10.408789 [:00000000] framework: Printing Lua stack trace for service :0000000f
2026-09-11 16:06:10.408817 [:0000000f] framework: recv a signal 2
2026-09-11 16:06:10.408861 [:00000000] framework: A message from [ :00000000 ] to [ :00000019 ] maybe in an endless loop (version = 5105)
2026-09-11 16:06:10.408893 [:00000000] framework: Printing Lua stack trace for service :00000019
2026-09-11 16:06:10.408920 [:00000019] framework: recv a signal 2
2026-09-11 16:06:10.408961 [:00000000] framework: A message from [ :00000000 ] to [ :00000023 ] maybe in an endless loop (version = 6485)
2026-09-11 16:06:10.408994 [:00000000] framework: Printing Lua stack trace for service :00000023
2026-09-11 16:06:10.409021 [:00000023] framework: recv a signal 2
2026-09-11 16:06:10.409061 [:00000000] framework: A message from [ :00000000 ] to [ :00000013 ] maybe in an endless loop (version = 2485)
2026-09-11 16:06:10.409093 [:00000000] framework: Printing Lua stack trace for service :00000013
2026-09-11 16:06:10.409123 [:00000013] framework: recv a signal 2
2026-09-11 16:06:10.481216 [:00000000] bmc_core: A message from [ :00000001 ] to [ :00000012 ] maybe in an endless loop (version = 83)
2026-09-11 16:06:10.481291 [:00000000] bmc_core: Printing Lua stack trace for service :00000012
2026-09-11 16:06:10.481326 [:00000012] bmc_core: recv a signal 2
2026-09-11 16:06:10.481369 [:00000000] bmc_core: A message from [ :00000000 ] to [ :0000000e ] maybe in an endless loop (version = 115)
2026-09-11 16:06:10.481410 [:00000000] bmc_core: Printing Lua stack trace for service :0000000e
2026-09-11 16:06:10.481439 [:0000000e] bmc_core: recv a signal 2
2026-09-11 16:06:10.481480 [:00000000] bmc_core: A message from [ :00000000 ] to [ :00000011 ] maybe in an endless loop (version = 531)
2026-09-11 16:06:10.481520 [:00000000] bmc_core: Printing Lua stack trace for service :00000011
2026-09-11 16:06:10.481547 [:00000011] bmc_core: recv a signal 2
2026-09-11 16:06:10.481589 [:00000000] bmc_core: A message from [ :0000000a ] to [ :00000019 ] maybe in an endless loop (version = 265)
2026-09-11 16:06:10.481620 [:00000000] bmc_core: Printing Lua stack trace for service :00000019
2026-09-11 16:06:10.481647 [:00000019] bmc_core: recv a signal 2
2026-09-11 16:06:10.481687 [:00000000] bmc_core: A message from [ :0000000c ] to [ :0000000c ] maybe in an endless loop (version = 127)
2026-09-11 16:06:10.481727 [:00000000] bmc_core: Printing Lua stack trace for service :0000000c
2026-09-11 16:06:10.481755 [:0000000c] bmc_core: recv a signal 2
2026-09-11 16:06:10.751264 [:00000000] alarm: A message from [ :0000000a ] to [ :0000000c ] maybe in an endless loop (version = 67)
2026-09-11 16:06:10.751335 [:00000000] alarm: Printing Lua stack trace for service :0000000c
2026-09-11 16:06:10.751369 [:0000000c] alarm: recv a signal 2
2026-09-11 16:06:11.279948 [:00000000] ras: A message from [ :0000000a ] to [ :0000000f ] maybe in an endless loop (version = 249)
2026-09-11 16:06:11.280028 [:00000000] ras: Printing Lua stack trace for service :0000000f
2026-09-11 16:06:11.280453 [:0000000f] ras: recv a signal 2
2026-09-11 16:06:11.280515 [:00000000] ras: A message from [ :0000000a ] to [ :0000000e ] maybe in an endless loop (version = 179)
2026-09-11 16:06:11.280550 [:00000000] ras: Printing Lua stack trace for service :0000000e
2026-09-11 16:06:11.280581 [:0000000e] ras: recv a signal 2
2026-09-11 16:06:16.333105 [:00000000] energy: A message from [ :00000000 ] to [ :0000000a ] maybe in an endless loop (version = 111)
2026-09-11 16:06:16.333564 [:00000000] energy: Printing Lua stack trace for service :0000000a
2026-09-11 16:06:16.334190 [:0000000a] energy: recv a signal 2
2026-09-11 16:06:16.715154 [:00000000] hardware: A message from [ :00000000 ] to [ :0000000a ] maybe in an endless loop (version = 27)
2026-09-11 16:06:16.715221 [:00000000] hardware: Printing Lua stack trace for service :0000000a
2026-09-11 16:06:16.715368 [:0000000a] hardware: recv a signal 2
2026-09-11 16:06:20.830826 [:00000000] om_priv: A message from [ :00000000 ] to [ :0000000a ] maybe in an endless loop (version = 127)
2026-09-11 16:06:20.830901 [:00000000] om_priv: Printing Lua stack trace for service :0000000a
2026-09-11 16:06:20.830936 [:0000000a] om_priv: recv a signal 2
2026-09-11 16:06:21.290621 [:00000012] bmc_core: === Lua Stack Trace (endless loop detected) ===
2026-09-11 16:06:21.290838 [:00000012] bmc_core: stack traceback:  ./opt/bmc/libmc/lualib/dbus/bus_base.lua:166: in function 'emit_properties_changed'  ./opt/bmc/libmc/lualib/sd_bus/init.lua:1834: in function 'emit_properties_changed'  ./opt/bmc/libmc/lualib/sd_bus/object.lua:564: in function <./opt/bmc/libmc/lualib/sd_bus/object.lua:563>  [C]: in function 'pcall'  ./opt/bmc/libmc/lualib/sd_bus/object.lua:563: in function 'emit_dbus_properties_changed'  ./opt/bmc/libmc/lualib/sd_bus/object.lua:551: in function <./opt/bmc/libmc/lualib/sd_bus/object.lua:550>  [builtin#21]: at 0xffffb537ed28  [C]: in function 'pcall'  ./opt/bmc/libmc/lualib/mc/context.lua:212: in function 'with_context'  ./opt/bmc/libmc/lualib/mc/app_preloader.lua:97: in function ''  /opt/bmc/skynet/lualib/skynet.lua: in function </opt/bmc/skynet/lualib/skynet.lua:0>
2026-09-11 16:06:21.290873 [:00000012] bmc_core: === End of Lua Stack Trace ===
2026-09-11 16:06:21.387064 framework ERROR: sysv_rwlock_embedded.c(161): reader_wait_until_no_writer: TIMEOUT after 60005 ms
2026-09-11 16:06:21.387176 framework ERROR: shmlock.c(193): LOCK_TIMEOUT: READ lock request timeout on object=1 requester=[logical_proc=1, actual_pid=2392, service=26, incarnation=1]
2026-09-11 16:06:21.387212 framework ERROR: shmlock.c(222): LOCK_TIMEOUT: read holder #1=[logical_proc=2, actual_pid=2665, service=15]
2026-09-11 16:06:21.388620 hwproxy ERROR: shared_object.lua(170): emit properties changed failed, path: /bmc/kepler/Scanner/Scanner_NicLm75_010105, interface: bmc.kepler.Scanner, properties: ["Value"], err: Failed to acquire read lock: Lock timeout
2026-09-11 16:06:21.388778 [:00000019] framework: === Lua Stack Trace (endless loop detected) ===
2026-09-11 16:06:21.388899 [:00000019] framework: stack traceback:  ./opt/bmc/apps/hwproxy/lualib/shared_object.lua:169: in function ''  /opt/bmc/skynet/lualib/skynet.lua: in function </opt/bmc/skynet/lualib/skynet.lua:0>  [builtin#21]: at 0xffff94179d28  [C]: in function 'pcall'  ./opt/bmc/libmc/lualib/mc/context.lua:212: in function 'with_context'  ./opt/bmc/libmc/lualib/mc/app_preloader.lua:97: in function ''  /opt/bmc/skynet/lualib/skynet.lua: in function </opt/bmc/skynet/lualib/skynet.lua:0>
2026-09-11 16:06:21.389641 [:00000019] framework: === End of Lua Stack Trace ===
2026-09-11 16:06:21.406656 framework ERROR: sysv_rwlock_embedded.c(161): reader_wait_until_no_writer: TIMEOUT after 60005 ms
2026-09-11 16:06:21.406744 framework ERROR: shmlock.c(193): LOCK_TIMEOUT: READ lock request timeout on object=1 requester=[logical_proc=1, actual_pid=2392, service=9, incarnation=1]
2026-09-11 16:06:21.406778 framework ERROR: shmlock.c(222): LOCK_TIMEOUT: read holder #1=[logical_proc=2, actual_pid=2665, service=15]
2026-09-11 16:06:21.414280 [:0000000b] framework: === Lua Stack Trace (endless loop detected) ===
2026-09-11 16:06:21.414428 [:0000000b] framework: === End of Lua Stack Trace ===
2026-09-11 16:06:21.487007 framework ERROR: sysv_rwlock_embedded.c(161): reader_wait_until_no_writer: TIMEOUT after 60005 ms
2026-09-11 16:06:21.487134 framework ERROR: shmlock.c(193): LOCK_TIMEOUT: READ lock request timeout on object=1 requester=[logical_proc=1, actual_pid=2392, service=14, incarnation=1]
2026-09-11 16:06:21.487252 framework ERROR: shmlock.c(222): LOCK_TIMEOUT: read holder #1=[logical_proc=2, actual_pid=2665, service=15]
2026-09-11 16:06:21.487804 [:0000000f] framework: === Lua Stack Trace (endless loop detected) ===
2026-09-11 16:06:21.488148 [:0000000f] framework: stack traceback:  ./opt/bmc/libmc/lualib/mc/context.lua:212: in function 'with_context'  ./opt/bmc/libmc/lualib/mc/app_preloader.lua:97: in function ''  /opt/bmc/skynet/lualib/skynet.lua: in function </opt/bmc/skynet/lualib/skynet.lua:0>
2026-09-11 16:06:21.488210 [:0000000f] framework: === End of Lua Stack Trace ===
2026-09-11 16:06:21.488536 hwproxy ERROR: app_preloader.lua(71): co[thread: 0x75308e3f7148] abnormal exit, err: Failed to acquire read lock: Lock timeout, traceback: stack traceback:  ./opt/bmc/libmc/lualib/mc/app_preloader.lua:71: in function ''  /opt/bmc/skynet/lualib/skynet.lua: in function </opt/bmc/skynet/lualib/skynet.lua:0>
2026-09-11 16:06:21.489418 [:0000000f] framework: lua call [14 to :f : 676 msgsz = 10] error : [31m/opt/bmc/skynet/lualib/skynet.lua:0: ./opt/bmc/libmc/lualib/mc/app_preloader.lua:74: Failed to acquire read lock: Lock timeout stack traceback:  [C]: in function 'error'  ./opt/bmc/libmc/lualib/mc/app_preloader.lua:74: in function ''  /opt/bmc/skynet/lualib/skynet.lua: in function </opt/bmc/skynet/lualib/skynet.lua:0> stack traceback:  [C]: in function 'error'  /opt/bmc/lualib/compat53/module.lua:176: in function ''  /opt/bmc/skynet/lualib/skynet.lua: in function </opt/bmc/skynet/lualib/skynet.lua:0>[0m
2026-09-11 16:06:21.497461 framework ERROR: sysv_rwlock_embedded.c(192): writer_wait_until_can_write: TIMEOUT after 60005 ms
2026-09-11 16:06:21.497569 framework ERROR: shmlock.c(193): LOCK_TIMEOUT: WRITE lock request timeout on object=1 requester=[logical_proc=1, actual_pid=2392, service=8, incarnation=1]
2026-09-11 16:06:21.497600 framework ERROR: shmlock.c(222): LOCK_TIMEOUT: read holder #1=[logical_proc=2, actual_pid=2665, service=15]
2026-09-11 16:06:21.502551 framework ERROR: l_matchs.h(88): D-Bus error: match rule basic_string::_S_construct null not valid
2026-09-11 16:06:21.504465 [:0000000a] framework: === Lua Stack Trace (endless loop detected) ===
2026-09-11 16:06:21.504557 [:0000000a] framework: stack traceback:  ./opt/bmc/libmc/lualib/dbus/tree.lua:235: in function <./opt/bmc/libmc/lualib/dbus/tree.lua:234>  [C]: at 0xffff87f2660c  [C]: at 0xffff87f1dfa4
2026-09-11 16:06:21.504611 [:0000000a] framework: === End of Lua Stack Trace ===
2026-09-11 16:06:21.527558 framework ERROR: sysv_rwlock_embedded.c(161): reader_wait_until_no_writer: TIMEOUT after 60005 ms
2026-09-11 16:06:21.527640 framework ERROR: shmlock.c(193): LOCK_TIMEOUT: READ lock request timeout on object=1 requester=[logical_proc=1, actual_pid=2392, service=11, incarnation=1]
2026-09-11 16:06:21.527675 framework ERROR: shmlock.c(222): LOCK_TIMEOUT: read holder #1=[logical_proc=2, actual_pid=2665, service=15]
2026-09-11 16:06:21.528586 maca ERROR: app_preloader.lua(71): co[thread: 0x75302c4a1340] abnormal exit, err: Failed to acquire read lock: Lock timeout, traceback: stack traceback:  ./opt/bmc/libmc/lualib/mc/app_preloader.lua:71: in function ''  /opt/bmc/skynet/lualib/skynet.lua: in function </opt/bmc/skynet/lualib/skynet.lua:0>
2026-09-11 16:06:21.668909 framework ERROR: sysv_rwlock_embedded.c(161): reader_wait_until_no_writer: TIMEOUT after 60005 ms
2026-09-11 16:06:21.668986 framework ERROR: shmlock.c(193): LOCK_TIMEOUT: READ lock request timeout on object=1 requester=[logical_proc=1, actual_pid=2392, service=29, incarnation=1]
2026-09-11 16:06:21.669017 framework ERROR: shmlock.c(222): LOCK_TIMEOUT: read holder #1=[logical_proc=2, actual_pid=2665, service=15]
2026-09-11 16:06:21.670362 hwproxy ERROR: shared_object.lua(170): emit properties changed failed, path: /bmc/kepler/Scanner/Scanner_Lm75_Outlet_0101, interface: bmc.kepler.Scanner, properties: ["Value"], err: Failed to acquire read lock: Lock timeout
2026-09-11 16:06:21.677029 [:0000001b] framework: === Lua Stack Trace (endless loop detected) ===
2026-09-11 16:06:21.677693 [:0000001b] framework: stack traceback:  ./opt/bmc/apps/hwproxy/lualib/shared_object.lua:169: in function ''  /opt/bmc/skynet/lualib/skynet.lua: in function </opt/bmc/skynet/lualib/skynet.lua:0>  [builtin#21]: at 0xffff94179d28  [C]: in function 'pcall'  ./opt/bmc/libmc/lualib/mc/context.lua:212: in function 'with_context'  ./opt/bmc/libmc/lualib/mc/app_preloader.lua:97: in function ''  /opt/bmc/skynet/lualib/skynet.lua: in function </opt/bmc/skynet/lualib/skynet.lua:0>
2026-09-11 16:06:21.678127 [:0000001b] framework: === End of Lua Stack Trace ===
2026-09-11 16:06:21.875545 [:0000000e] bmc_core: === Lua Stack Trace (endless loop detected) ===
2026-09-11 16:06:21.876031 [:0000000e] bmc_core: === End of Lua Stack Trace ===
2026-09-11 16:06:23.732128 framework ERROR: sysv_rwlock_embedded.c(161): reader_wait_until_no_writer: TIMEOUT after 60005 ms
2026-09-11 16:06:23.732214 framework ERROR: shmlock.c(193): LOCK_TIMEOUT: READ lock request timeout on object=1 requester=[logical_proc=1, actual_pid=2392, service=20, incarnation=1]
2026-09-11 16:06:23.732297 framework ERROR: shmlock.c(222): LOCK_TIMEOUT: read holder #1=[logical_proc=2, actual_pid=2665, service=15]
2026-09-11 16:06:23.733053 hwproxy ERROR: shared_object.lua(170): emit properties changed failed, path: /bmc/kepler/Scanner/Scanner_CpuBrdPresenceMntr_0101, interface: bmc.kepler.Scanner.Aggregate, properties: ["AggregateStatus"], err: Failed to acquire read lock: Lock timeout
2026-09-11 16:06:23.738555 [:00000013] framework: === Lua Stack Trace (endless loop detected) ===
2026-09-11 16:06:23.738710 [:00000013] framework: stack traceback:  ./opt/bmc/apps/hwproxy/lualib/shared_object.lua:169: in function ''  /opt/bmc/skynet/lualib/skynet.lua: in function </opt/bmc/skynet/lualib/skynet.lua:0>  [builtin#21]: at 0xffff94179d28  [C]: in function 'pcall'  ./opt/bmc/libmc/lualib/mc/context.lua:212: in function 'with_context'  ./opt/bmc/libmc/lualib/mc/app_preloader.lua:97: in function ''  /opt/bmc/skynet/lualib/skynet.lua: in function </opt/bmc/skynet/lualib/skynet.lua:0>
2026-09-11 16:06:23.738747 [:00000013] framework: === End of Lua Stack Trace ===
2026-09-11 16:06:26.520761 framework ERROR: sysv_rwlock_embedded.c(161): reader_wait_until_no_writer: TIMEOUT after 60005 ms
2026-09-11 16:06:26.520834 framework ERROR: shmlock.c(193): LOCK_TIMEOUT: READ lock request timeout on object=1 requester=[logical_proc=1, actual_pid=2392, service=21, incarnation=1]
2026-09-11 16:06:26.520864 framework ERROR: shmlock.c(222): LOCK_TIMEOUT: read holder #1=[logical_proc=2, actual_pid=2665, service=15]
2026-09-11 16:06:26.521685 hwproxy ERROR: shared_object.lua(170): emit properties changed failed, path: /bmc/kepler/Scanner/Scanner_TPMPresence_010101, interface: bmc.kepler.Scanner.Aggregate, properties: ["AggregateStatus"], err: Failed to acquire read lock: Lock timeout
2026-09-11 16:06:26.521826 [:00000014] framework: === Lua Stack Trace (endless loop detected) ===
2026-09-11 16:06:26.522002 [:00000014] framework: stack traceback:  ./opt/bmc/apps/hwproxy/lualib/shared_object.lua:169: in function ''  /opt/bmc/skynet/lualib/skynet.lua: in function </opt/bmc/skynet/lualib/skynet.lua:0>  [builtin#21]: at 0xffff94179d28  [C]: in function 'pcall'  ./opt/bmc/libmc/lualib/mc/context.lua:212: in function 'with_context'  ./opt/bmc/libmc/lualib/mc/app_preloader.lua:97: in function ''  /opt/bmc/skynet/lualib/skynet.lua: in function </opt/bmc/skynet/lualib/skynet.lua:0>
2026-09-11 16:06:26.522067 [:00000014] framework: === End of Lua Stack Trace ===
2026-09-11 16:06:30.608442 [:00000000] om: A message from [ :00000000 ] to [ :0000000c ] maybe in an endless loop (version = 167)
2026-09-11 16:06:30.608513 [:00000000] om: Printing Lua stack trace for service :0000000c
2026-09-11 16:06:30.608543 [:0000000c] om: recv a signal 2
2026-09-11 16:06:32.696796 framework ERROR: sysv_rwlock_embedded.c(192): writer_wait_until_can_write: TIMEOUT after 60005 ms
2026-09-11 16:06:32.696888 framework ERROR: shmlock.c(193): LOCK_TIMEOUT: WRITE lock request timeout on object=1 requester=[logical_proc=1, actual_pid=2392, service=36, incarnation=1]
2026-09-11 16:06:32.696922 framework ERROR: shmlock.c(222): LOCK_TIMEOUT: read holder #1=[logical_proc=2, actual_pid=2665, service=15]
2026-09-11 16:06:32.697973 mctpd ERROR: app_preloader.lua(71): co[thread: 0x75308dfa40b0] abnormal exit, err: Failed to acquire write lock: Lock timeout, traceback: stack traceback:  ./opt/bmc/libmc/lualib/mc/app_preloader.lua:71: in function ''  /opt/bmc/skynet/lualib/skynet.lua: in function </opt/bmc/skynet/lualib/skynet.lua:0>
2026-09-11 16:06:32.698752 [:00000023] framework: === Lua Stack Trace (endless loop detected) ===
2026-09-11 16:06:32.699136 [:00000023] framework: stack traceback:  ./opt/bmc/libmc/lualib/mc/context.lua:212: in function 'with_context'  ./opt/bmc/libmc/lualib/mc/app_preloader.lua:97: in function ''  /opt/bmc/skynet/lualib/skynet.lua: in function </opt/bmc/skynet/lualib/skynet.lua:0>
2026-09-11 16:06:32.699379 [:00000023] framework: === End of Lua Stack Trace ===
2026-09-11 16:06:32.699553 [:00000023] framework: lua call [0 to :23 : 20 msgsz = 0] error : [31m/opt/bmc/skynet/lualib/skynet.lua:0: ./opt/bmc/libmc/lualib/mc/app_preloader.lua:74: Failed to acquire write lock: Lock timeout stack traceback:  [C]: in function 'error'  ./opt/bmc/libmc/lualib/mc/app_preloader.lua:74: in function ''  /opt/bmc/skynet/lualib/skynet.lua: in function </opt/bmc/skynet/lualib/skynet.lua:0> stack traceback:  [C]: in function 'error'  /opt/bmc/lualib/compat53/module.lua:176: in function ''  /opt/bmc/skynet/lualib/skynet.lua: in function </opt/bmc/skynet/lualib/skynet.lua:0>[0m
2026-09-11 16:06:40.414264 [:00000000] framework: A message from [ :00000000 ] to [ :0000001b ] maybe in an endless loop (version = 2175)
2026-09-11 16:06:40.414356 [:00000000] framework: Printing Lua stack trace for service :0000001b
2026-09-11 16:06:40.414392 [:0000001b] framework: recv a signal 2
2026-09-11 16:06:40.414435 [:00000000] framework: A message from [ :00000001 ] to [ :0000000b ] maybe in an endless loop (version = 2083)
2026-09-11 16:06:40.416408 [:00000000] framework: Printing Lua stack trace for service :0000000b
2026-09-11 16:06:40.416479 [:0000000b] framework: recv a signal 2
2026-09-11 16:06:40.417419 [:00000000] framework: A message from [ :00000000 ] to [ :00000013 ] maybe in an endless loop (version = 2485)
2026-09-11 16:06:40.418133 [:00000013] framework: recv a signal 2
2026-09-11 16:06:40.481208 [:00000000] bmc_core: A message from [ :00000000 ] to [ :00000010 ] maybe in an endless loop (version = 309)
2026-09-11 16:06:40.481301 [:00000000] bmc_core: Printing Lua stack trace for service :00000010
2026-09-11 16:06:40.481334 [:00000010] bmc_core: recv a signal 2
2026-09-11 16:06:40.481377 [:00000000] bmc_core: A message from [ :00000000 ] to [ :00000011 ] maybe in an endless loop (version = 531)
2026-09-11 16:06:40.481410 [:00000000] bmc_core: Printing Lua stack trace for service :00000011
2026-09-11 16:06:40.481438 [:00000011] bmc_core: recv a signal 2
2026-09-11 16:06:40.481479 [:00000000] bmc_core: A message from [ :0000000a ] to [ :00000019 ] maybe in an endless loop (version = 265)
2026-09-11 16:06:40.481514 [:00000000] bmc_core: Printing Lua stack trace for service :00000019
2026-09-11 16:06:40.481543 [:00000019] bmc_core: recv a signal 2
2026-09-11 16:06:40.481583 [:00000000] bmc_core: A message from [ :0000000c ] to [ :0000000c ] maybe in an endless loop (version = 127)
2026-09-11 16:06:40.481616 [:00000000] bmc_core: Printing Lua stack trace for service :0000000c
2026-09-11 16:06:40.481643 [:0000000c] bmc_core: recv a signal 2
2026-09-11 16:06:40.752794 [:00000000] alarm: A message from [ :0000000a ] to [ :0000000c ] maybe in an endless loop (version = 67)
2026-09-11 16:06:40.752867 [:00000000] alarm: Printing Lua stack trace for service :0000000c
2026-09-11 16:06:40.752900 [:0000000c] alarm: recv a signal 2
2026-09-11 16:06:41.439996 [:00000000] ras: A message from [ :0000000a ] to [ :0000000f ] maybe in an endless loop (version = 249)
2026-09-11 16:06:41.440064 [:00000000] ras: Printing Lua stack trace for service :0000000f
2026-09-11 16:06:41.440619 [:0000000f] ras: recv a signal 2
2026-09-11 16:06:41.440691 [:00000000] ras: A message from [ :0000000a ] to [ :0000000e ] maybe in an endless loop (version = 179)
2026-09-11 16:06:41.440730 [:00000000] ras: Printing Lua stack trace for service :0000000e
2026-09-11 16:06:41.440760 [:0000000e] ras: recv a signal 2
2026-09-11 16:06:45.811873 [:00000000] interface: A message from [ :00000000 ] to [ :0000000a ] maybe in an endless loop (version = 55)
2026-09-11 16:06:45.811948 [:00000000] interface: Printing Lua stack trace for service :0000000a
2026-09-11 16:06:45.811982 [:0000000a] interface: recv a signal 2
2026-09-11 16:06:46.342451 [:00000000] energy: A message from [ :00000000 ] to [ :0000000a ] maybe in an endless loop (version = 111)
2026-09-11 16:06:46.342527 [:00000000] energy: Printing Lua stack trace for service :0000000a
2026-09-11 16:06:46.342562 [:0000000a] energy: recv a signal 2
2026-09-11 16:06:46.717303 [:00000000] hardware: A message from [ :00000000 ] to [ :0000000a ] maybe in an endless loop (version = 27)
2026-09-11 16:06:46.717367 [:00000000] hardware: Printing Lua stack trace for service :0000000a
2026-09-11 16:06:46.717404 [:0000000a] hardware: recv a signal 2
2026-09-11 16:06:47.283171 [:00000010] bmc_core: === Lua Stack Trace (endless loop detected) ===
2026-09-11 16:06:47.284410 [:00000010] bmc_core: === End of Lua Stack Trace ===
2026-09-11 16:06:50.838749 [:00000000] om_priv: A message from [ :00000000 ] to [ :0000000a ] maybe in an endless loop (version = 127)
2026-09-11 16:06:50.838819 [:00000000] om_priv: Printing Lua stack trace for service :0000000a
2026-09-11 16:06:50.838849 [:0000000a] om_priv: recv a signal 2
2026-09-11 16:06:53.215602 [:00000000] security: A message from [ :00000000 ] to [ :0000000a ] maybe in an endless loop (version = 111)
2026-09-11 16:06:53.215674 [:00000000] security: Printing Lua stack trace for service :0000000a
2026-09-11 16:06:53.215705 [:0000000a] security: recv a signal 2
2026-09-11 16:07:00.617795 [:00000000] om: A message from [ :00000000 ] to [ :0000000c ] maybe in an endless loop (version = 167)
2026-09-11 16:07:00.618107 [:00000000] om: Printing Lua stack trace for service :0000000c
2026-09-11 16:07:00.618389 [:0000000c] om: recv a signal 2
2026-09-11 16:07:10.418930 [:0000001b] framework: recv a signal 2
2026-09-11 16:07:10.418993 [:00000000] framework: A message from [ :00000004 ] to [ :0000000a ] maybe in an endless loop (version = 2653)
2026-09-11 16:07:10.419030 [:00000000] framework: Printing Lua stack trace for service :0000000a
2026-09-11 16:07:10.419060 [:0000000a] framework: recv a signal 2
2026-09-11 16:07:10.419164 [:0000000b] framework: recv a signal 2
2026-09-11 16:07:10.419205 [:00000000] framework: A message from [ :00000014 ] to [ :00000014 ] maybe in an endless loop (version = 3893)
2026-09-11 16:07:10.419237 [:00000000] framework: Printing Lua stack trace for service :00000014
2026-09-11 16:07:10.419263 [:00000014] framework: recv a signal 2
2026-09-11 16:07:10.419367 [:00000013] framework: recv a signal 2
2026-09-11 16:07:10.483806 [:00000000] bmc_core: A message from [ :00000000 ] to [ :00000012 ] maybe in an endless loop (version = 97)
2026-09-11 16:07:10.483881 [:00000000] bmc_core: Printing Lua stack trace for service :00000012
2026-09-11 16:07:10.483920 [:00000012] bmc_core: recv a signal 2
2026-09-11 16:07:10.483975 [:00000000] bmc_core: A message from [ :00000000 ] to [ :0000000e ] maybe in an endless loop (version = 137)
2026-09-11 16:07:10.484010 [:00000000] bmc_core: Printing Lua stack trace for service :0000000e
2026-09-11 16:07:10.484039 [:0000000e] bmc_core: recv a signal 2
2026-09-11 16:07:10.484083 [:00000000] bmc_core: A message from [ :00000000 ] to [ :00000011 ] maybe in an endless loop (version = 531)
2026-09-11 16:07:10.484117 [:00000000] bmc_core: Printing Lua stack trace for service :00000011
2026-09-11 16:07:10.484148 [:00000011] bmc_core: recv a signal 2
2026-09-11 16:07:10.484189 [:00000000] bmc_core: A message from [ :0000000a ] to [ :00000019 ] maybe in an endless loop (version = 265)
2026-09-11 16:07:10.484249 [:00000019] bmc_core: recv a signal 2
2026-09-11 16:07:10.484386 [:0000000c] bmc_core: recv a signal 2
2026-09-11 16:07:10.758841 [:00000000] alarm: A message from [ :0000000a ] to [ :0000000c ] maybe in an endless loop (version = 67)
2026-09-11 16:07:10.758928 [:00000000] alarm: Printing Lua stack trace for service :0000000c
2026-09-11 16:07:10.758967 [:0000000c] alarm: recv a signal 2
2026-09-11 16:07:11.599973 [:00000000] ras: A message from [ :0000000a ] to [ :0000000f ] maybe in an endless loop (version = 249)
2026-09-11 16:07:11.600081 [:00000000] ras: Printing Lua stack trace for service :0000000f
2026-09-11 16:07:11.600616 [:0000000f] ras: recv a signal 2
2026-09-11 16:07:11.600683 [:00000000] ras: A message from [ :0000000a ] to [ :0000000e ] maybe in an endless loop (version = 179)
2026-09-11 16:07:11.600721 [:00000000] ras: Printing Lua stack trace for service :0000000e
2026-09-11 16:07:11.600754 [:0000000e] ras: recv a signal 2
2026-09-11 16:07:15.816291 [:00000000] interface: A message from [ :00000000 ] to [ :0000000a ] maybe in an endless loop (version = 55)
2026-09-11 16:07:15.816362 [:00000000] interface: Printing Lua stack trace for service :0000000a
2026-09-11 16:07:15.816394 [:0000000a] interface: recv a signal 2
2026-09-11 16:07:16.343520 [:00000000] energy: A message from [ :00000000 ] to [ :0000000a ] maybe in an endless loop (version = 111)
2026-09-11 16:07:16.343593 [:00000000] energy: Printing Lua stack trace for service :0000000a
2026-09-11 16:07:16.343626 [:0000000a] energy: recv a signal 2
2026-09-11 16:07:16.725833 [:00000000] hardware: A message from [ :00000000 ] to [ :0000000a ] maybe in an endless loop (version = 27)
2026-09-11 16:07:16.725906 [:00000000] hardware: Printing Lua stack trace for service :0000000a
2026-09-11 16:07:16.725945 [:0000000a] hardware: recv a signal 2
2026-09-11 16:07:20.836347 [:00000000] om_priv: A message from [ :00000000 ] to [ :0000000a ] maybe in an endless loop (version = 127)
2026-09-11 16:07:20.836417 [:00000000] om_priv: Printing Lua stack trace for service :0000000a
2026-09-11 16:07:20.836448 [:0000000a] om_priv: recv a signal 2
2026-09-11 16:07:21.969120 [:00000012] bmc_core: === Lua Stack Trace (endless loop detected) ===
2026-09-11 16:07:21.969539 [:00000012] bmc_core: === End of Lua Stack Trace ===
2026-09-11 16:07:22.068574 framework ERROR: sysv_rwlock_embedded.c(161): reader_wait_until_no_writer: TIMEOUT after 60005 ms
2026-09-11 16:07:22.068652 framework ERROR: shmlock.c(193): LOCK_TIMEOUT: READ lock request timeout on object=1 requester=[logical_proc=1, actual_pid=2392, service=9, incarnation=1]
2026-09-11 16:07:22.068686 framework ERROR: shmlock.c(222): LOCK_TIMEOUT: read holder #1=[logical_proc=2, actual_pid=2665, service=15]
2026-09-11 16:07:22.069445 persistence ERROR: app_preloader.lua(71): co[thread: 0x753031e43ba0] abnormal exit, err: Failed to acquire read lock: Lock timeout, traceback: stack traceback:  ./opt/bmc/libmc/lualib/mc/app_preloader.lua:71: in function ''  /opt/bmc/skynet/lualib/skynet.lua: in function </opt/bmc/skynet/lualib/skynet.lua:0>
2026-09-11 16:07:22.070524 persistence WARNING: harbor_client.lua(386): Receiver Skynet message queue scheduling delay is 121713 ms (threshold: 500 ms), service_name=bmc.kepler.persistence, path=/bmc/kepler/persistence, interface=bmc.kepler.persistence, method_name=BatchRead
2026-09-11 16:07:22.076010 [:0000000b] framework: === Lua Stack Trace (endless loop detected) ===
2026-09-11 16:07:22.076136 [:0000000b] framework: stack traceback:  ./opt/bmc/libmc/lualib/mc/context.lua:212: in function 'with_context'  ./opt/bmc/libmc/lualib/mc/app_preloader.lua:97: in function ''  /opt/bmc/skynet/lualib/skynet.lua: in function </opt/bmc/skynet/lualib/skynet.lua:0>
2026-09-11 16:07:22.076176 [:0000000b] framework: === End of Lua Stack Trace ===
2026-09-11 16:07:22.076326 [:0000000b] framework: lua call [1 to :b : 0 msgsz = 368] error : [31m/opt/bmc/skynet/lualib/skynet.lua:0: ./opt/bmc/libmc/lualib/mc/app_preloader.lua:74: Failed to acquire read lock: Lock timeout stack traceback:  [C]: in function 'error'  ./opt/bmc/libmc/lualib/mc/app_preloader.lua:74: in function ''  /opt/bmc/skynet/lualib/skynet.lua: in function </opt/bmc/skynet/lualib/skynet.lua:0> stack traceback:  [C]: in function 'error'  /opt/bmc/lualib/compat53/module.lua:176: in function ''  /opt/bmc/skynet/lualib/skynet.lua: in function </opt/bmc/skynet/lualib/skynet.lua:0>[0m
2026-09-11 16:07:22.179815 framework ERROR: sysv_rwlock_embedded.c(192): writer_wait_until_can_write: TIMEOUT after 60005 ms
2026-09-11 16:07:22.179918 framework ERROR: shmlock.c(193): LOCK_TIMEOUT: WRITE lock request timeout on object=1 requester=[logical_proc=1, actual_pid=2392, service=8, incarnation=1]
2026-09-11 16:07:22.179957 framework ERROR: shmlock.c(222): LOCK_TIMEOUT: read holder #1=[logical_proc=2, actual_pid=2665, service=15]
2026-09-11 16:07:22.180469 framework ERROR: l_matchs.h(88): D-Bus error: match rule basic_string::_S_construct null not valid
2026-09-11 16:07:22.181718 [:0000000a] framework: === Lua Stack Trace (endless loop detected) ===
2026-09-11 16:07:22.181818 [:0000000a] framework: stack traceback:  ./opt/bmc/libmc/lualib/dbus/tree.lua:235: in function <./opt/bmc/libmc/lualib/dbus/tree.lua:234>  [C]: at 0xffff87f2660c  [C]: at 0xffff87f1dfa4
2026-09-11 16:07:22.182023 [:0000000a] framework: === End of Lua Stack Trace ===
2026-09-11 16:07:22.182405 [:0000000e] bmc_core: === Lua Stack Trace (endless loop detected) ===
2026-09-11 16:07:22.182871 [:0000000e] bmc_core: === End of Lua Stack Trace ===
2026-09-11 16:07:22.201448 framework ERROR: sysv_rwlock_embedded.c(161): reader_wait_until_no_writer: TIMEOUT after 60005 ms
2026-09-11 16:07:22.201535 framework ERROR: shmlock.c(193): LOCK_TIMEOUT: READ lock request timeout on object=1 requester=[logical_proc=1, actual_pid=2392, service=11, incarnation=1]
2026-09-11 16:07:22.201569 framework ERROR: shmlock.c(222): LOCK_TIMEOUT: read holder #1=[logical_proc=2, actual_pid=2665, service=15]
2026-09-11 16:07:22.202376 maca ERROR: app_preloader.lua(71): co[thread: 0x753034802310] abnormal exit, err: Failed to acquire read lock: Lock timeout, traceback: stack traceback:  ./opt/bmc/libmc/lualib/mc/app_preloader.lua:71: in function ''  /opt/bmc/skynet/lualib/skynet.lua: in function </opt/bmc/skynet/lualib/skynet.lua:0>
2026-09-11 16:07:22.348071 framework ERROR: sysv_rwlock_embedded.c(161): reader_wait_until_no_writer: TIMEOUT after 60005 ms
2026-09-11 16:07:22.348147 framework ERROR: shmlock.c(193): LOCK_TIMEOUT: READ lock request timeout on object=1 requester=[logical_proc=1, actual_pid=2392, service=29, incarnation=1]
2026-09-11 16:07:22.348177 framework ERROR: shmlock.c(222): LOCK_TIMEOUT: read holder #1=[logical_proc=2, actual_pid=2665, service=15]
2026-09-11 16:07:22.348965 hwproxy ERROR: shared_object.lua(170): emit properties changed failed, path: /bmc/kepler/Scanner/Scanner_OutletTemp_0101, interface: bmc.kepler.Scanner, properties: ["Value"], err: Failed to acquire read lock: Lock timeout
2026-09-11 16:07:22.349131 [:0000001b] framework: === Lua Stack Trace (endless loop detected) ===
2026-09-11 16:07:22.349630 [:0000001b] framework: stack traceback:  ./opt/bmc/apps/hwproxy/lualib/shared_object.lua:169: in function ''  /opt/bmc/skynet/lualib/skynet.lua: in function </opt/bmc/skynet/lualib/skynet.lua:0>  [builtin#21]: at 0xffff94179d28  [C]: in function 'pcall'  ./opt/bmc/libmc/lualib/mc/context.lua:212: in function 'with_context'  ./opt/bmc/libmc/lualib/mc/app_preloader.lua:97: in function ''  /opt/bmc/skynet/lualib/skynet.lua: in function </opt/bmc/skynet/lualib/skynet.lua:0>
2026-09-11 16:07:22.349706 [:0000001b] framework: === End of Lua Stack Trace ===
2026-09-11 16:07:23.220646 [:00000000] security: A message from [ :00000000 ] to [ :0000000a ] maybe in an endless loop (version = 111)
2026-09-11 16:07:23.220716 [:00000000] security: Printing Lua stack trace for service :0000000a
2026-09-11 16:07:23.220747 [:0000000a] security: recv a signal 2
2026-09-11 16:07:24.404883 framework ERROR: sysv_rwlock_embedded.c(161): reader_wait_until_no_writer: TIMEOUT after 60005 ms
2026-09-11 16:07:24.404962 framework ERROR: shmlock.c(193): LOCK_TIMEOUT: READ lock request timeout on object=1 requester=[logical_proc=1, actual_pid=2392, service=20, incarnation=1]
2026-09-11 16:07:24.404994 framework ERROR: shmlock.c(222): LOCK_TIMEOUT: read holder #1=[logical_proc=2, actual_pid=2665, service=15]
2026-09-11 16:07:24.405724 hwproxy ERROR: shared_object.lua(170): emit properties changed failed, path: /bmc/kepler/Scanner/Scanner_FanCableMntr_0101, interface: bmc.kepler.Scanner.Aggregate, properties: ["AggregateStatus"], err: Failed to acquire read lock: Lock timeout
2026-09-11 16:07:24.411503 [:00000013] framework: === Lua Stack Trace (endless loop detected) ===
2026-09-11 16:07:24.413159 [:00000013] framework: stack traceback:  ./opt/bmc/apps/hwproxy/lualib/shared_object.lua:169: in function ''  /opt/bmc/skynet/lualib/skynet.lua: in function </opt/bmc/skynet/lualib/skynet.lua:0>  [builtin#21]: at 0xffff94179d28  [C]: in function 'pcall'  ./opt/bmc/libmc/lualib/mc/context.lua:212: in function 'with_context'  ./opt/bmc/libmc/lualib/mc/app_preloader.lua:97: in function ''  /opt/bmc/skynet/lualib/skynet.lua: in function </opt/bmc/skynet/lualib/skynet.lua:0>
2026-09-11 16:07:24.413675 [:00000013] framework: === End of Lua Stack Trace ===

有可能与存储颗粒有关吗

AC启动，概率出现组件启动异常，有日志提示StartupCheck failed，影响PCIe卡加载 - 交流互助区 - openUBMC 论坛

2

答案内容由AI生成，仅供参考：

结论概述

根据您提供的日志和知识库信息，AC测试出现系统不上电问题的直接原因为：fructrl组件出现重启，由于软重启（BMC重启）不执行上电策略，导致系统长时间处于下电状态，最终AC测试失败。

点击此处查看详细分析解答

AC测试时系统不上电问题分析

结论概述

根据您提供的日志和知识库信息，AC测试出现系统不上电问题的直接原因为：fructrl组件出现重启，由于软重启（BMC重启）不执行上电策略，导致系统长时间处于下电状态，最终AC测试失败。

关键日志分析

1. 框架层面：检测到大量死循环（endless loop）

日志中出现了大量框架错误信息，表示消息循环异常：

  • framework: A message from [ :00000000 ] to [ :0000001b ] maybe in an endless loop (version = 2175) — 框架检测到消息循环疑似卡死
  • 涉及energy、hardware、om_priv、om、ras、security、bmc_core等多个子系统均报出异常
  • 多个服务接收到 signal 2 信号被终止

2. 共享内存锁超时（LOCK_TIMEOUT）

框架层面出现持续的共享内存锁获取失败：

framework ERROR: sysv_rwlock_embedded.c(161): reader_wait_until_no_writer: TIMEOUT after 60005 ms
framework ERROR: shmlock.c(193): LOCK_TIMEOUT: READ lock request timeout on object=1 requester=[logical_proc=1, actual_pid=2392, service=26, incarnation=1]
  • 读锁（READ lock） 和写锁（WRITE lock） 均出现 60 秒超时
  • 锁的持有者为 [logical_proc=2, actual_pid=2665, service=15]，该服务一直占用锁未释放
  • 导致 hwproxy、persistence、maca、mctpd 等多个组件协程异常退出（abnormal exit）

3. Lua 模块加载失败

日志中出现存储和机箱等组件的 lua loader error：

[:0000000e] hardware: lua loader error : error loading module 'storage.client' from file '/opt/bmc/apps/storage/client.lua':  /opt/bmc/apps/storage/client.lua:1: unexpected symbol
[:0000000b] energy: lua loader error : error loading module 'fan_object' from file '/opt/bmc/apps/thermal_mgmt/lualib/fan_object.lua':  /opt/bmc/apps/thermal_mgmt/lualib/fan_object.lua: cannot load malformed bytecode
[:0000000f] hardware: lua loader error : error loading module 'chassis.service' from file '/opt/bmc/apps/chassis/service.lua':  /opt/bmc/apps/chassis/service.lua:1: unexpected symbol
  • 加载失败后对应服务均执行了 KILL self 自杀操作
  • storage、thermal_mgmt、chassis 组件未能正常启动

4. persistence 消息队列严重延迟

persistence WARNING: harbor_client.lua(386): Receiver Skynet message queue scheduling delay is 1789142658504 ms

消息队列调度出现极大延迟（远超 500ms 的阈值），表明系统整体处于严重负载或阻塞状态。

问题根因分析

与存储颗粒的关联性

根据知识库信息，AC测试与存储颗粒的关联性可以从以下几个方面判断：

  1. 存储组件加载失败：本次日志中确认 storage 组件因 client.lua 文件出现 unexpected symbol 错误而加载失败，该问题可能与存储颗粒（如NVMe盘、硬盘背板等）相关。

  2. AC Test 对存储系统的已知影响：知识库中提到，AC Test（交流电循环测试）会导致系统行为异常，包括 硬盘背板（Disk Backplane）无法加载、NVMe盘BMC信息磨损率丢失等问题。

  3. 框架死循环可能由存储组件触发：由于 storage 组件加载失败后进程被终止，可能导致依赖该组件的其他服务出现死循环或锁等待，从而引发框架层面的连锁反应。

已知相关问题现象

知识库中包含以下与 AC 测试相关的类似问题：

问题类型 相关实体 现象描述
AC压测后不上电 服务器不上电 AC压测情况下系统偶发无法上电
StartupCheck失败 StartupCheck Failed 初始化时需要加载的组件失败，影响PCIe卡加载
AC测试BMC重启 BMC Restart 长时AC测试后BMC反复重启
AC测试coredump AC Test devmon组件产生coredump导致上电策略不生效

建议排查方向

  1. 确认存储组件加载失败原因：检查 /opt/bmc/apps/storage/client.lua 文件内容是否存在编译异常或格式错误，这可能是导致storage组件无法正常启动的直接原因。

  2. 分析死循环根因：框架中大量的 endless loop 提示表明存在组件间消息循环依赖，需要结合 kbox_info 日志排查是否存在 watch dog 重启现象。

  3. 检查共享内存锁占用：shmlock.c 中锁持有者 [logical_proc=2, actual_pid=2665, service=15] 一直未释放锁，需要确认该服务是否异常挂起。

  4. 对比已知案例：参考知识库中 “AC启动，概率出现组件启动异常，有日志提示StartupCheck failed，影响PCIe卡加载” 的案例（论坛话题链接：https://discuss.openubmc.cn/t/topic/4722/17），该案例与当前问题高度相似，可参考其定位过程和解决方案。

3

一键日志

S920X20_71001850Z031_20260913-0810.tar.gz (16.8 MB)

4

看下写上电寄存器是否写入成功

5

目前发现应该与自己修改有关

6

目前解决了嘛？
