背景
当前redfish标准接口存在缺失，需要评审新增redfish标准接口以及资源协作接口属性。
关联ISSUE
[需求]: NetworkAdapter相关资源支持redfish新标准
整体方案
1.redfish接口NetworkAdapter北向需要关联资源协作接口对应的链接，因此需要新增资源协作接口属性
评审点
评审点1：
URI：/redfish/v1/Chassis/{ChassisId}/NetworkAdapters/{NetworkAdapterId}
1、支持新增
Ports 、NetworkDeviceFunctions、Merics
2、支持显示"Controllers”下的“Links”下新增Ports、NetworkDeviceFunctions
详细描述
评审点1：
URI：/redfish/v1/Chassis/{ChassisId}/NetworkAdapters/{NetworkAdapterId}
变化类型：新增属性
操作类型：GET
应用场景：redfish接口获取NetworkAdapterse相关资源集合信息
| 一级属性 | 二级属性 | 三级属性 | 四级属性 | 类型 | 权限 | 属性说明 |
|---|---|---|---|---|---|---|
| Ports | @odata.id | string | ReadOnly | 链接端口集合资源的URI | ||
| NetworkDeviceFunctions | @odata.id | string | ReadOnly | 链接网络功能集合资源的URI | ||
| Metrics | @odata.id | string | ReadOnly | 链接网络适配器使用情况和健康状况统计集合资源的URI | ||
| Controllers | Links | Ports | @odata.id | array，string | ReadOnly | 当前网络控制器关联的端口的枚举 |
| Controllers | Links | NetworkDeviceFunctions | @odata.id | array，string | ReadOnly | 当前网络控制器关联的网络功能的枚举 |
新增schema文件networkadapter.v1_12_1.json
"Ports": {
"description": "An array of links to the ports associated with this network controller.",
"items": {
"$ref": "http://redfish.dmtf.org/schemas/v1/Port.json#/definitions/Port"
},
"longDescription": "This property shall contain an array of links to resources of type `Port` that represent the ports associated with this network controller.",
"readonly": true,
"type": "array",
"versionAdded": "v1_5_0"
},
"NetworkDeviceFunctions": {
"$ref": "http://redfish.dmtf.org/schemas/v1/NetworkDeviceFunctionCollection.json#/definitions/NetworkDeviceFunctionCollection",
"description": "The link to the collection of network device functions associated with this network adapter.",
"longDescription": "This property shall contain a link to a resource collection of type `NetworkDeviceFunctionCollection`.",
"readonly": true
},
"Metrics": {
"anyOf": [
{
"$ref": "http://redfish.dmtf.org/schemas/v1/NetworkAdapterMetrics.json#/definitions/NetworkAdapterMetrics"
},
{
"type": "null"
}
],
"description": "The link to the metrics associated with this adapter.",
"longDescription": "This property shall contain a link to a resource of type `NetworkAdapterMetrics` that contains the metrics associated with this adapter.",
"readonly": true,
"versionAdded": "v1_7_0"
},
"ControllerLinks": {
"additionalProperties": false,
"description": "The links to other resources that are related to this resource.",
"longDescription": "This Redfish Specification-described type shall contain links to resources that are related to but are not contained by, or subordinate to, this resource.",
"patternProperties": {
"^([a-zA-Z_][a-zA-Z0-9_]*)?@(odata|Redfish|Message)\\.[a-zA-Z_][a-zA-Z0-9_]*$": {
"description": "This property shall specify a valid odata or Redfish property.",
"type": [
"array",
"boolean",
"integer",
"number",
"null",
"object",
"string"
]
}
},
"properties": {
"ActiveSoftwareImage": {
"$ref": "http://redfish.dmtf.org/schemas/v1/SoftwareInventory.json#/definitions/SoftwareInventory",
"description": "The link to the software inventory resource that represents the active firmware image for this controller.",
"longDescription": "This property shall contain a link to a resource of type `SoftwareInventory` that represents the active firmware image for this controller.",
"readonly": false,
"versionAdded": "v1_10_0"
},
"NetworkDeviceFunctions": {
"description": "An array of links to the network device functions associated with this network controller.",
"items": {
"$ref": "http://redfish.dmtf.org/schemas/v1/NetworkDeviceFunction.json#/definitions/NetworkDeviceFunction"
},
"longDescription": "This property shall contain an array of links to resources of type `NetworkDeviceFunction` that represent the network device functions associated with this network controller.",
"readonly": true,
"type": "array"
},
"NetworkDeviceFunctions@odata.count": {
"$ref": "http://redfish.dmtf.org/schemas/v1/odata-v4.json#/definitions/count"
},
"NetworkPorts": {
"deprecated": "This property has been deprecated in favor of the `Ports` property.",
"description": "An array of links to the network ports associated with this network controller.",
"items": {
"$ref": "http://redfish.dmtf.org/schemas/v1/NetworkPort.json#/definitions/NetworkPort"
},
"longDescription": "This property shall contain an array of links to resources of type `NetworkPort` that represent the network ports associated with this network controller.",
"readonly": true,
"type": "array",
"versionDeprecated": "v1_5_0"
},
"NetworkPorts@odata.count": {
"$ref": "http://redfish.dmtf.org/schemas/v1/odata-v4.json#/definitions/count"
},
"Oem": {
"$ref": "http://redfish.dmtf.org/schemas/v1/Resource.json#/definitions/Oem",
"description": "The OEM extension property.",
"longDescription": "This property shall contain the OEM extensions. All values for properties contained in this object shall conform to the Redfish Specification-described requirements."
},
"PCIeDevices": {
"description": "An array of links to the PCIe devices associated with this network controller.",
"items": {
"$ref": "http://redfish.dmtf.org/schemas/v1/PCIeDevice.json#/definitions/PCIeDevice"
},
"longDescription": "This property shall contain an array of links to resources of type `PCIeDevice` that represent the PCIe devices associated with this network controller.",
"readonly": true,
"type": "array"
},
"PCIeDevices@odata.count": {
"$ref": "http://redfish.dmtf.org/schemas/v1/odata-v4.json#/definitions/count"
},
"Ports": {
"description": "An array of links to the ports associated with this network controller.",
"items": {
"$ref": "http://redfish.dmtf.org/schemas/v1/Port.json#/definitions/Port"
},
"longDescription": "This property shall contain an array of links to resources of type `Port` that represent the ports associated with this network controller.",
"readonly": true,
"type": "array",
"versionAdded": "v1_5_0"
},
"Ports@odata.count": {
"$ref": "http://redfish.dmtf.org/schemas/v1/odata-v4.json#/definitions/count"
},
"SoftwareImages": {
"description": "The images that are associated with this controller.",
"items": {
"$ref": "http://redfish.dmtf.org/schemas/v1/SoftwareInventory.json#/definitions/SoftwareInventory"
},
"longDescription": "This property shall contain an array of links to resource of type `SoftwareInventory` that represent the firmware images that apply to this controller.",
"readonly": true,
"type": "array",
"versionAdded": "v1_10_0"
},
"SoftwareImages@odata.count": {
"$ref": "http://redfish.dmtf.org/schemas/v1/odata-v4.json#/definitions/count"
}
},
"type": "object"
},
RspBody响应体示例：
{
"@odata.context": "/redfish/v1/$metadata#NetworkAdapter.NetworkAdapter",
"@odata.id": "/redfish/v1/Chassis/1/NetworkAdapters/chassisNIC1(SF221Q)",
"@odata.type": "#NetworkAdapter.v1_12_1.NetworkAdapter",
"Id": "chassisNIC1(SF221Q)",
"Name": "chassisNIC1(SF221Q)",
"Manufacturer": "Huawei",
"Model": "CPU Integration",
"PartNumber": null,
"SerialNumber": null,
"Oem": {
"openUBMC": {
"Name": "NIC 1 (SF221Q)",
"DriverName": "hns3",
"DriverVersion": "4.19.90-89.11.v2401.ky10.aarch6",
"CardManufacturer": "Huawei",
"CardModel": "4*GE",
"PcieSlotId": null,
"DeviceLocator": "NIC 1 (SF221Q)",
"SlotNumber": 1,
"Position": "chassis",
"NetworkTechnology": [
"Ethernet"
],
"RootBDF": "0000:34:00.0",
"FirmwareVersion": "3.10.22.8",
"VenderID": null,
"DeviceID": null,
"SubsystemVenderID": null,
"SubsystemDeviceID": null,
"BoardId": 65535,
"BoardIdHex": "0xffff",
"ComponentUniqueID": "00000001100302023955",
"PCBVersion": ".A",
"MctpEnabled": false,
"HotPlugSupported": true,
"HotPlugAttention": false,
"OrderlyHotplugCtrlStatus": "Removable",
"AssociatedResource": "CPU1",
"PartNumber": null
}
},
"Controllers": [
{
"FirmwarePackageVersion": "3.10.22.8",
"ControllerCapabilities": {
"NetworkPortCount": 4
},
"Links": {
"PCIeDevices@odata.count": 0,
"PCIeDevices": [],
"NetworkPorts@odata.count": 4,
"NetworkPorts": [
{
"@odata.id": "/redfish/v1/Chassis/1/NetworkAdapters/chassisNIC1(SF221Q)/NetworkPorts/1"
},
{
"@odata.id": "/redfish/v1/Chassis/1/NetworkAdapters/chassisNIC1(SF221Q)/NetworkPorts/2"
},
{
"@odata.id": "/redfish/v1/Chassis/1/NetworkAdapters/chassisNIC1(SF221Q)/NetworkPorts/3"
},
{
"@odata.id": "/redfish/v1/Chassis/1/NetworkAdapters/chassisNIC1(SF221Q)/NetworkPorts/4"
}
],
"Ports": [
{
"@odata.id": "/redfish/v1/Chassis/1/NetworkAdapters/chassisNIC1(SF221Q)/Ports/1"
},
{
"@odata.id": "/redfish/v1/Chassis/1/NetworkAdapters/chassisNIC1(SF221Q)/Ports/2"
},
{
"@odata.id": "/redfish/v1/Chassis/1/NetworkAdapters/chassisNIC1(SF221Q)/Ports/3"
},
{
"@odata.id": "/redfish/v1/Chassis/1/NetworkAdapters/chassisNIC1(SF221Q)/Ports/4"
}
],
"NetworkDeviceFunctions": [
{
"@odata.id": "/redfish/v1/Chassis/1/NetworkAdapters/chassisNIC1(SF221Q)/NetworkDeviceFunctions/1"
},
{
"@odata.id": "/redfish/v1/Chassis/1/NetworkAdapters/chassisNIC1(SF221Q)/NetworkDeviceFunctions/2"
},
{
"@odata.id": "/redfish/v1/Chassis/1/NetworkAdapters/chassisNIC1(SF221Q)/NetworkDeviceFunctions/3"
},
{
"@odata.id": "/redfish/v1/Chassis/1/NetworkAdapters/chassisNIC1(SF221Q)/NetworkDeviceFunctions/4"
}
]
}
}
],
"NetworkPorts": {
"@odata.id": "/redfish/v1/Chassis/1/NetworkAdapters/chassisNIC1(SF221Q)/NetworkPorts"
},
"NetworkDeviceFunctions": {
"@odata.id": "/redfish/v1/Chassis/1/NetworkAdapters/chassisNIC1(SF221Q)/NetworkDeviceFunctions"
},
"Ports": {
"@odata.id": "/redfish/v1/Chassis/1/NetworkAdapters/chassisNIC1(SF221Q)/Ports"
},
"Metrics": {
"@odata.id": "/redfish/v1/Chassis/1/NetworkAdapters/chassisNIC1(SF221Q)/Metrics"
},
"Status": {
"State": "Enabled",
"Oem": {
"openUBMC": {
"Severity": "Informational"
}
},
"Health": "OK"
}
}

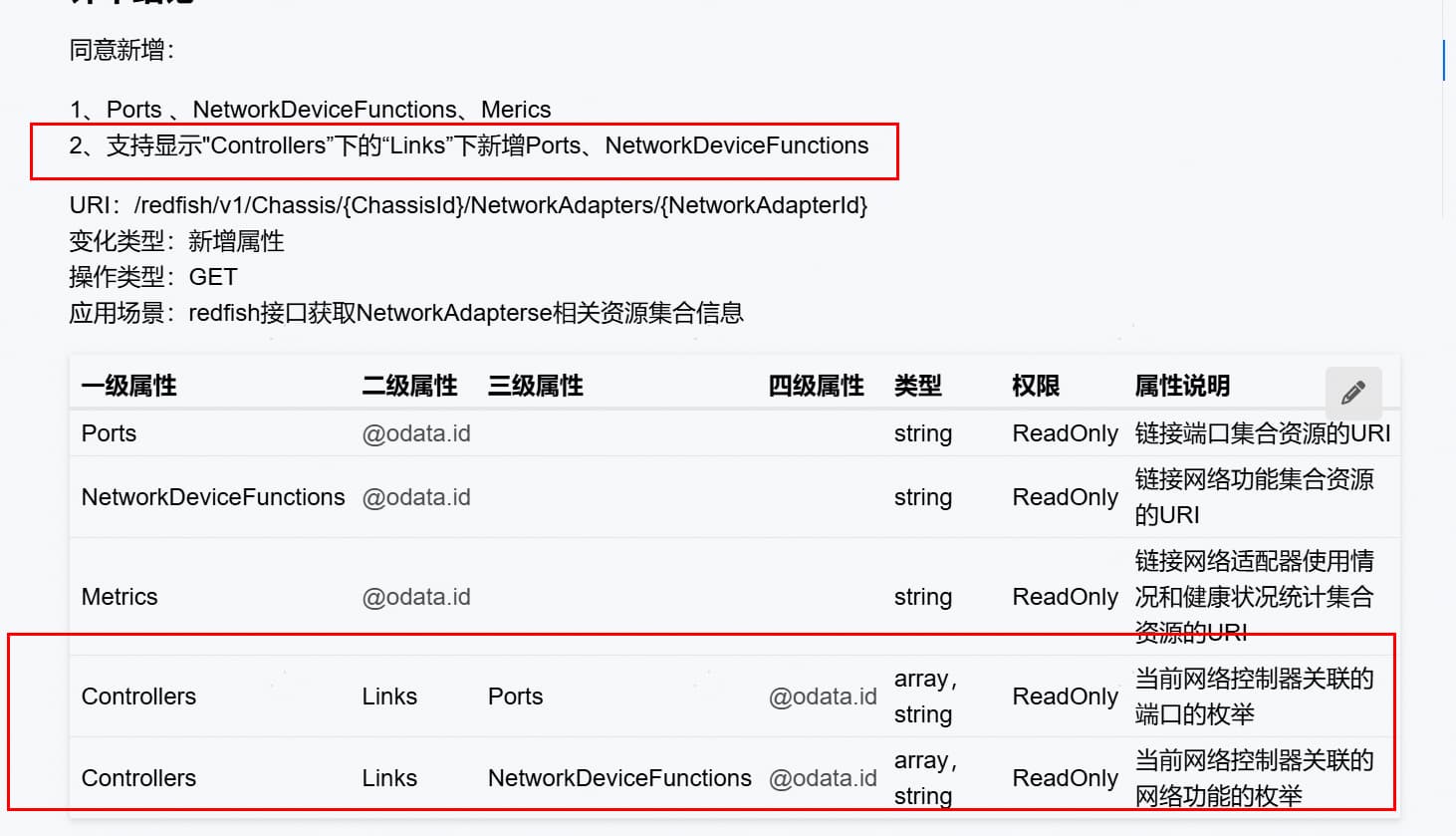

评审结论
同意新增：
1、Ports 、NetworkDeviceFunctions、Merics
2、支持显示"Controllers”下的“Links”下新增Ports、NetworkDeviceFunctions
URI：/redfish/v1/Chassis/{ChassisId}/NetworkAdapters/{NetworkAdapterId}
变化类型：新增属性
操作类型：GET
应用场景：redfish接口获取NetworkAdapterse相关资源集合信息
| 一级属性 | 二级属性 | 三级属性 | 四级属性 | 类型 | 权限 | 属性说明 |
|---|---|---|---|---|---|---|
| Ports | @odata.id | string | ReadOnly | 链接端口集合资源的URI | ||
| NetworkDeviceFunctions | @odata.id | string | ReadOnly | 链接网络功能集合资源的URI | ||
| Metrics | @odata.id | string | ReadOnly | 链接网络适配器使用情况和健康状况统计集合资源的URI | ||
| Controllers | Links | Ports | @odata.id | array，string | ReadOnly | 当前网络控制器关联的端口的枚举 |
| Controllers | Links | NetworkDeviceFunctions | @odata.id | array，string | ReadOnly | 当前网络控制器关联的网络功能的枚举 |
