PCIE卡加载问题

交流互助区
1

我现在正在配置PCIE

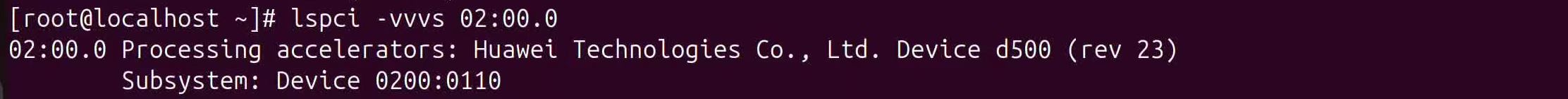

os下查看四元组如下，系统识别到Dou卡了

Weixin Image_20260128165019_62_10
Weixin Image_20260128165019_62_102224×140 37.9 KB

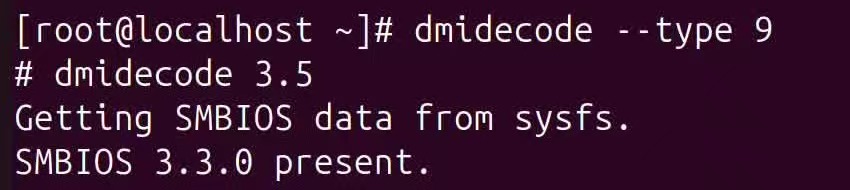

但是使用dmidecode从SMBIOS中获取PCIe信息，是获取不到的

Weixin Image_20260128165019_63_10
Weixin Image_20260128165019_63_10850×190 34.7 KB

一键收集来看也没有四元组的内容

Weixin Image_20260128165020_64_10
Weixin Image_20260128165020_64_102540×218 248 KB

这代表什么，是bios没有上报四元组信息吗

pcie设备的FDM 故障是如何监控的
2

请提供下app.log

3

可以在一键收集的日志中解压 dump_info/OSDump/systemcom.tar 压缩包。观察systemcom.dat是否有厂商id，设备id和bdf信息返回给到bmc：

xkl@SRD-xiaokaili:~/log/dump_info/OSDump/systemcom$ grep "slotid" -in systemcom.dat
2977:SlotId 1 VID 9005,DID 28F
2979:SlotId 3 VID 19E5,DID D802
2981:SlotId 5 VID 19E5,DID D802
2983:SlotId 7 VID 19E5,DID D802
2985:SlotId 9 VID 19E5,DID D802
3081:SlotId 11 VID 19E5,DID D802
3083:SlotId 13 VID 19E5,DID D802
3085:SlotId 15 VID 19E5,DID D802
3087:SlotId 17 VID 19E5,DID D802
3091:[738L]CPU 0 SlotId 1 VID 9005,DID 28F Bus F: Dev 0.Func 0
3092:[738L]CPU 0 SlotId 3 VID 19E5,DID D802 Bus 12: Dev 0.Func 0
3093:[738L]CPU 0 SlotId 5 VID 19E5,DID D802 Bus 13: Dev 0.Func 0
3094:[738L]CPU 0 SlotId 7 VID 19E5,DID D802 Bus C: Dev 0.Func 0
3095:[738L]CPU 0 SlotId 9 VID 19E5,DID D802 Bus 9: Dev 0.Func 0
3096:[738L]CPU 1 SlotId 11 VID 19E5,DID D802 Bus 8E: Dev 0.Func 0
3097:[738L]CPU 1 SlotId 13 VID 19E5,DID D802 Bus 8F: Dev 0.Func 0
3098:[738L]CPU 1 SlotId 15 VID 19E5,DID D802 Bus 88: Dev 0.Func 0
3099:[738L]CPU 1 SlotId 17 VID 19E5,DID D802 Bus 85: Dev 0.Func 0
匹配到二进制文件 systemcom.dat

再到app.log搜索PMU关键词查看四元组信息：

(base) xkl@SRD-xiaokaili:~/log/S74AK3_4116056106ALC41082_20260121-1124/dump_info/LogDump$ grep "PMU" -ain app.log
2092:2026-01-20 20:15:59.926563 mctpd NOTICE: mctp_mdb_mgmt.lua(267): mctp_mdb_mgmt: pmu status change to 1, OS Power ON
4917:2026-01-21 09:20:10.656460 mctpd NOTICE: mctp_mdb_mgmt.lua(267): mctp_mdb_mgmt: pmu status change to 1, OS Power ON
6908:2026-01-21 10:09:44.010076 compute NOTICE: pmu_service.lua(143): check_uptree pmu system_id 1, slot 0
6912:2026-01-21 10:09:44.056159 compute NOTICE: pmu_service.lua(143): check_uptree pmu system_id 1, slot 0
7313:2026-01-21 10:09:54.214258 compute NOTICE: pmu_object.lua(364): [imu_collect] init_imu_collect_handle soc=Hi1630V100, soc_id=3, host_flag=true, sys_id=1
8675:2026-01-21 10:10:38.229182 mctpd NOTICE: mctp_mdb_mgmt.lua(267): mctp_mdb_mgmt: pmu status change to 1, OS Power ON
9922:2026-01-21 10:14:06.431555 pcie_device NOTICE: device_loader.lua(130): [BizTopoLoader] Get id from PMU, vid:5555, did:4119, sub_vid:6629, sub_did:53557
9930:2026-01-21 10:14:06.678520 pcie_device NOTICE: device_loader.lua(130): [BizTopoLoader] Get id from PMU, vid:6629, did:55298, sub_vid:6629, sub_did:16384
9942:2026-01-21 10:14:06.902388 pcie_device NOTICE: device_loader.lua(130): [BizTopoLoader] Get id from PMU, vid:6629, did:55298, sub_vid:6629, sub_did:16384
9950:2026-01-21 10:14:07.019603 pcie_device NOTICE: device_loader.lua(130): [BizTopoLoader] Get id from PMU, vid:6629, did:55298, sub_vid:6629, sub_did:16384
9962:2026-01-21 10:14:07.223479 pcie_device NOTICE: device_loader.lua(130): [BizTopoLoader] Get id from PMU, vid:6629, did:55298, sub_vid:6629, sub_did:16384
9970:2026-01-21 10:14:07.427510 pcie_device NOTICE: device_loader.lua(130): [BizTopoLoader] Get id from PMU, vid:6629, did:55298, sub_vid:6629, sub_did:16384
9978:2026-01-21 10:14:07.549494 pcie_device NOTICE: device_loader.lua(130): [BizTopoLoader] Get id from PMU, vid:6629, did:55298, sub_vid:6629, sub_did:16384
9988:2026-01-21 10:14:07.737983 pcie_device NOTICE: device_loader.lua(130): [BizTopoLoader] Get id from PMU, vid:6629, did:55298, sub_vid:6629, sub_did:16384
9998:2026-01-21 10:14:07.859360 pcie_device NOTICE: device_loader.lua(130): [BizTopoLoader] Get id from PMU, vid:6629, did:55298, sub_vid:6629, sub_did:16384
10007:2026-01-21 10:14:07.957271 pcie_device NOTICE: device_loader.lua(130): [BizTopoLoader] Get id from PMU, vid:32902, did:5490, sub_vid:32902, sub_did:0
12131:2026-01-21 10:39:11.186090 mctpd NOTICE: mctp_mdb_mgmt.lua(267): mctp_mdb_mgmt: pmu status change to 1, OS Power ON
1 个赞
4

这个dmidecode指令查到的一键收集是依赖bmc上报丝印的。进一步定位需要确定您这边的使用场景，具体是卡插在Riser卡上还是PCIe Switch，或者是什么别的情况，以及相关的丝印配置，可能的话麻烦提供一下一键收集日志。

6

这边CPIE全是CPU出的，收集日志目前还在审核请稍等

7

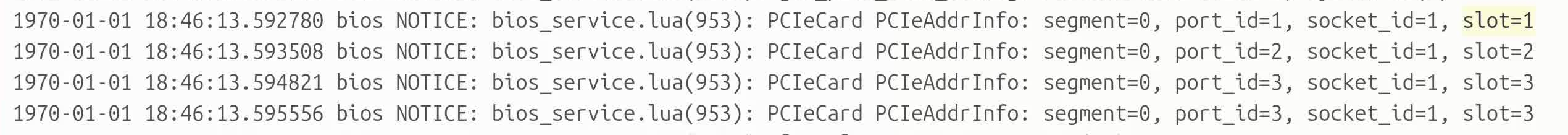

PCIeCard PCIeAddrInfo: segment=0, port_id=3, socket_id=1, slot=3
PCIeCard PCIeAddrInfo: segment=0, port_id=3, socket_id=1, slot=3
这两个重复了，看下一键收集的丝印文件

8

丝印文件具体是哪个文件

9

一键收集bios目录的silk文件

10

一键收集中没有单独的silk文件，只有silkconfig

如下：

{“CpuSilk”:[{“LogicalSocketId”:0,“DeviceLocator”:“”,“Silk”:“CPU1”,“PhysicalSocketId”:1},{“LogicalSocketId”:1,“DeviceLocator”:“”,“Silk”:“CPU2”,“PhysicalSocketId”:2}],“PCIeSilk”:[{“RootPortDeviceId”:3,“DeviceType”:“PCIe”,“Silk”:“”,“SocketId”:1,“Segment”:0,“SlotId”:3},{“RootPortDeviceId”:3,“DeviceType”:“PCIe”,“Silk”:“”,“SocketId”:1,“Segment”:0,“SlotId”:3},{“RootPortDeviceId”:1,“DeviceType”:“PCIe”,“Silk”:“”,“SocketId”:1,“Segment”:0,“SlotId”:1},{“RootPortDeviceId”:2,“DeviceType”:“PCIe”,“Silk”:“”,“SocketId”:1,“Segment”:0,“SlotId”:2}],“MemSilk”:[{“LogicalChannelId”:0,“DimmId”:0,“Silk”:“DIMM130”,“PhysicalChannelId”:3,“SocketId”:1},{“LogicalChannelId”:2,“DimmId”:1,“Silk”:“DIMM011”,“PhysicalChannelId”:1,“SocketId”:0},{“LogicalChannelId”:3,“DimmId”:0,“Silk”:“DIMM000”,“PhysicalChannelId”:0,“SocketId”:0},{“LogicalChannelId”:2,“DimmId”:0,“Silk”:“DIMM110”,“PhysicalChannelId”:1,“SocketId”:1},{“LogicalChannelId”:1,“DimmId”:0,“Silk”:“DIMM020”,“PhysicalChannelId”:2,“SocketId”:0},{“LogicalChannelId”:1,“DimmId”:1,“Silk”:“DIMM021”,“PhysicalChannelId”:2,“SocketId”:0},{“LogicalChannelId”:0,“DimmId”:0,“Silk”:“DIMM030”,“PhysicalChannelId”:3,“SocketId”:0},{“LogicalChannelId”:0,“DimmId”:1,“Silk”:“DIMM031”,“PhysicalChannelId”:3,“SocketId”:0},{“LogicalChannelId”:3,“DimmId”:0,“Silk”:“DIMM100”,“PhysicalChannelId”:0,“SocketId”:1},{“LogicalChannelId”:3,“DimmId”:1,“Silk”:“DIMM101”,“PhysicalChannelId”:0,“SocketId”:1},{“LogicalChannelId”:3,“DimmId”:1,“Silk”:“DIMM001”,“PhysicalChannelId”:0,“SocketId”:0},{“LogicalChannelId”:2,“DimmId”:1,“Silk”:“DIMM111”,“PhysicalChannelId”:1,“SocketId”:1},{“LogicalChannelId”:1,“DimmId”:0,“Silk”:“DIMM120”,“PhysicalChannelId”:2,“SocketId”:1},{“LogicalChannelId”:2,“DimmId”:0,“Silk”:“DIMM010”,“PhysicalChannelId”:1,“SocketId”:0},{“LogicalChannelId”:0,“DimmId”:1,“Silk”:“DIMM131”,“PhysicalChannelId”:3,“SocketId”:1},{“LogicalChannelId”:1,“DimmId”:1,“Silk”:“DIMM121”,“PhysicalChannelId”:2,“SocketId”:1}],“NICSilk”:,“DiskSilk”:[{“RootBDF”:“0000:06:00.0”,“PhyId”:1,“ControlId”:1,“SocketId”:0,“SlotId”:50},{“RootBDF”:“0000:38:05.0”,“PhyId”:0,“ControlId”:1,“SocketId”:0,“SlotId”:51}],“Properties”:{“Version”:1,“Type”:“BIOS SILK CFG”}}

11

提供一份完整的一键收集

12

方便提供一下邮箱吗，网页上传不了压缩包

13

huangjiapei5@huawei.com

14

邮件已发送，请查收，感谢！

15

Weixin Image_20260129091853_68_10
Weixin Image_20260129091853_68_102754×456 200 KB

Weixin Image_20260129091855_70_10
Weixin Image_20260129091855_70_101612×268 83.7 KB

Weixin Image_20260129091854_69_10
Weixin Image_20260129091854_69_101648×210 38.8 KB

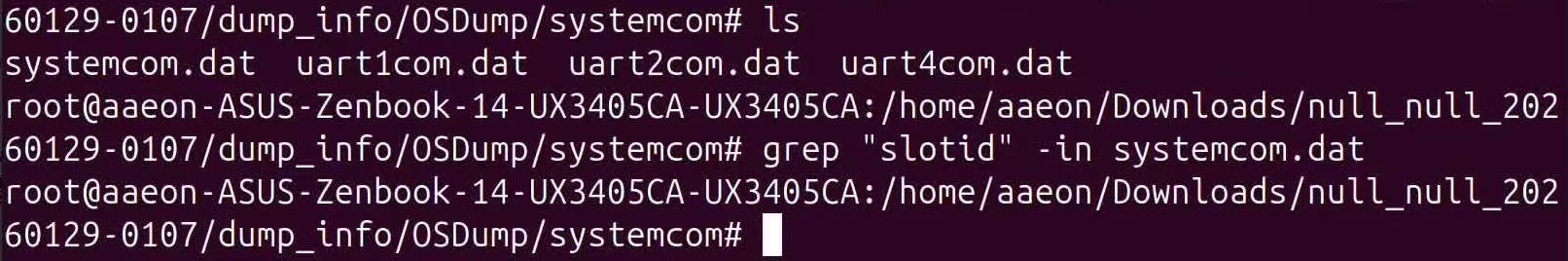

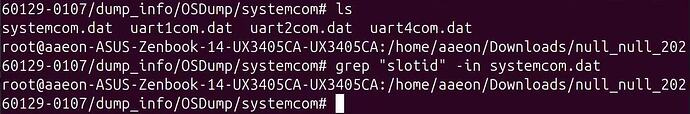

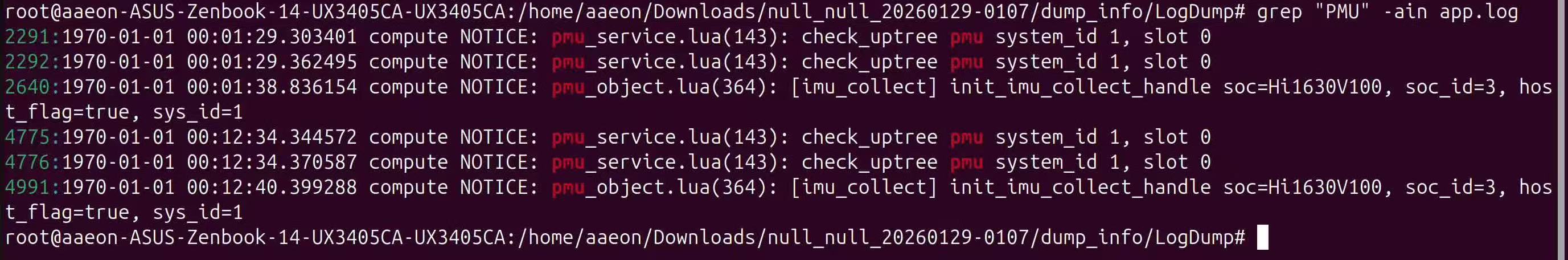

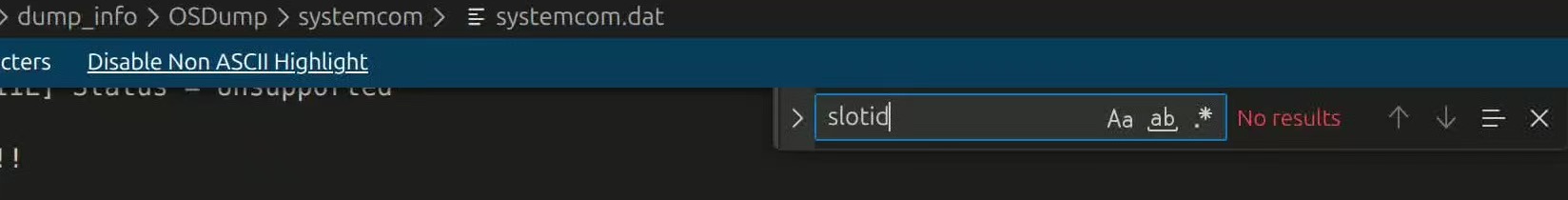

这边按照您说的搜索了一下，systemcom.dat似乎没有厂商id，设备id和bdf信息，app.log中也查询不到四元组信息

16

看你的丝印文件中 ，RootPortDeviceId是不是配置的有一些问题？为什么“SlotId”:3配置了两次。从你的system.dat来看bios是没有返回bdf信息给bmc的。建议你和bios对齐一下丝印文件。

17

好的我这边先和bios沟通下！

18

槽位3出现两个一模一样的丝印，排查下csr配置（riser、psr、基础板）的pcie配置是否存在重复

20

SlotTableInit Status = Not Found
ReportPcieCardBDFInfoToBMC Status Success
SsdSlotTableInit Status = Not Found
SsdSlotTableInit Status = Not Found
SsdSlotTableInit Status = Not Found
ReportSSDCardBDFInfoToBMC Status Success
OcpSlotTableInit Status = Not Found

从这里看，带内没有上报卡的bdf到bmc。
应该是丝印信息不对，槽位3出现两个一模一样的丝印，排查下csr配置（riser、psr、基础板）的pcie配置是否存在重复。

21

丝印信息会影响到带内上报到BMC吗，因为我只是加载了官方的sr，EXU→BCU→IEU，并没有更改其中PCIE的配置

22

会的 从丝印信息可以看出来应该与实际不一样，已出现重复的两个配置
