cpld i2c升级失败

交流互助区
1

问题描述

需要I2C 2下升级安路cpld 0x3c，每次在升级到47%时失败，
sr相关主要配置如下：
“Chip_Cpld”: {
“Address”: 120,
“AddrWidth”: 1,
“OffsetWidth”: 1,
“WriteTmout”: 0,
“ReadTmout”: 0
},
“LogicFirmware_BCU_1”: {
“UId”: “00000001020302031825”,
“Name”: “BCU_CPLD1”,
“Manufacturer”: “Huawei”,
“Version”: “#/Accessor_LogicVerId.Value”,
“Location”: 5,
“I2CUpgradeChip”: “#/Chip_Cpld”,
“I2CUpgradeLockChip”: “#/Chip_Cpld”,
“Routes”: “#/Accessor_JtagSwitch.Value”,
“DefaultRoute”: 0,
“FirmwareRoute”: 0,
“ValidMode”: 1,
“ValidAction”: “#/Accessor_AC.Value”,
“SoftwareId”: “CPLD-BC83AMDA”
},

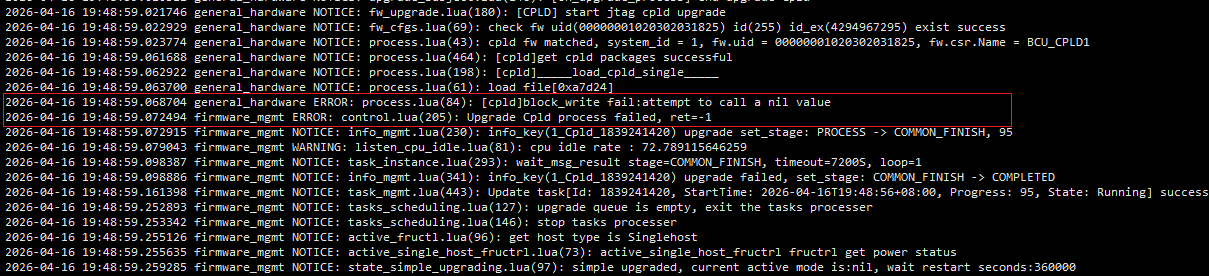

日志如下：

image1209×276 13.8 KB

详细日志如下：
2026-04-16 19:48:55.871502 web_backend NOTICE: init.lua(98): upload content length:number 173757, remaining capacity space:number 133885952
2026-04-16 19:48:56.012674 firmware_mgmt NOTICE: active_fructl.lua(96): get host type is Singlehost
2026-04-16 19:48:56.013213 firmware_mgmt NOTICE: utils.lua(34): The file path is Local.
2026-04-16 19:48:56.015945 firmware_mgmt NOTICE: init.lua(80): Upgrading_Flag is true
2026-04-16 19:48:56.046853 firmware_mgmt NOTICE: init.lua(41): update status to FS_SIMPLE_UPGRADING.
2026-04-16 19:48:56.070923 firmware_mgmt NOTICE: task_mgmt.lua(312): Create task[Id: 1839241420, StartTime: 2026-04-16T19:48:56+08:00, Progress: 0, State: New] successfully
2026-04-16 19:48:56.072348 firmware_mgmt NOTICE: task_service.lua(55): task create success, task id: 1839241420
2026-04-16 19:48:56.072944 firmware_mgmt NOTICE: task_id_mgmt.lua(30): add serial task id(1839241420) successfully
2026-04-16 19:48:56.074479 firmware_mgmt NOTICE: tasks_scheduling.lua(122): start tasks processer
2026-04-16 19:48:56.169777 firmware_mgmt NOTICE: task_mgmt.lua(443): Update task[Id: 1839241420, StartTime: 2026-04-16T19:48:56+08:00, Progress: 0, State: Running] successfully
2026-04-16 19:48:56.170691 firmware_mgmt NOTICE: file_transfer.lua(169): start to move file [temp_upgrade_file.hpm] from tmp to shm
2026-04-16 19:48:56.178683 firmware_mgmt NOTICE: file_transfer.lua(174): move_file_s ok:true, err:0
2026-04-16 19:48:56.230037 firmware_mgmt NOTICE: validate_sign.lua(195): verify signature successfully
2026-04-16 19:48:56.231335 firmware_mgmt NOTICE: action.lua(37): Validate signature successfully
2026-04-16 19:48:56.233835 firmware_mgmt NOTICE: hpm_package.lua(782): ManufacturerValidateEnabled is false, there is no need to validate manufacture_id.
2026-04-16 19:48:56.311454 firmware_mgmt NOTICE: hpm_package.lua(582): parse cfg file successfully, Version:1.0 FileNum:2
2026-04-16 19:48:56.312688 firmware_mgmt NOTICE: hpm_package.lua(456): get obj table: 0x5b3a2b7874c0 for Id=5
2026-04-16 19:48:56.327278 firmware_mgmt NOTICE: hpm_package.lua(463): get obj table: 0x5b3a2b7874c0 for Id=5
2026-04-16 19:48:56.327932 firmware_mgmt NOTICE: hpm_package.lua(474): get obj table: 0x5b3a2b7874c0 for Id=5
2026-04-16 19:48:56.328640 firmware_mgmt NOTICE: hpm_package.lua(413): System product info:ProductId(0), ProductVendorID(0x00000001), ProductUniqueID(0x030ABF00)
2026-04-16 19:48:56.328959 firmware_mgmt NOTICE: hpm_package.lua(327): check product id successfully
2026-04-16 19:48:56.340983 firmware_mgmt NOTICE: hpm_package.lua(395): cfg-BoardIDList(65535) match all devices
2026-04-16 19:48:56.342500 firmware_mgmt NOTICE: hpm_package.lua(449): get obj table: 0x5b3a2b7874c0 for Id=5
2026-04-16 19:48:56.343205 firmware_mgmt NOTICE: hpm_package.lua(507): hard_revision:0, soft_revision:0
2026-04-16 19:48:56.343582 firmware_mgmt NOTICE: hpm_package.lua(440): get obj nil for Id=5
2026-04-16 19:48:56.344041 firmware_mgmt NOTICE: hpm_package.lua(527): revision number check successfully. Target revision=(0, 0, nil) and hpm revision=nil
2026-04-16 19:48:56.444834 firmware_mgmt NOTICE: task_mgmt.lua(443): Update task[Id: 1839241420, StartTime: 2026-04-16T19:48:56+08:00, Progress: 0, State: Running] successfully
2026-04-16 19:48:56.456607 firmware_mgmt NOTICE: action.lua(47): Parse hpm package successfully
2026-04-16 19:48:57.058373 firmware_mgmt NOTICE: task_instance.lua(238): upgrade_task file_name=RIS-7631_2604014_1061110.hpm, FirmwareType=Cpld, fw_num=1, UniqueIDList=nil, sys_id=1, info_key=1_Cpld_1839241420
2026-04-16 19:48:57.154141 firmware_mgmt NOTICE: task_mgmt.lua(443): Update task[Id: 1839241420, StartTime: 2026-04-16T19:48:56+08:00, Progress: 0, State: Running] successfully
2026-04-16 19:48:57.154687 firmware_mgmt NOTICE: info_mgmt.lua(71): create_info: info_key=1_Cpld_1839241420, FirmwareType=Cpld, task_id=1839241420, upg_fw_num=1
2026-04-16 19:48:57.256647 firmware_mgmt NOTICE: task_instance.lua(710): firmware(info key:1_Cpld_1839241420) do upgrade stages
2026-04-16 19:48:57.255553 firmware_mgmt NOTICE: task_mgmt.lua(443): Update task[Id: 1839241420, StartTime: 2026-04-16T19:48:56+08:00, Progress: 0, State: Running] successfully
2026-04-16 19:48:57.257258 firmware_mgmt NOTICE: task_instance.lua(322): public initialize action start
2026-04-16 19:48:57.257643 firmware_mgmt NOTICE: hpm_package.lua(485): get obj table: 0x5b3a2b7874c0 for Id=5
2026-04-16 19:48:57.258333 firmware_mgmt NOTICE: hpm_package.lua(539): now uptime = 1435, firmware init time = 0
2026-04-16 19:48:57.260297 firmware_mgmt NOTICE: hpm_package.lua(456): get obj table: 0x5b3a2b7874c0 for Id=5
2026-04-16 19:48:57.261234 firmware_mgmt NOTICE: task_instance.lua(327): public initialize action end
2026-04-16 19:48:57.262508 firmware_mgmt NOTICE: info_mgmt.lua(230): info_key(1_Cpld_1839241420) upgrade set_stage: INITIALIZE → DIFF_PREPARE, 5
2026-04-16 19:48:57.358031 firmware_mgmt NOTICE: task_mgmt.lua(443): Update task[Id: 1839241420, StartTime: 2026-04-16T19:48:56+08:00, Progress: 5, State: Starting] successfully
2026-04-16 19:48:57.366492 general_hardware NOTICE: upgrade_subject.lua(112): [on_upgrade_prepare] firmware_type:Cpld cur_firmware_type:Cpld
2026-04-16 19:48:57.367511 general_hardware NOTICE: upgrade_subject.lua(120): [on_upgrade_prepare] start upgrade Cpld
2026-04-16 19:48:57.368094 general_hardware NOTICE: signal.lua(173): [cpld]Start the system[1] Cpld upgrade prepare phase
2026-04-16 19:48:57.469382 firmware_mgmt NOTICE: task_mgmt.lua(443): Update task[Id: 1839241420, StartTime: 2026-04-16T19:48:56+08:00, Progress: 7, State: Running] successfully
2026-04-16 19:48:57.475429 general_hardware NOTICE: upgrade_subject.lua(127): [on_upgrade_prepare] end upgrade Cpld
2026-04-16 19:48:57.482886 general_hardware NOTICE: fw_upgrade.lua(139): [cpld]get cpld_valid :nil
2026-04-16 19:48:57.486383 general_hardware NOTICE: fw_cfgs.lua(69): check fw uid(00000001020302031825) id(255) id_ex(4294967295) exist success
2026-04-16 19:48:57.634080 general_hardware NOTICE: fw_init.lua(194): get fw version 1.01
2026-04-16 19:48:57.634522 general_hardware NOTICE: fw_upgrade.lua(97): [cpld]get verion[1.01]
2026-04-16 19:48:57.636787 firmware_mgmt NOTICE: info_mgmt.lua(384): set FirmwareMode to Single
2026-04-16 19:48:57.637286 firmware_mgmt NOTICE: info_mgmt.lua(230): info_key(1_Cpld_1839241420) upgrade set_stage: DIFF_PREPARE → COMMON_PREPARE, 7
2026-04-16 19:48:57.651476 firmware_mgmt NOTICE: action.lua(86): public prepare action start
2026-04-16 19:48:57.694726 firmware_mgmt NOTICE: worker: start action in worker
2026-04-16 19:48:57.734399 firmware_mgmt NOTICE: task_mgmt.lua(443): Update task[Id: 1839241420, StartTime: 2026-04-16T19:48:56+08:00, Progress: 7, State: Running] successfully
2026-04-16 19:48:57.785670 firmware_mgmt NOTICE: worker: execute before action script successfully
2026-04-16 19:48:58.074763 firmware_mgmt WARNING: listen_cpu_idle.lua(81): cpu idle rate : 72.280701754386
2026-04-16 19:48:58.692414 firmware_mgmt NOTICE: action.lua(92): public prepare action end
2026-04-16 19:48:58.693012 firmware_mgmt NOTICE: task_instance.lua(722): upgrade FirmwareMode Single
2026-04-16 19:48:58.798749 firmware_mgmt NOTICE: task_mgmt.lua(443): Update task[Id: 1839241420, StartTime: 2026-04-16T19:48:56+08:00, Progress: 7, State: Running] successfully
2026-04-16 19:48:58.799704 firmware_mgmt NOTICE: info_mgmt.lua(230): info_key(1_Cpld_1839241420) upgrade set_stage: COMMON_PREPARE → PROCESS, 15
2026-04-16 19:48:58.896255 firmware_mgmt NOTICE: task_mgmt.lua(443): Update task[Id: 1839241420, StartTime: 2026-04-16T19:48:56+08:00, Progress: 15, State: Running] successfully
2026-04-16 19:48:58.896776 firmware_mgmt NOTICE: task_instance.lua(352): sys_id=1, fw_type=Cpld, filename=/dev/shm/upgrade/1839241420/Firmware1
2026-04-16 19:48:58.903476 firmware_mgmt NOTICE: hpm_package.lua(492): get obj table: 0x5b3a2b7874c0 for Id=5
2026-04-16 19:48:58.907914 general_hardware NOTICE: upgrade_subject.lua(139): [on_upgrade_process] start upgrade Cpld
2026-04-16 19:48:58.909307 general_hardware NOTICE: signal.lua(196): [cpld]Start the system[1] Cpld upgrade process phase
2026-04-16 19:48:59.017638 firmware_mgmt NOTICE: task_mgmt.lua(443): Update task[Id: 1839241420, StartTime: 2026-04-16T19:48:56+08:00, Progress: 47, State: Running] successfully
2026-04-16 19:48:59.020312 general_hardware NOTICE: upgrade_subject.lua(146): [on_upgrade_process] end upgrade Cpld
2026-04-16 19:48:59.021746 general_hardware NOTICE: fw_upgrade.lua(180): [CPLD] start jtag cpld upgrade
2026-04-16 19:48:59.022929 general_hardware NOTICE: fw_cfgs.lua(69): check fw uid(00000001020302031825) id(255) id_ex(4294967295) exist success
2026-04-16 19:48:59.023774 general_hardware NOTICE: process.lua(43): cpld fw matched, system_id = 1, fw.uid = 00000001020302031825, fw.csr.Name = BCU_CPLD1
2026-04-16 19:48:59.061688 general_hardware NOTICE: process.lua(464): [cpld]get cpld packages successful
2026-04-16 19:48:59.062922 general_hardware NOTICE: process.lua(198): [cpld]load_cpld_single
2026-04-16 19:48:59.063700 general_hardware NOTICE: process.lua(61): load file[0xa7d24]
2026-04-16 19:48:59.068704 general_hardware ERROR: process.lua(84): [cpld]block_write fail:attempt to call a nil value
2026-04-16 19:48:59.072494 firmware_mgmt ERROR: control.lua(205): Upgrade Cpld process failed, ret=-1
2026-04-16 19:48:59.072915 firmware_mgmt NOTICE: info_mgmt.lua(230): info_key(1_Cpld_1839241420) upgrade set_stage: PROCESS → COMMON_FINISH, 95
2026-04-16 19:48:59.079043 firmware_mgmt WARNING: listen_cpu_idle.lua(81): cpu idle rate : 72.789115646259
2026-04-16 19:48:59.098387 firmware_mgmt NOTICE: task_instance.lua(293): wait_msg_result stage=COMMON_FINISH, timeout=7200S, loop=1
2026-04-16 19:48:59.098886 firmware_mgmt NOTICE: info_mgmt.lua(341): info_key(1_Cpld_1839241420) upgrade failed, set_stage: COMMON_FINISH → COMPLETED
2026-04-16 19:48:59.161398 firmware_mgmt NOTICE: task_mgmt.lua(443): Update task[Id: 1839241420, StartTime: 2026-04-16T19:48:56+08:00, Progress: 95, State: Running] successfully
2026-04-16 19:48:59.252893 firmware_mgmt NOTICE: tasks_scheduling.lua(127): upgrade queue is empty, exit the tasks processer
2026-04-16 19:48:59.253342 firmware_mgmt NOTICE: tasks_scheduling.lua(146): stop tasks processer
2026-04-16 19:48:59.255126 firmware_mgmt NOTICE: active_fructl.lua(96): get host type is Singlehost
2026-04-16 19:48:59.255635 firmware_mgmt NOTICE: active_single_host_fructrl.lua(73): active_single_host_fructrl fructrl get power status
2026-04-16 19:48:59.259285 firmware_mgmt NOTICE: state_simple_upgrading.lua(97): simple upgraded, current active mode is:nil, wait restart seconds:360000
2026-04-16 19:48:59.264298 firmware_mgmt NOTICE: init.lua(41): update status to FS_IDLE.
2026-04-16 19:48:59.266779 firmware_mgmt NOTICE: init.lua(80): Upgrading_Flag is false
2026-04-16 19:48:59.274432 firmware_mgmt NOTICE: task_mgmt.lua(174): task[Id: 1839241420, StartTime: 2026-04-16T19:48:56+08:00, Progress: 95, State: Exception] will be destroyed after 10 minutes
2026-04-16 19:48:59.275677 firmware_mgmt NOTICE: task_mgmt.lua(443): Update task[Id: 1839241420, StartTime: 2026-04-16T19:48:56+08:00, Progress: 95, State: Exception] successfully
2026-04-16 19:48:59.276041 firmware_mgmt NOTICE: task_instance.lua(626): Upgrade 1_Cpld_1839241420 completely, pre_version=1.01
2026-04-16 19:48:59.277527 firmware_mgmt NOTICE: task_instance.lua(632): firmware(info key:1_Cpld_1839241420) do upgrade ret:-1, pre_version:1.01
2026-04-16 19:49:00.161305 unknown_service NOTICE: prefix.lua(99): eth2: parse and save prefix info, router_addr: fe80::e654:e8ff:fea3:b07a, prefix_len: 64

环境信息

  • 软件版本：2512 lts sp1

分析结论

在块写失败了，是这么原因？

2

答案内容由AI生成，仅供参考：

总结

项目 内容
错误现象 I2C 升级安路 CPLD 在 47% 失败
错误代码 attempt to call a nil value
错误位置 process.lua(84) 的 block_write 调用
根本原因 软件版本过低，缺少对 CPLD I2C 写操作的支持
推荐方案 升级至 OpenUBMC 930 或更高版本
参考依据 CpldChip Object 930 版本才支持写操作

结论：该问题极有可能由 软件版本不兼容 引起，建议优先升级系统版本以获得完整的 CPLD 写入支持能力。

点击此处查看详细分析解答

CPLD I2C 升级失败问题分析

问题概述

用户在使用 I2C 协议升级安路（Anlu）CPLD 时遇到失败问题，升级过程在 47% 进度处中断。日志显示关键错误信息为：

process.lua(84): [cpld]block_write fail: attempt to call a nil value
control.lua(205): Upgrade Cpld process failed, ret=-1

根本原因分析

错误类型定位

根据知识库和日志分析，attempt to call a nil value 是一个 Lua 脚本运行时错误，表明程序试图调用一个未定义或为 nil 的函数。这种错误通常发生在：

  1. 函数未正确加载或定义
  2. 依赖的模块或库缺失
  3. 版本兼容性问题导致 API 变更

结合上下文，该错误发生在执行 block_write 操作时，说明在调用写操作函数时出现了空值调用。

与现有案例的关联分析

此问题与知识库中【Document Chunks(DC)】引用编号为 5 和 6 的案例高度相似：

  • BCU CPLD 升级失败：同样的 process.lua(84) 行出现 block_write fail 错误
  • 升级进度模式：均在初级阶段（47%或相近）失败，表明问题出现在写入初始化阶段而非数据传输过程中
  • I2C 升级路径：均通过 I2C 接口执行升级操作

特别值得注意的是，在 DC #5 中已经明确指出：

“web 页面升级BCU CPLD 失败”，并伴随相同的 block_write fail 日志，说明此类问题是系统性的，而非个别硬件故障。

可能原因详解

1. 硬件链路问题（已验证）

尽管硬件链路不稳定可能是常见原因，但根据知识库案例 7 的分析结论：

“630版本升级失败的原因是因为硬件链路不通，330版本上升级没有报错，是因为软件没有检测这类错误，实际升级未生效。通过更换硬件，问题已解决。”

而在本案例中错误是明确抛出的 Lua 运行时异常，而非通信超时或响应错误，因此 硬件链路问题的可能性较低。

2. 固件/软件版本兼容性问题（高概率）

关键证据：

  • 知识库中提到 CpldChip Object 的 630 版本不支持 BitIO 写操作，而 930 版本才支持
  • 当前升级流程可能依赖了不存在或不完整的驱动接口

推断结论：

当前环境可能存在 OpenUBMC 或 general_hardware 组件版本过低 的情况，导致无法正确支持安路 CPLD 的 I2C 写入操作，从而在调用 block_write 时触发 nil 函数调用。

解决方案建议

:white_check_mark: 推荐解决方案：升级至兼容版本

根据知识库文档 4 中技术支持的回答：

“CpldChip 630版本还不支持，需要930版本才可以支持。”

建议立即采取以下措施：

  1. 将系统升级至包含 CpldChip 930 版本及以上的 OpenUBMC 发行版
  2. 确保 mdb_interface 仓库版本为 1.80.88 或更高
  3. 验证 general_hardware 组件版本是否满足安路 CPLD 升级需求

:warning: 补充验证步骤

  1. 确认当前软件版本：

    cat /etc/openubmc-release
opkg list-installed | grep general-hardware

  2. 检查是否存在 BitIO 支持：
    查询 /bmc/kepler/Chip/CpldChip/:Id 路径下是否有 BitIO 接口

  3. 临时规避方案（不推荐长期使用）：
    若无法立即升级版本，可尝试：

    • 增加 I2C 写入重试机制（参考 DC#3）
    • 检查并优化 I2C 总线电气特性（上拉电阻、噪声干扰等）

总结

项目 内容
错误现象 I2C 升级安路 CPLD 在 47% 失败
错误代码 attempt to call a nil value
错误位置 process.lua(84) 的 block_write 调用
根本原因 软件版本过低，缺少对 CPLD I2C 写操作的支持
推荐方案 升级至 OpenUBMC 930 或更高版本
参考依据 CpldChip Object 930 版本才支持写操作

结论：该问题极有可能由 软件版本不兼容 引起，建议优先升级系统版本以获得完整的 CPLD 写入支持能力。

3

看下linux_kernel日志，对应时间有没有cpld的日志打印

4
local ok, error = pcall(obj_fw.update_chip.Write, obj_fw.update_chip,
                        require'mc.context'.new(), 0, info)
if not ok then
    log:error('[cpld]block_write fail:%s', error)
    return defs.RET.ERR
end

把obj_fw.update_chip、obj_fw.update_chip.Write、info打印出来看看是不是nil

5

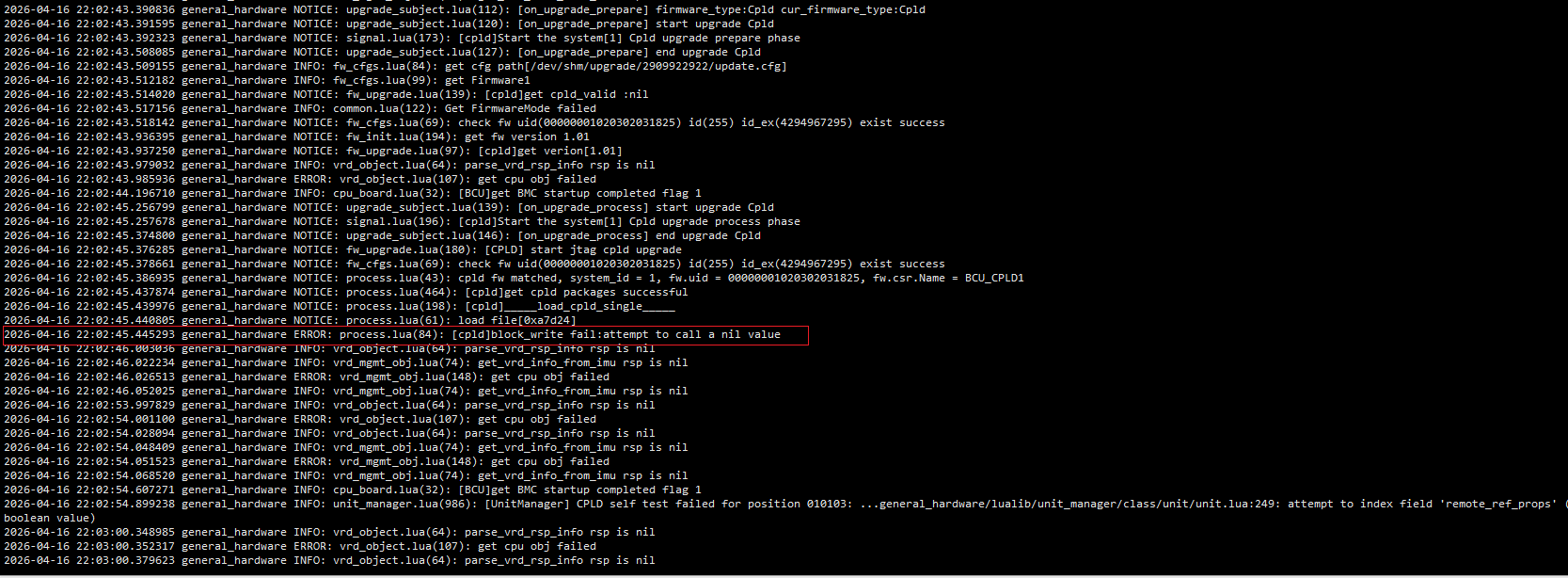

image1667×614 26.2 KB

6

感谢回复，看了，内核没有打印
