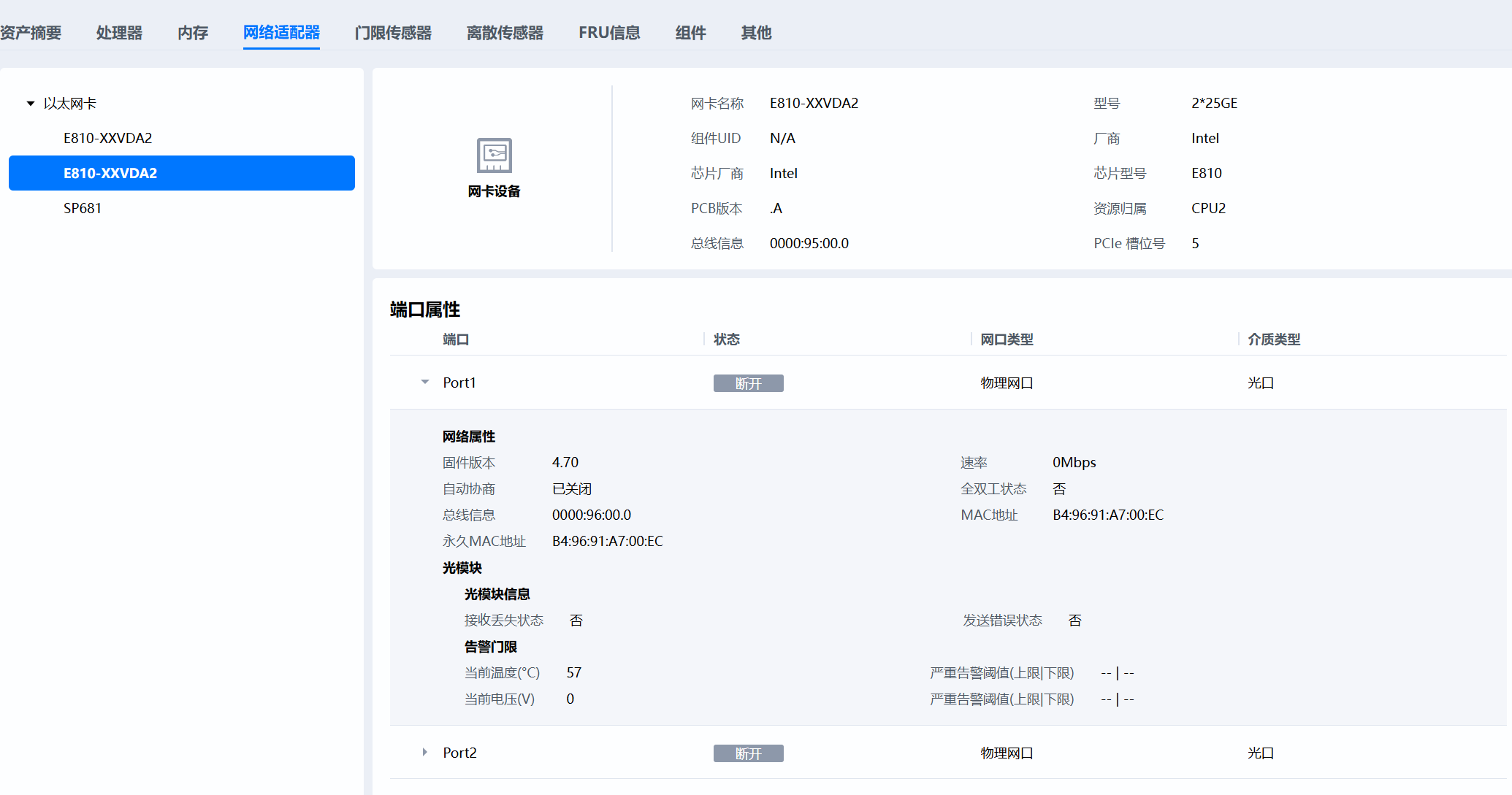

在适配 Intel E810-XXVDA2 网卡过程中，系统信息->网络适配器 中该网卡信息正常显示

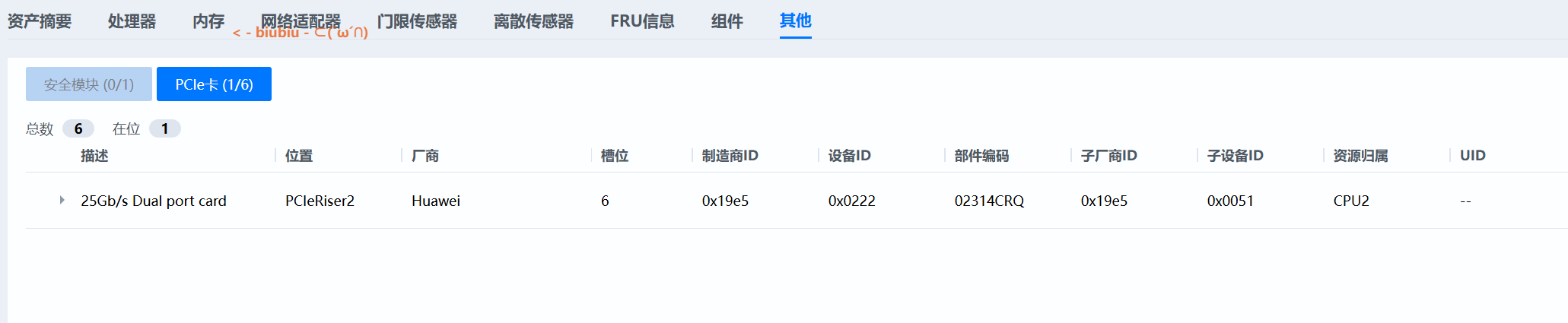

系统信息->其他->PCie卡 中信息未显示，
请问这些信息需要应该配置好那个类和属性才能出来。现SR如下。
14140130_8086159b_80860003.sr
{
"FormatVersion": "3.00",
"DataVersion": "3.00",
"Unit": {
"Type": "PCIeCard",
"Name": "PCIeCard_1"
},
"ManagementTopology": {
"Anchor": {
"Buses": [
"I2cMux_9545Chan3"
]
}
},
"Objects": {
"PCIeDevice_1": {
"DeviceName": "PCIe Card $ (E810-XXVDA2)",
"FunctionClass": 2,
"Position": "",
"DiagnosticFault": 0,
"PredictiveFault": 0,
"LinkSpeedReduced": 0,
"Container": "${Container}",
"GroupPosition": "PCIeDevice_${GroupPosition}",
"DeviceType": 8,
"PCIeDeviceType": "MultiFunction",
"SlotType": "HalfLength",
"FunctionProtocol": "PCIe",
"FunctionType": "Physical"
},
"PCIeCard_1": {
"SlotID": "<=/PCIeDevice_1.SlotID",
"NodeID": "<=/PCIeDevice_1.SlotID |> string.format('PCIeCard%s', $1)",
"Name": "E810-XXVDA2",
"BoardName": "E810-XXVDA2",
"Description": "E810-XXVDA2",
"FunctionClass": 2,
"VendorID": "0x8086",
"DeviceID": "0x159b",
"SubVendorID": "0x8086",
"SubDeviceID": "0x0003",
"Position": "<=/PCIeDevice_1.Position",
"LaneOwner": "<=/PCIeDevice_1.SocketID",
"FirmwareVersion": "<=/NetworkAdapter_1.FirmwareVersion",
"Manufacturer": "Intel",
"PartNumber": "",
"Health": "<=/Component_PCIeCard.Health",
"Model": "E810",
"DeviceName": "<=/PCIeDevice_1.DeviceName",
"LinkSpeed": "<=/NetworkAdapter_1.LinkSpeed",
"LinkSpeedCapability": "<=/NetworkAdapter_1.LinkSpeedCapability",
"PcbVersion": "N/A",
"Bus": "<=/PCIeDevice_1.Bus",
"Device": "<=/PCIeDevice_1.Device",
"Function": "<=/PCIeDevice_1.Function",
"DevBus": "<=/PCIeDevice_1.DevBus",
"DevDevice": "<=/PCIeDevice_1.DevDevice",
"DevFunction": "<=/PCIeDevice_1.DevFunction",
"SerialNumber": ""
},
"BoardPCIeCard_1": {
"Slot": "<=/PCIeDevice_1.SlotID",
"UID": "N/A",
"Name": "E810-XXVDA2",
"Manufacturer": "Intel",
"Type": "PCIeCard",
"Description": "2*25GE",
"PartNumber": "N/A",
"LogicVersion": "N/A",
"SRVersion": "",
"BoardID": 65535,
"BoardType": "BoardPCIeCard",
"Number": 1,
"DeviceName": "<=/PCIeDevice_1.DeviceName",
"Position": "<=/PCIeDevice_1.Position",
"LinkWidthCapability": "<=/NetworkAdapter_1.LinkWidthCapability",
"LinkSpeedCapability": "<=/NetworkAdapter_1.LinkSpeedCapability",
"LinkWidth": "<=/NetworkAdapter_1.LinkWidth",
"LinkSpeed": "<=/NetworkAdapter_1.LinkSpeed",
"AssociatedResource": "<=/NetworkAdapter_1.AssociatedResource",
"BoardNodeId": "<=/PCIeDevice_1.DeviceName",
"FruID": "<=/Component_PCIeCard.FruId"
},
"Component_PCIeCard": {
"FruId": 255,
"Instance": "PCIeDevice_1.SlotID",
"Type": 8,
"BoardId": 65535,
"Name": "<=/PCIeDevice_1.DeviceName",
"Location": "<=/PCIeDevice_1.Position",
"Manufacturer": "Intel",
"PartNumber": "",
"UniqueId": "N/A",
"Presence": 1,
"Health": 0,
"GroupId": 1,
"PowerState": 1,
"ReplaceFlag": 0,
"SerialNumber": "<=/PCIeCard_1.SerialNumber",
"NodeID": "<=/PCIeDevice_1.SlotID"
},
"Component_Port1": {
"FruId": 255,
"Instance": 1,
"Type": 41,
"Name": "Port1",
"Presence": 1,
"Health": 0,
"PowerState": 1
},
"Component_Port2": {
"FruId": 255,
"Instance": 2,
"Type": 41,
"Name": "Port2",
"Presence": 1,
"Health": 0,
"PowerState": 1
},
"Entity_PCIeCard": {
"Id": 11,
"Name": "PCIeCard",
"Instance": 101,
"PowerState": 1,
"Presence": 1
},
"NetworkAdapter_1": {
"SystemID": 1,
"SlotNumber": "<=/PCIeDevice_1.SlotID",
"Name": "E810-XXVDA2",
"Manufacturer": "Intel",
"Description": "2*25GE",
"Position": "<=/PCIeDevice_1.Position",
"DeviceLocator": "<=/PCIeDevice_1.DeviceName",
"Type": 3,
"Model": "E810",
"ModelDescription": "2*25GE",
"ChipVendor": "Intel",
"ChipManufacturer": "Intel",
"NetworkPortCount": 2,
"BoardName": "E810-XXVDA2",
"VendorID": "0x8086",
"DeviceID": "0x159b",
"SubsystemVendorID": "0x8086",
"SubsystemDeviceID": "0x0003",
"ComponentUniqueID": "N/A",
"PCBVersion": "<=/PCIeCard_1.PcbVersion",
"@Default": {
"PCBVersion": ".A"
},
"FruId": 225,
"SupportedMctp": true,
"HotPluggable": false,
"ReadyToRemove": false,
"AttentionHotPlugState": 225,
"SocketId": "<=/PCIeDevice_1.SocketID",
"Bus": "<=/PCIeDevice_1.Bus",
"Device": "<=/PCIeDevice_1.Device",
"Function": "<=/PCIeDevice_1.Function",
"DevBus": "<=/PCIeDevice_1.DevBus",
"DevDevice": "<=/PCIeDevice_1.DevDevice",
"DevFunction": "<=/PCIeDevice_1.DevFunction",
"LinkWidthCapability": "N/A",
"LinkSpeedCapability": "N/A",
"LinkWidth": "N/A",
"LinkSpeed": "N/A",
"TemperatureCelsius": 0,
"TemperatureStatus": 0,
"BandwidthThresholdPercent": 100,
"ParentCardSlotId": 225,
"Health": "<=/Component_PCIeCard.Health"
},
"NetworkPort_1": {
"@Parent": "NetworkAdapter_1",
"systemID": 1,
"PortID": 0,
"NetDevFuncType": 32,
"MediumType": "FiberOptic",
"SupportedLinkCapability": "25G"
},
"NetworkPort_2": {
"@Parent": "NetworkAdapter_1",
"systemID": 1,
"PortID": 1,
"NetDevFuncType": 32,
"MediumType": "FiberOptic",
"SupportedLinkCapability": "25G"
},
"OpticalModule_1": {
"@Parent": "NetworkPort_1",
"ChannelNum": 1,
"TemperatureCelsius": 0,
"PowerState": 0,
"Presence": 0,
"IsSupportedType": 0,
"Temp_UpperThresholdCritical": 125,
"FaultState": 0,
"SupplyVoltage": 0,
"LowerThresholdCritical": 0,
"UpperThresholdCritical": 0
},
"OpticalModule_2": {
"@Parent": "NetworkPort_2",
"ChannelNum": 2,
"TemperatureCelsius": 0,
"PowerState": 0,
"Presence": 0,
"IsSupportedType": 0,
"Temp_UpperThresholdCritical": 125,
"FaultState": 0,
"SupplyVoltage": 0,
"LowerThresholdCritical": 0,
"UpperThresholdCritical": 0
},
"ThresholdSensor_Temp": {
"AssertMask": 640,
"DeassertMask": 12928,
"ReadingMask": 6168,
"Linearization": 0,
"M": 100,
"RBExp": 224,
"UpperNoncritical": 95,
"UpperCritical": 105,
"PositiveHysteresis": 2,
"NegativeHysteresis": 2,
"OwnerId": 32,
"OwnerLun": 0,
"EntityId": "<=/Entity_PCIeCard.Id",
"EntityInstance": "<=/Entity_PCIeCard.Instance",
"Initialization": 127,
"Capabilities": 232,
"SensorType": 1,
"ReadingType": 1,
"SensorName": "<=/PCIeDevice_1.SlotID |> string.format('PCIe NIC%s Chip Temp',$1)",
"Unit": 128,
"BaseUnit": 1,
"ModifierUnit": 0,
"Analog": 1,
"NominalReading": 25,
"NominalMaximum": 0,
"NominalMinimun": 0,
"MaximumReading": 127,
"MinimumReading": 128,
"Reading": "<=/NetworkAdapter_1.TemperatureCelsius",
"ReadingStatus": "<=/NetworkAdapter_1.TemperatureStatus"
},
"ThresholdSensor_OpticalModuleTemp": {
"AssertMask": 128,
"DeassertMask": 28800,
"ReadingMask": 2056,
"Linearization": 0,
"M": 1,
"UpperNoncritical": 75,
"PositiveHysteresis": 2,
"NegativeHysteresis": 2,
"OwnerId": 32,
"OwnerLun": 0,
"EntityId": "<=/Entity_PCIeCard.Id",
"EntityInstance": "<=/Entity_PCIeCard.Instance",
"Initialization": 127,
"Capabilities": 232,
"SensorType": 1,
"ReadingType": 1,
"SensorName": "<=/PCIeDevice_1.SlotID |> string.format('PCIe NIC%s OptMod Temp',$1)",
"Unit": 128,
"BaseUnit": 1,
"ModifierUnit": 0,
"Analog": 1,
"NominalReading": 25,
"NominalMaximum": 0,
"NominalMinimun": 0,
"MaximumReading": 127,
"MinimumReading": 128,
"Reading": "<=/OpticalModule_1.TemperatureCelsius;<=/OpticalModule_2.TemperatureCelsius |> expr($1 > $2 ? $1 : $2 )",
"ReadingStatus": "<=/OpticalModule_1.TemperatureCelsius;<=/OpticalModule_2.TemperatureCelsius |> expr($1 > $2 ? $1 : $2) |> expr($1 > 0 ? 0 : 2)"
},
"Event_OverTemp": {
"EventKeyId": "PCIeCard.PCIeCardOverTemp",
"Condition": "<=/ThresholdSensor_Temp.UpperNoncritical",
"Hysteresis": "<=/ThresholdSensor_Temp.PositiveHysteresis",
"Reading": "<=/NetworkAdapter_1.TemperatureCelsius |> expr(($1 >= 255) ? 30 : $1) |> expr($1 & 255)",
"@default": {
"Condition": 105
},
"OperatorId": 4,
"Enabled": true,
"Component": "#/Component_PCIeCard",
"AdditionalInfo": "1",
"DescArg2": "#/Component_PCIeCard.Name",
"DescArg3": "PcieCard",
"DescArg4": "#/Event_OverTemp.Reading",
"DescArg5": "#/ThresholdSensor_Temp.UpperNocritical"
},
"Event_OverOptModTemp": {
"Reading": "<=/ThresholdSensor_OpticalModuleTemp.Reading |> expr(($1 >= 255) ? 30 : $1) |> expr($1 & 255)",
"@default": {
"Condition": 75
},
"OperatorId": 4,
"Enabled": true,
"Component": "#/Component_PCIeCard",
"AdditionalInfo": "1",
"DescArg2": "#/Component_PCIeCard.Name",
"DescArg3": "PcieCard",
"DescArg4": "#/Event_OverOptModTemp.Reading",
"DescArg5": "#/ThresholdSensor_OpticalModuleTemp.UpperNocritical"
},
"Event_TempFail": {
"EventKeyId": "PCIeCard.PCIeCardTempFail",
"Condition": 1,
"Reading": "<=/NetworkAdapter_1.TemperatureStatus",
"OperatorId": 5,
"Enabled": true,
"Component": "#/Component_PCIeCard",
"AdditionalInfo": "2",
"DescArg2": "#/Component_PCIeCard.Name",
"DescArg3": "E810 Chip"
},
"Event_PcieCardReplaceMntr": {
"EventKeyId": "PCIeCard.PCIeCardReplace",
"Condition": 1,
"Reading": "<=/Component_PCIeCard.ReplaceFlag",
"OperatorId": 5,
"Enabled": true,
"AdditionalInfo": "1",
"DescArg1": "#/Component_PCIeCard.Name",
"DescArg2": "#/Component_PCIeCard.PreviousSN",
"DescArg3": "#/Component_PCIeCard.SerialNumber",
"Component": "#/Component_PCIeCard"
},
"Event_PCIeBandWidth": {
"EventKeyId": "PCIeCard.PCIeCardBandWidthDecreased",
"Condition": 1,
"Reading": "<=/PCIeDevice_1.BandwidthReduction",
"OperatorId": 5,
"Enabled": true,
"AdditionalInfo": "2",
"DescArg2": "#/PCIeDevice_1.SlotID",
"DescArg3": "(E810-XXVDA2)",
"Component": "#/Component_PCIeCard"
},
"Event_PCIeLinkSpeed": {
"EventKeyId": "PCIeCard.PCIeCardLinkSpeedReduced",
"Condition": 1,
"Reading": "<=/PCIeDevice_1.LinkSpeedReduced",
"OperatorId": 5,
"Enabled": true,
"AdditionalInfo": "2",
"DescArg2": "#/PCIeDevice_1.SlotID",
"DescArg3": "(E810-XXVDA2)",
"Component": "#/Component_PCIeCard"
},
"Event_PCIeCardUCE": {
"EventKeyId": "PCIeCard.PCIeCardUncorrectableErr",
"Condition": 1,
"LedFaultCode": "q$$",
"Reading": "<=/PCIeDevice_1.DiagnosticFault;<=/PCIeDevice_1.UCEByBIOS |> expr(($1+$2) == 0 ? 0 : 1)",
"OperatorId": 5,
"Enabled": true,
"AdditionalInfo": "2",
"DescArg2": "#/Component_PCIeCard.Name",
"DescArg4": "NA",
"Component": "#/Component_PCIeCard"
},
"Event_PCIeCardCE": {
"EventKeyId": "PCIeCard.PCIeCardCEHardFailure",
"Condition": 1,
"LedFaultCode": "q$$",
"Reading": "<=/PCIeDevice_1.PredictiveFault",
"OperatorId": 5,
"Enabled": true,
"AdditionalInfo": "2",
"DescArg2": "#/Component_PCIeCard.Name",
"Component": "#/Component_PCIeCard"
},
"Event_Port1LinkDown": {
"EventKeyId": "Port.PortDisconnected",
"Condition": 0,
"Reading": "<=/NetworkPort_1.LinkStatusNumeric",
"@Default": {
"Reading": 0
},
"OperatorId": 8,
"Enabled": true,
"AdditionalInfo": "1,3",
"DescArg1": "#/PCIeCard_1.DeviceName",
"DescArg3": "Port 1",
"Component": "#/Component_Port1"
},
"Event_Port2LinkDown": {
"EventKeyId": "Port.PortDisconnected",
"Condition": 0,
"Reading": "<=/NetworkPort_2.LinkStatusNumeric",
"@Default": {
"Reading": 0
},
"OperatorId": 8,
"Enabled": true,
"AdditionalInfo": "1,3",
"DescArg1": "#/PCIeCard_1.DeviceName",
"DescArg3": "Port 2",
"Component": "#/Component_Port2"
},
"Event_Port1BWUsageMntr": {
"EventKeyId": "NICCard.SystemNetWorkBandwidthUsageHigh",
"Condition": "<=/NetworkAdapter_1.BandwithThresholdPercent",
"Reading": "<=/NetworkPort_1.BandwidthUsagePercent",
"@default": {
"Condition": 100
},
"OperatorId": 4,
"Enabled": true,
"Component": "#/Component_PCIeCard",
"AdditionalInfo": "1,3",
"DescArg1": "${Slot}",
"DescArg3": "Port 1",
"DescArg4": "#/Event_Port1BWUsageMntr.Reading",
"DescArg5": "#/Event_Port1BWUsageMntr.Condition"
},
"Event_Port2BWUsageMntr": {
"EventKeyId": "NICCard.SystemNetWorkBandwidthUsageHigh",
"Condition": "<=/NetworkAdapter_1.BandwithThresholdPercent",
"Reading": "<=/NetworkPort_1.BandwidthUsagePercent",
"@default": {
"Condition": 100
},
"OperatorId": 4,
"Enabled": true,
"Component": "#/Component_PCIeCard",
"AdditionalInfo": "1,3",
"DescArg1": "${Slot}",
"DescArg3": "Port 2",
"DescArg4": "#/Event_Port2BWUsageMntr.Reading",
"DescArg5": "#/Event_Port2BWUsageMntr.Condition"
},
"CoolingRequirement_1_52": {
"RequirementId": "${Slot} |> expr((52 << 8) | $1)",
"Description": "E810网卡调速",
"MonitoringStatus": "<=/NetworkAdapter_1.TemperatureStatus",
"MonitoringValue": "<=/NetworkAdapter_1.TemperatureCelsius",
"FailedValue": 100,
"TargetTemperatureCelsius": 85,
"MaxAllowedTemperatureCelsius": 90,
"TargetTemperatureRangeCelsius": [],
"ThresholdValue": [],
"AlarmSpeed": [],
"SmartCoolingTargetTemperature": [],
"CustomSupported": false,
"CustomTargetTemperatureCelsius": 255,
"SensorName": "#/ThresholdSensor_Temp.SensorName"
},
"CoolingArea_1_52": {
"AreaId": 52,
"RequirementIdx": 52,
"PolicyIdxGroup": [],
"FanIdxGroup": [
1,
2,
3,
4
]
}
}
}
