问题描述

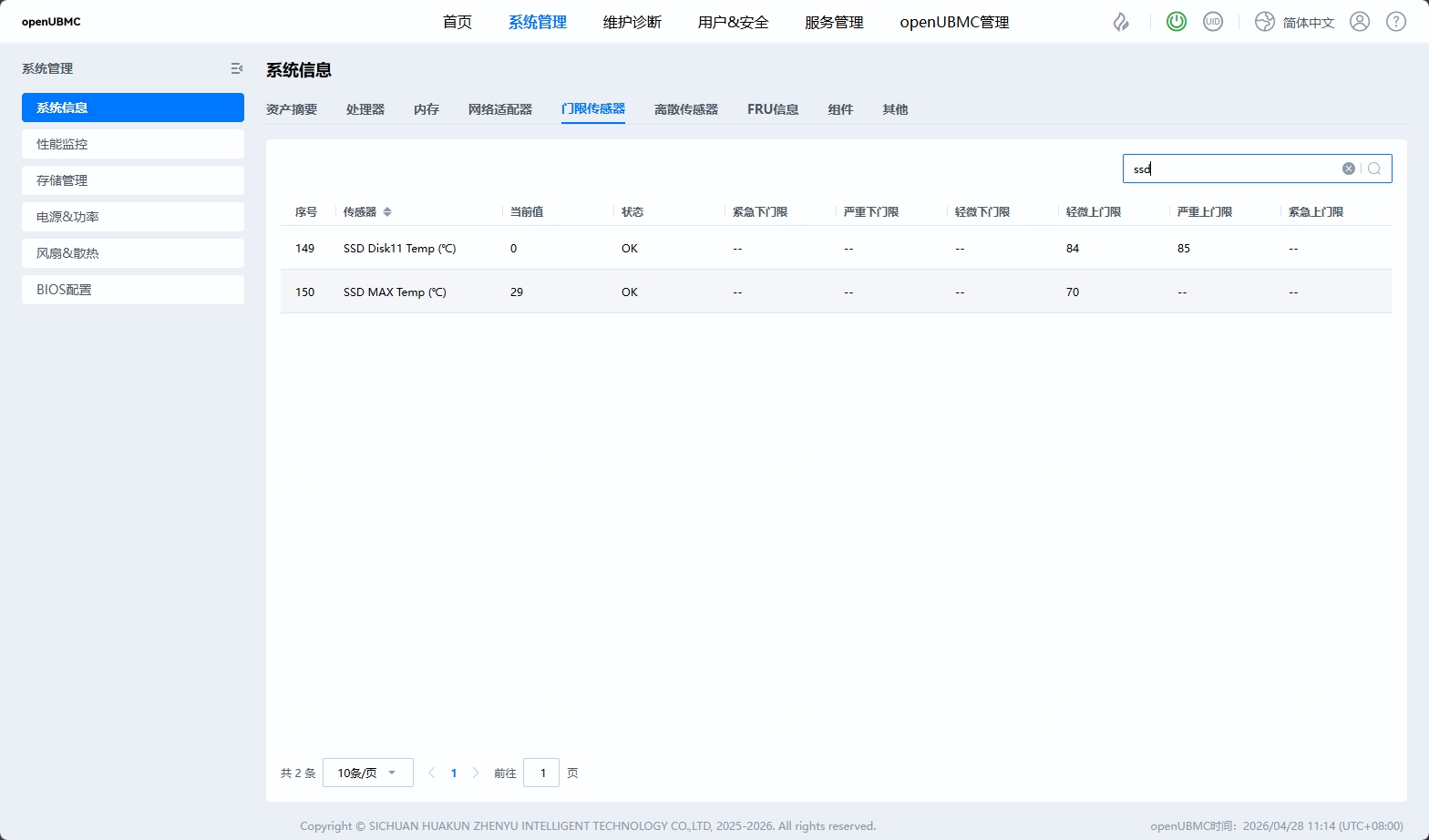

nvme盘上电状态下热拔，os下电后插入盘再上电，硬盘温度为0
环境信息
- 软件版本：OpenUBMC2512

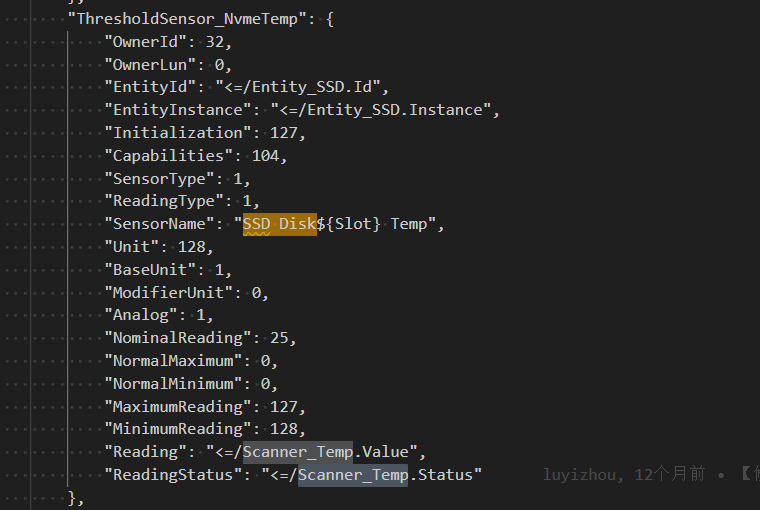

配置如下，lsobj Scanner找不到sr里配置的Scanner_Temp
% lsprop ThresholdSensor_NvmeTemp_0101030C01
bmc.kepler.Object.Properties
ClassName=“ThresholdSensor”
ObjectIdentifier=[1,“1”,“1”,“0101030C01”]
ObjectName=“ThresholdSensor_NvmeTemp_0101030C01”
TraceSamplingRate=0
bmc.kepler.Systems.ThresholdSensor
Capabilities=104
EntityId=4
EntityInstance=108
LowerCritical=0
LowerNoncritical=0
LowerNonrecoverable=0
NegativeHysteresis=2
OriginalReading=0
OwnerLun=0
PositiveHysteresis=2
Reading=0
ReadingMask=6168
ReadingStatus=0
SensorIdentifier=“”
SensorName=“SSD Disk11 Temp”
SensorNumber=155
SensorType=1
UpperCritical=85
UpperNoncritical=84
UpperNonrecoverable=0
bmc.kepler.Systems.ThresholdSensorDisplay
AssertStatus=0
Health=“OK”
LowerCriticalDisplay=“0.000”
LowerNoncriticalDisplay=“0.000”
LowerNonrecoverableDisplay=“0.000”
NegativeHysteresisDisplay=“2.000”
PositiveHysteresisDisplay=“2.000”
ReadingDisplay=“0.000”
Status=“Enabled”
UnitDisplay=“degrees C”
UpperCriticalDisplay=“85.000”
UpperNoncriticalDisplay=“84.000”
UpperNonrecoverableDisplay=“0.000”
Private
Accuracy=0
Analog=1
AssertMask=29312
B=0
BA=0
BaseUnit=1
BelongsToSystem=false
DeassertMask=29312
Initialization=127
IsValid=true
Linearization=0
M=100
MT=0
MaximumReading=127
MinimumReading=128
ModifierUnit=0
NominalReading=25
NormalMaximum=0
NormalMinimum=0
OwnerId=32
RBExp=224
ReadingType=1
Unit=128
% lsobj Scanner
Scanner_0v75_01010504
Scanner_0v75_01010505
Scanner_0v8_01010504
Scanner_0v8_01010505
Scanner_100M0ClockFailMntr_010102
Scanner_100M1ClockFailMntr_0101
Scanner_100M1ClockFailMntr_010102
Scanner_100M3ClockFailMntr_010102
Scanner_100M4ClockFailMntr_010102
Scanner_100M5ClockFailMntr_010102
Scanner_100M6ClockFailMntr_010102
Scanner_100MClockFailMntr_010105
Scanner_12v1_010102
Scanner_12v2_010102
Scanner_12v3_010102
Scanner_156M25ClockFailMntr_010102
Scanner_1v2_01010504
Scanner_1v2_01010505
Scanner_1v8_01010504
Scanner_1v8_01010505
Scanner_32kClockFailMntr_010102
Scanner_3v1_010102
Scanner_3v2_010102
Scanner_3v3_01010504
Scanner_3v3_01010505
Scanner_50M1ClockFailMntr_0101
Scanner_5v_010102
Scanner_A1a_010102
Scanner_A1c_010102
Scanner_A2a_010102
Scanner_A2c_010102
Scanner_A3a_010102
Scanner_A4a_010102
Scanner_Adc_Status_0101
Scanner_B1a_010102
Scanner_B2a_010102
Scanner_B3a_010102
Scanner_B3c_010102
Scanner_B4a_010102
Scanner_B4c_010102
Scanner_BCUHisport_0_0101021A
Scanner_BCUHisport_1_0101021A
Scanner_BCUPwrOnTimeOut_01010218
Scanner_BCUPwrSigDrop_01010218
Scanner_BoardID_01010504
Scanner_BoardID_01010505
Scanner_C3a_010102
Scanner_C4a_010102
Scanner_C5a_010102
Scanner_C6a_010102
Scanner_C7b_010102
Scanner_CLU_1_0101
Scanner_CPUStatus_010102
Scanner_CableRiser_0101
Scanner_CardPowerGood_01010A
Scanner_CcChipOnAttachStatus_0101
Scanner_CcChipSgmAttachStatus_0101
Scanner_ChassisCoverStatus_0101
Scanner_ChassisIntrusionACOff_0101
Scanner_ChassisIntrusionACOn_0101
Scanner_Cpld1Status_0101021A
Scanner_Cpu1CATERRAccessor_010102
Scanner_Cpu1ProcessorHotAccessor_010102
Scanner_Cpu1ThermalTripAccessor_010102
Scanner_Cpu2CATERRAccessor_010102
Scanner_Cpu2ProcessorHotAccessor_010102
Scanner_Cpu2ThermalTripAccessor_010102
Scanner_CpuBoard_Temp_010102
Scanner_CpuBrdPresenceMntr_0101
Scanner_CpuMosTempHigh_1_010102
Scanner_CpuMosTempHigh_2_010102
Scanner_CpuMosTempHigh_3_010102
Scanner_CpuMosTempHigh_4_010102
Scanner_D4b_010102
Scanner_D5a_010102
Scanner_D6a_010102
Scanner_D7a_010102
Scanner_DPU1SDIPresenceMntr_0101
Scanner_DPU2SDIPresenceMntr_0101
Scanner_Dftenabled_010102
Scanner_DiskBPPwrFault_010103
Scanner_DiskBPPwrOnTimeOut_010103
Scanner_Drive0ActivationAccessor_010103
Scanner_Drive0FalutAccessor_010103
Scanner_Drive0LocateAccessor_010103
Scanner_Drive0PresentAccessor_010103
Scanner_Drive0PresentAccessor_010104
Scanner_Drive10ActivationAccessor_010103
Scanner_Drive10FalutAccessor_010103
Scanner_Drive10LocateAccessor_010103
Scanner_Drive10PCIeType_010103
Scanner_Drive10PresentAccessor_010103
Scanner_Drive11ActivationAccessor_010103
Scanner_Drive11FalutAccessor_010103
Scanner_Drive11LocateAccessor_010103
Scanner_Drive11PCIeType_010103
Scanner_Drive11PresentAccessor_010103
Scanner_Drive12PCIeType_010103
Scanner_Drive1ActivationAccessor_010103
Scanner_Drive1FalutAccessor_010103
Scanner_Drive1LocateAccessor_010103
Scanner_Drive1PCIeType_010103
Scanner_Drive1PresentAccessor_010103
Scanner_Drive1PresentAccessor_010104
Scanner_Drive2ActivationAccessor_010103
Scanner_Drive2FalutAccessor_010103
Scanner_Drive2LocateAccessor_010103
Scanner_Drive2PCIeType_010103
Scanner_Drive2PresentAccessor_010103
Scanner_Drive3ActivationAccessor_010103
Scanner_Drive3FalutAccessor_010103
Scanner_Drive3LocateAccessor_010103
Scanner_Drive3PCIeType_010103
Scanner_Drive3PresentAccessor_010103
Scanner_Drive4ActivationAccessor_010103
Scanner_Drive4FalutAccessor_010103
Scanner_Drive4LocateAccessor_010103
Scanner_Drive4PCIeType_010103
Scanner_Drive4PresentAccessor_010103
Scanner_Drive5ActivationAccessor_010103
Scanner_Drive5FalutAccessor_010103
Scanner_Drive5LocateAccessor_010103
Scanner_Drive5PCIeType_010103
Scanner_Drive5PresentAccessor_010103
Scanner_Drive6ActivationAccessor_010103
Scanner_Drive6FalutAccessor_010103
Scanner_Drive6LocateAccessor_010103
Scanner_Drive6PCIeType_010103
Scanner_Drive6PresentAccessor_010103
Scanner_Drive7ActivationAccessor_010103
Scanner_Drive7FalutAccessor_010103
Scanner_Drive7LocateAccessor_010103
Scanner_Drive7PCIeType_010103
Scanner_Drive7PresentAccessor_010103
Scanner_Drive8ActivationAccessor_010103
Scanner_Drive8FalutAccessor_010103
Scanner_Drive8LocateAccessor_010103
Scanner_Drive8PCIeType_010103
Scanner_Drive8PresentAccessor_010103
Scanner_Drive9ActivationAccessor_010103
Scanner_Drive9FalutAccessor_010103
Scanner_Drive9LocateAccessor_010103
Scanner_Drive9PCIeType_010103
Scanner_Drive9PresentAccessor_010103
Scanner_ECUSys12V1_0101
Scanner_ECUSys12V2_0101
Scanner_ECUSys12V3_0101
Scanner_ECUSys12V4_0101
Scanner_ECUSys12V5_0101
Scanner_ECUSys3V1_0101
Scanner_ECUSys5V1_0101
Scanner_ECUSys5V2_0101
Scanner_EXU2BCUHisport_0_0101021A
Scanner_EXU2BCUHisport_1_0101021A
Scanner_EXUPwrOnTimeOut_0101
Scanner_EXUPwrSigDrop_0101
Scanner_ExpMos1TempHigh_0101
Scanner_ExpMos2TempHigh_0101
Scanner_ExpMos3TempHigh_0101
Scanner_ExpMos4TempHigh_0101
Scanner_ExpMos5TempHigh_0101
Scanner_Fan1_FSpeed_010106
Scanner_Fan1_Presence_010106
Scanner_Fan1_RSpeed_010106
Scanner_Fan2_FSpeed_010106
Scanner_Fan2_Presence_010106
Scanner_Fan2_RSpeed_010106
Scanner_Fan3_FSpeed_010106
Scanner_Fan3_Presence_010106
Scanner_Fan3_RSpeed_010106
Scanner_Fan4_FSpeed_010106
Scanner_Fan4_Presence_010106
Scanner_Fan4_RSpeed_010106
Scanner_Fan5_FSpeed_010106
Scanner_Fan5_Presence_010106
Scanner_Fan5_RSpeed_010106
Scanner_Fan6_FSpeed_010106
Scanner_Fan6_Presence_010106
Scanner_Fan6_RSpeed_010106
Scanner_Fan7_FSpeed_010106
Scanner_Fan7_Presence_010106
Scanner_Fan7_RSpeed_010106
Scanner_Fan8_FSpeed_010106
Scanner_Fan8_Presence_010106
Scanner_Fan8_RSpeed_010106
Scanner_FanBoardVin1_010106
Scanner_FanBoardVin2_010106
Scanner_FanBrdPwr1_010101
Scanner_FanBrdPwr1_010106
Scanner_FanBrdPwr2_010101
Scanner_FanBrdPwr2_010106
Scanner_FanBrdTemp_010106
Scanner_FanCableMntr_0101
Scanner_FanPowOnTimeAcc_010106
Scanner_FanPoweroffAcc_010106
Scanner_Fan_FSpeed_01010600
Scanner_Fan_FSpeed_01010602
Scanner_Fan_FSpeed_01010604
Scanner_Fan_FSpeed_01010606
Scanner_Fan_FSpeed_01010608
Scanner_Fan_FSpeed_0101060A
Scanner_Fan_FSpeed_0101060C
Scanner_Fan_FSpeed_0101060E
Scanner_Fan_Presence_01010600
Scanner_Fan_Presence_01010602
Scanner_Fan_Presence_01010604
Scanner_Fan_Presence_01010606
Scanner_Fan_Presence_01010608
Scanner_Fan_Presence_0101060A
Scanner_Fan_Presence_0101060C
Scanner_Fan_Presence_0101060E
Scanner_Fan_RSpeed_01010600
Scanner_Fan_RSpeed_01010602
Scanner_Fan_RSpeed_01010604
Scanner_Fan_RSpeed_01010606
Scanner_Fan_RSpeed_01010608
Scanner_Fan_RSpeed_0101060A
Scanner_Fan_RSpeed_0101060C
Scanner_Fan_RSpeed_0101060E
Scanner_Gpio31_01
Scanner_Gpio74_01
Scanner_GpuBP12VDropDetect_010105
Scanner_GpuBP12VGPU1_010105
Scanner_GpuBP12VGPU2_010105
Scanner_GpuBP12VGPU3_010105
Scanner_GpuBP12VGPU4_010105
Scanner_GpuBP12VGPU5_010105
Scanner_GpuBP12VGPU6_010105
Scanner_GpuBP12VGPU7_010105
Scanner_GpuBP12VGPU8_010105
Scanner_GpuBP12VS10_010105
Scanner_GpuBP12VS1_010105
Scanner_GpuBP12VS25_010105
Scanner_GpuBP3V3S10_010105
Scanner_GpuBP3V3S1_010105
Scanner_GpuBP3V3S25_010105
Scanner_GpuBP3V3S69_010105
Scanner_GpuBP3V3STBY_010105
Scanner_GpuBPBootPowerFaultCode_010105
Scanner_GpuBPBootPwrFault_010105
Scanner_GpuBPMosTempHigh_010105
Scanner_GpuBPPllChipModel_010105
Scanner_GpuBPPllFWVersion_010105
Scanner_GpuBPPowerGood_010105
Scanner_GpuBPRunningPowerFaultCode_010105
Scanner_GpuBPRunningPwrFault_010105
Scanner_GpuBPSTBYPowerGood_010105
Scanner_GpuBPTemp_010105
Scanner_GpuBPTmpFailed_010105
Scanner_HDD_BP_0101
Scanner_HddBPPresent_010101
Scanner_HddBPTemp_010103
Scanner_LeftEar_0101
Scanner_LeftLm75_0101
Scanner_Lm75_Inlet2_0101
Scanner_Lm75_Inlet_0101
Scanner_Lm75_Outlet_0101
Scanner_M2TransferCardTemp_010104
Scanner_M2_0101
Scanner_MemPower_0101021A
Scanner_MemPwrSensorStatus_0101021A
Scanner_NIC_Lm75_01010A
Scanner_OCP1Pres_0101
Scanner_OCP2Pres_0101
Scanner_PS1Pres_0101
Scanner_PS2Pres_0101
Scanner_PS3Pres_0101
Scanner_PS4Pres_0101
Scanner_PcbID_010104
Scanner_PowerBtnEvt_0101
Scanner_PowerGdFlash_0101
Scanner_PowerGd_0101
Scanner_PowerGood_010101
Scanner_PowerGood_010102
Scanner_PowerGood_0101021A
Scanner_PowerGood_010103
Scanner_PowerGood_01010504
Scanner_PowerGood_01010505
Scanner_PowerGood_010106
Scanner_PowerGood_01010600
Scanner_PowerGood_01010602
Scanner_PowerGood_01010604
Scanner_PowerGood_01010606
Scanner_PowerGood_01010608
Scanner_PowerGood_0101060A
Scanner_PowerGood_0101060C
Scanner_PowerGood_0101060E
Scanner_PowerGood_01010A
Scanner_PowerGood_01010C
Scanner_PowerGood_01010D
Scanner_PowerGood_01010E
Scanner_PowerGood_01010F
Scanner_PowerOnTimeout_0101
Scanner_PsuIPOKStatus_01010C
Scanner_PsuIPOKStatus_01010D
Scanner_PsuIPOKStatus_01010E
Scanner_PsuIPOKStatus_01010F
Scanner_PsuOPOKStatus_01010C
Scanner_PsuOPOKStatus_01010D
Scanner_PsuOPOKStatus_01010E
Scanner_PsuOPOKStatus_01010F
Scanner_PwrOkSigDrop_0101
Scanner_R100MClockFrequencyOffset_0_0101021A
Scanner_R100MClockFrequencyOffset_1_0101021A
Scanner_R100MClockFrequencyOffset_3_0101021A
Scanner_R100MClockFrequencyOffset_4_0101021A
Scanner_R100MClockFrequencyOffset_5_0101021A
Scanner_R100MClockFrequencyOffset_6_0101021A
Scanner_R156M25ClockFrequencyOffset_0101021A
Scanner_RTCBatteryMntr_010102
Scanner_RightEar_0101
Scanner_RightLm75_0101
Scanner_Rtc_010102
Scanner_SEU_Inner_1_010103
Scanner_SEU_Inner_2_010103
Scanner_SW_0101
Scanner_SensorStatus_1_010102
Scanner_SerdesLom1CardType_0101
Scanner_SerdesLom1Pres_0101
Scanner_SerdesLom1Pres_010101
Scanner_SerdesLom2CardType_0101
Scanner_SerdesLom2Pres_0101
Scanner_SerdesLom2Pres_010101
Scanner_Slot10Presence_010105
Scanner_Slot1Presence_010105
Scanner_Slot2Presence_010105
Scanner_Slot3Presence_010105
Scanner_Slot4Presence_010105
Scanner_Slot5Presence_010105
Scanner_Slot6Presence_010105
Scanner_Slot7Presence_010105
Scanner_Slot8Presence_010105
Scanner_Slot9Presence_010105
Scanner_SyncSignalAbnormal_0101021A
Scanner_SysRstDetected_010102
Scanner_SystemCPUErrorRestart_010102
Scanner_SystemClockOutputTimeOut_0101021A
Scanner_SystemStatus_010102
Scanner_TPMPresence_010102
Scanner_UBCPresenceMntr_0101
Scanner_UIDButtonEvent_0101
Scanner_UIDButtonLongEvent_0101
Scanner_left_LM75_Status_0101
Scanner_outlet_LM75_Status_0101
Scanner_pwr2_010102
Scanner_pwr3_010102
Scanner_pwr4_010102
Scanner_right_LM75_Status_0101
Scanner_vid_010102
Scanner_vid_0101021A
