补充材料：

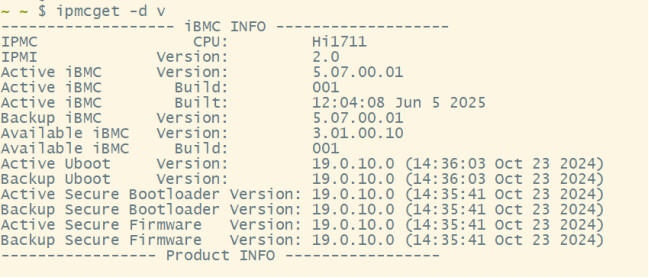

1.在能正常更新的设备上，查询原始iBMC版本信息为：

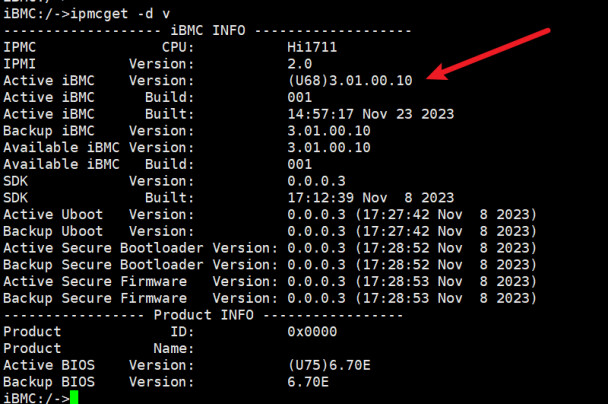

更新过渡包后，查询过度包版本信息为：

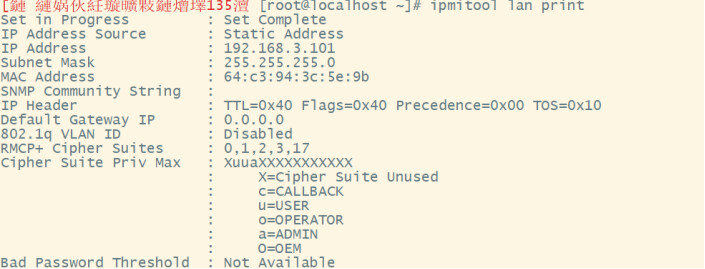

排查正常板卡在iBMC阶段，通过CPU端使用命令ipmitool lan print打印的IP地址为：
正常板卡显示的也是192.168.3.101，但是从BMC端查询IP实际为192.168.2.100，也能ping通；异常板卡在CPU端查询到的IP地址为192.168.3.101，无法从本地获取到IP，确认异常板卡里面程序为iBMC原始代码，由于网络不通，没法更新，所有板卡192.168.3.101 均ping不通；
2.网址为192.168.2.100，可以ping通无法使用网址登录的板卡，后查明为在更新过度包阶段，后通过ssh登录更新最终镜像后，功能恢复正常。
剩余3台无法ping通，芯片内程序为iBMC，启动串口打印如下：
[17:31:50.908][20260907_17:31:50.907]
[17:32:27.321]S1234567!Serial Probe!
[17:32:27.321]66
[17:32:27.321]U-Boot Runing…
[17:32:27.321]
[17:32:27.350]Boot Strap:0000FAFE
[17:32:27.351]Reboot Control:00000001
[17:32:27.351]Boot from Area 0(boot_cnt0[1] boot_cnt1[0])
[17:32:27.351]Serial Probe!
[17:32:27.370]66Core: 3 devices, 3 uclasses
[17:32:27.371]MMC:
[17:32:27.482]Loading Environment from nowhere… OK
[17:32:27.482]In: serial
[17:32:27.482]Out: serial
[17:32:27.482]Err: serial
[17:32:27.482]Net: Net Initialization Skipped
[17:32:27.483]No ethernet found.
[17:32:27.498]blk_probe
[17:32:27.498]detect ext4img info: block cnt:385024,block size:1024
[17:32:27.498]log2blksz 10
[17:32:27.704]3433536 bytes read in 188 ms (17.4 MiB/s)
[17:32:27.705]13262 bytes read in 5 ms (2.5 MiB/s)
[17:32:27.979]5242880 bytes read in 286 ms (17.5 MiB/s)
[17:32:27.980]## Booting kernel from Legacy Image…
[17:32:27.980] Image Name: linux
[17:32:27.992] Image Type: Linux Kernel Image (uncompressed)
[17:32:28.674] Verifying Checksum … OK
[17:32:28.675]## Flattened Device Tree blob.
[17:32:28.675] Booting using the fdt blob.
[17:32:28.675] Loading Kernel Image
[17:32:28.849] Using Device Tree in place.
[17:32:29.010]fdt_fix_memory_prop: vce_flag is 0 (SYSCTRL_INITIAL_INF: 0xbfefffff)
[17:32:29.033]bootNOTICE: Before BL31 init mmu
[17:32:29.033]NOTICE: ddr_size=0x3
[17:32:29.033]NOTICE: BL31 init mmu done
[17:32:29.033]NOTICE: BL31: v0.00:0
[17:32:29.041]NOTICE: BL31: Built : 17:14:20, 17:14:20
[17:32:29.041]NOTICE: fiq init done !
[17:32:30.410]Uncompressing… done, booting…
[17:32:31.234][ 0.700147] KBOX: ddrram: fs magic not match. It’s ok if first time using this device
[17:32:31.247][ 0.708805] KBOX: kbox_exception_dump_valid abort for NULL dump_path!
[17:32:31.357][ 0.810418] **** Total Boot time: 810 ms, uncompress initrd cost 229 ms ****
[17:32:31.373][ 0.819173] 1970-01-01 00:00:00 [AT]mount …
[17:32:31.388]rootfstype=ext4
[17:32:31.388]extroot=/dev/nvm_active
[17:32:31.388]extinit=/sbin/init
[17:32:31.403][ 0.849504] 1970-01-01 00:00:00 [FT] now execute /sbin/init
[17:32:31.421][ 0.864322] 1970-01-01 00:00:00 [AT]insmod…
[17:32:31.531][ 0.990847] [RTOS fiq]@@ register fiq
[17:32:31.686][ 1.111167] 1970-01-01 00:00:01 insmod success!
[17:32:31.686][ 1.125766] 1970-01-01 00:00:01 [AT]create node…
[17:32:32.320][ 1.765054] 1970-01-01 00:00:01 check gpp0-2 loop_cnt = 0
[17:32:32.337]/dev/mmcblk0gp0
[17:32:32.368]/dev/mmcblk0gp1
[17:32:32.383]/dev/mmcblk0gp2
[17:32:32.434][ 1.868061] 1970-01-01 00:00:01 [AT] emmc active power-on write protection
[17:32:32.448][ 1.890361] 1970-01-01 00:00:01 [AT]mount partitions…
[17:32:32.496][ 1.942953] 1970-01-01 00:00:01 [AT]switch to second rootfs…
[17:32:32.687]starting pid 1211, tty ‘’: ‘/etc/rc.d/rc.sysinit’
[17:32:32.703]
[17:32:32.705] -=# RTOS 1.0 #=-
[17:32:32.705]
[17:32:32.705]mount file system
[17:32:32.718]mount: mounting sysfs on /sys failed: Device or resource busy
[17:32:33.218]Loading the kernel modules:
[17:32:33.218]Making device instances:
[17:32:33.995][ 3.452003] SCSI subsystem initialized
[17:32:35.201][ 4.661713] 8,1970-01-01 00:00:04,1306,gmac_phy_init,1101,mac(0) not used phy.
[17:32:36.245][ 5.710780] 9,1970-01-01 00:00:05,1306,gmac_phy_init,1101,mac(1) not used phy.
[17:32:37.304][ 6.759972] 10,1970-01-01 00:00:06,1306,gmac_phy_init,1099,mac(2)'s phy_addr is 3.
[17:32:38.398][ 7.850225] 11,1970-01-01 00:00:07,1306,gmac_phy_init,1101,mac(3) not used phy.
[17:32:39.416][ 8.877669] 12,1970-01-01 00:00:08,1306,gmac_hw_set_port_mode_all,635,SGMII auto-negotiation not complete(0x0)
[17:32:39.429][ 8.889448] 13,1970-01-01 00:00:08,1306,gmac_probe,1433,gmac init ok!
[17:32:39.459][ 8.915434] 14,1970-01-01 00:00:08,1323,sys_info_probe,1960,sys_info init ok!
[17:32:39.508][ 8.968180] 15,1970-01-01 00:00:08,1340,p80_probe,210,p80 use LPC!
[17:32:39.525][ 8.991901] 16,1970-01-01 00:00:08,1346,bt_probe,781,bt use LPC!
[17:32:39.540][ 8.998474] 17,1970-01-01 00:00:08,1346,bt_probe,806,bt init ok!
[17:32:39.558][ 9.020964] 18,1970-01-01 00:00:09,1352,sol_probe,906,SOL use LPC!
[17:32:39.566][ 9.027205] 19,1970-01-01 00:00:09,1352,sol_ddrinfo_update,814,SOL[0] Init Rx-start 0x86400000, Rx-size 0x2, Tx-start 0x86000000, Tx-size 0x4.
[17:32:39.580][ 9.040592] 20,1970-01-01 00:00:09,1352,sol_ddrinfo_update,814,SOL[1] Init Rx-start 0x86600000, Rx-size 0x3, Tx-start 0x86500000, Tx-size 0x2.
[17:32:39.592][ 9.053905] 21,1970-01-01 00:00:09,1352,sol_ddrinfo_update,814,SOL[2] Init Rx-start 0x86900000, Rx-size 0x3, Tx-start 0x86800000, Tx-size 0x2.
[17:32:39.606][ 9.066789] 22,1970-01-01 00:00:09,1352,sol_ddrinfo_update,814,SOL[3] Init Rx-start 0x86c00000, Rx-size 0x3, Tx-start 0x86b00000, Tx-size 0x2.
[17:32:39.618][ 9.080198] 23,1970-01-01 00:00:09,1352,sol_probe,935,uart sol init ok!
[17:32:39.635][ 9.101617] 24,1970-01-01 00:00:09,1358,dboot_probe,545,dboot probe start.
[17:32:39.651][ 9.108904] 25,1970-01-01 00:00:09,1358,dboot_probe_info,519,boot from uboot 0
[17:32:39.651][ 9.116226] 26,1970-01-01 00:00:09,1358,dboot_probe_info,520,BMC reset count: 0
[17:32:39.657][ 9.123543] 27,1970-01-01 00:00:09,1358,dboot_probe_info,521,BMC unsec reset count: 0
[17:32:39.674][ 9.131363] 28,1970-01-01 00:00:09,1358,dboot_probe_info,522,HOST reset count: 1
[17:32:39.674][ 9.138737] 29,1970-01-01 00:00:09,1358,dboot_probe_info,523,CHIP reset count: 0
[17:32:39.683][ 9.146124] 30,1970-01-01 00:00:09,1358,dboot_probe,567,dboot init ok!
[17:32:39.759][ 9.212474] 31,1970-01-01 00:00:09,1374,bmcrtc_of_probe,189,BMCRTC Device Registered.
[17:32:39.850][ 9.317259] 32,1970-01-01 00:00:09,1406,peci_probe,332,peci is 1 mode!
[17:32:39.870][ 9.324521] 33,1970-01-01 00:00:09,1406,peci_probe,346,peci init ok!
[17:32:39.917][ 9.381989] 34,1970-01-01 00:00:09,1424,hispi_setup_device,885,hispi_setup_device id 0x0!
[17:32:39.934][ 9.390625] 35,1970-01-01 00:00:09,1424,hispi_setup_device,885,hispi_setup_device id 0x1!
[17:32:40.047][ 9.501049] 36,1970-01-01 00:00:09,1455,pci_fix_ker_probe,527,probe OK
[17:32:40.060][ 9.523630] 37,1970-01-01 00:00:09,1459,deal_with_ext_addr,255,g_mctp_ext_mode:0 [0 Normal,1 Offset,2 Hi]
[17:32:40.068][ 9.533277] 38,1970-01-01 00:00:09,1459,mctp_reset,1480,reset mctp failed!
[17:32:40.079][ 9.541158] 39,1970-01-01 00:00:09,1459,mctp_dereset,1501,dereset mctp ok!
[17:32:40.386][ 9.850976] 40,1970-01-01 00:00:09,1501,vce_dac_param_set,244,dac param register is: 0x8038e3f
[17:32:40.395][ 9.859741] 41,1970-01-01 00:00:09,1501,vce_driver_probe,295,irq_mask 0xd80
[17:32:40.457]/dev/mmcblk0gp0
[17:32:40.524]/dev/mmcblk0gp1
[17:32:40.524][ 9.960907] 42,1970-01-01 00:00:09,41,gmac_link_handle,409,eth2 link up!
[17:32:40.524]/dev/mmcblk0gp2
[17:32:40.648][ 10.114448] random: fast init done
[17:32:40.679]/dev/mmcblk0p1: recovering journal
[17:32:40.851]/dev/mmcblk0p1: clean, 2321/62592 files, 27650/249995 blocks
[17:32:40.869]insmod: can’t insert ‘/lib/modules/5.10.0/rtos_snapshot.ko’: File exists
[17:32:40.869]Setting console log message level:
[17:32:40.888]/dev/mmcblk0 /dev/mmcblk0gp1 /dev/mmcblk0p2 /dev/mmcblk0p7
[17:32:40.903]/dev/mmcblk0boot0 /dev/mmcblk0gp2 /dev/mmcblk0p3 /dev/mmcblk0p8
[17:32:40.903]/dev/mmcblk0boot1 /dev/mmcblk0gp3 /dev/mmcblk0p5
[17:32:40.911]/dev/mmcblk0gp0 /dev/mmcblk0p1 /dev/mmcblk0p6
[17:32:40.921]%{var} dev lib media root usr
[17:32:40.932]bin etc lib64 mnt sbin var
[17:32:40.945]boot home linuxrc opt sys
[17:32:40.964]data init lost+found proc tmp
[17:32:40.964]e2fsck 1.46.4 (18-Aug-2021)
[17:32:40.964]Pass 1: Checking inodes, blocks, and sizes
[17:32:40.979]Pass 2: Checking directory structure
[17:32:41.080]Pass 3: Checking directory connectivity
[17:32:41.080]Pass 4: Checking reference counts
[17:32:41.080]Pass 5: Checking group summary information
[17:32:41.092]
[17:32:41.092] 2321 inodes used (3.71%, out of 62592)
[17:32:41.092] 28 non-contiguous files (1.2%)
[17:32:41.104] 3 non-contiguous directories (0.1%)
[17:32:41.104] # of inodes with ind/dind/tind blocks: 0/0/0
[17:32:41.105] Extent depth histogram: 2297/11
[17:32:41.115] 27650 blocks used (11.06%, out of 249995)
[17:32:41.115] 0 bad blocks
[17:32:41.115] 1 large file
[17:32:41.115]
[17:32:41.115] 1430 regular files
[17:32:41.127] 877 directories
[17:32:41.127] 0 character device files
[17:32:41.127] 0 block device files
[17:32:41.127] 0 fifos
[17:32:41.127] 0 links
[17:32:41.140] 3 symbolic links (3 fast symbolic links)
[17:32:41.140] 2 sockets
[17:32:41.140]------------
[17:32:41.140] 2312 files
[17:32:41.151]Recover datafs begin
[17:32:41.169]Recover datafs no need ubootrecoverflag=0
[17:32:41.219][ 10.675903] random: crng init done
[17:32:41.219][ 10.679320] random: 7 urandom warning(s) missed due to ratelimiting
[17:32:41.330]Setting hostname:
[17:32:41.330]Settingup the sysctl configurations:
[17:32:41.359]Setting up interface lo:
[17:32:41.516]Running local startup scripts.
[17:32:41.684]$Starting crond: /etc/rc.d/rc.start/S90crond: line 492: logger: not found
[17:32:41.687] [$ OK ]
[17:32:41.705]crond[1616]: crond (busybox 1.34.1) started, log level 8
[17:32:41.705]
[17:32:42.838]mke2fs 1.46.4 (18-Aug-2021)
[17:32:42.853]/dev/pramdisk0 is capable of DAX but current block size 1024 is different from system page size 4096 so filesystem will not support DAX.
[17:32:42.860]Creating filesystem with 12284 1k blocks and 3072 inodes
[17:32:42.860]Filesystem UUID: 14ae9849-62a1-4ee4-9e17-f25b62f8edfb
[17:32:42.860]Superblock backups stored on blocks:
[17:32:42.869] 8193
[17:32:42.869]
[17:32:42.869]Allocating group tables: done
[17:32:42.899]Writing inode tables: done
[17:32:42.900]Writing superblocks and filesystem accounting information: done
[17:32:42.900]
[17:32:42.900]load pmfs done
[17:32:42.976]chmod: /data/etc/xinetd.d/*: No such file or directory
[17:32:43.056]Thu Jan 1 00:00:12 CGP 1970 Platform ID:;Board ID:ff
[17:32:43.451]web.img:0749fdb8441b6540041b7fca32cc729700989e2464bfc58f2ec223acfe4c7ad7 e26a34fc0c6401fb6e00c2de9a282712db6a06069f5c6bfee1363bd6ace8b26b
[17:32:43.475]chmod: DATA_EXTERN_PATH: No such file or directory
[17:32:45.465]Thu Jan 1 00:00:14 CGP 1970 unpack /opt/pme/extern/_ff.tar.gz successful
[17:32:45.477]insmod: can’t insert ‘/lib/modules/5.10.0/kernel/drivers/usb/ehci-hcd_1710.ko’: No such file or directory
[17:32:45.502]insmod: can’t insert ‘/lib/modules/5.10.0/kernel/drivers/usb/ohci-hcd_1710.ko’: No such file or directory
[17:32:45.502][ 14.968533] FS-Cache: Loaded
[17:32:45.549]insmod: can’t insert ‘/lib/modules/5.10.0/kernel/lib/oid_registry.ko’: No such file or directory
[17:32:45.696][ 15.149534] nfs: Unknown symbol nfs_ssc_unregister (err -2)
[17:32:45.696][ 15.155646] nfs: Unknown symbol nfs_ssc_register (err -2)
[17:32:45.793][ 15.238793] nfs: Unknown symbol nfs_ssc_unregister (err -2)
[17:32:45.793][ 15.244727] nfs: Unknown symbol nfs_ssc_register (err -2)
[17:32:45.837]insmod: can’t insert ‘/lib/modules/5.10.0/kernel/fs/nfs/nfs.ko’: unknown symbol in module, or unknown parameter
[17:32:45.917][ 15.377681] FS-Cache: Netfs ‘nfs’ registered for caching
[17:32:45.955]insmod: can’t insert ‘/lib/modules/5.10.0/kernel/fs/nls/nls_cp437.ko’: No such file or directory
[17:32:45.955]insmod: can’t insert ‘/lib/modules/5.10.0/kernel/fs/nls/nls_iso8859-1.ko’: No such file or directory
[17:32:46.035][ 15.487872] FS-Cache: Netfs ‘cifs’ registered for caching
[17:32:46.035][ 15.493928] Key type cifs.idmap registered
[17:32:46.045]insmod: can’t insert ‘/opt/pme/lib/modules/ko/mctp_drv.ko’: File exists
[17:32:46.110]insmod: can’t insert ‘/lib/modules/5.10.0/kernel/net/netfilter/x_tables.ko’: File exists
[17:32:46.154][ 15.612948] hub 2-0:1.0: config failed, hub doesn’t have any ports! (err -19)
[17:32:46.313]insmod: can’t insert ‘/lib/modules/5.10.0/kernel/lib/crc-ccitt.ko’: File exists
[17:32:46.330]chmod: /usr/bin/bmcdfx: No such file or directory
[17:32:46.334]chmod: /usr/bin/busybox1711: No such file or directory
[17:32:46.345]/opt/pme/init/start.sh: /opt/pme/extern/insmod_driver.sh: line 68: /usr/bin/busybox1711: not found
[17:32:46.427]kernel.core_pattern = /data/var/coredump/core-%e-2023-11-23-14_59_02
[17:32:47.799]
[17:32:47.799]------ Shared Memory Segments --------
[17:32:47.799]key shmid owner perms bytes nattch status
[17:32:47.799]
[17:32:47.807]chmod: /opt/pme/script/syslog_restart_with_tz.sh: Read-only file system
[17:32:47.840]starting pid 1998, tty ‘’: ‘/sbin/getty -L 115200 ttyS0 vt102’
[17:32:47.946][ dfm ] Init log file successfully.
[17:32:47.946][ dfm ] Start watchdog successfully.
[17:32:47.946][ dfm ] Create share memory successfully.
[17:32:47.946]
[17:32:47.969]Authorized uses only. All activity may be monitored and reported.
[17:32:48.144]starting pid 2015, tty ‘’: '/usr/sbin/syslog-ng -f /etc/syslog-ng/syslog-ng.conf -p /var/run/syslogd.pid -F -R /opt/pme/pram/
[17:32:48.578]svrmonit:"/usr/sbin/syslog-ng -f /etc/syslog-ng/syslog-ng.conf -p /var/run/syslogd.pid -F -R /opt/pme/pram/syslog-ng.persist
[17:32:48.602]starting pid 2018, tty ‘’: ‘/opt/pme/apps/fsync’
[17:32:49.472][ dfm ] Load platform.xml successfully.
[17:32:49.647][ dfm ] Load base.xml successfully.
[17:32:49.679][ dfm ] Load _ff.xml successfully.
[17:32:49.883][ dfm ] Load BASEBOARD_ff.xml successfully.
[17:32:49.883][ dfm ] Load BMCCard_01.xml successfully.
[17:32:49.890][ dfm ] Load Serial_a1.xml successfully.
[17:32:49.899][ dfm ] Load InletOutlet_a1.xml successfully.
[17:32:49.918][ dfm ] Load M2_SATA_SSD_00.xml successfully.
[17:32:49.928][ dfm ] Load CustomizeSensor_ff.xml successfully.[ 19.386579] [I2C-02-RT<-5|-5>] M<0x57|0x1|0x0|3|15> L<2|4|0> C<2|0|4> E<0x801|0x0|0x0|0x1> I<0x0|0x710|0x0>
[17:32:49.936]
[17:32:49.953][ 19.400887] [I2C-02-RT<-5|-5>] M<0x30|0x0|0x0|3|300> L<7|0|0> C<7|0|0> E<0x1|0x0|0x0|0x1> I<0x0|0x710|0x0>
[17:32:49.953][ dfm ] Load Eth_a1.xml successfully.
[17:32:49.962][ dfm ] Load PRODUCT_FF_00.xml successfully.
[17:32:50.005][ dfm ] Load COOLING_00.xml successfully.
[17:32:50.047][ dfm ] Load MPC_00.xml successfully.
[17:32:50.047][ 19.474318] [I2C-02-RT<-5|-5>] M<0x30|0x0|0x0|3|300> L<7|0|0> C<7|0|0> E<0x1|0x0|0x0|0x1> I<0x0|0x710|0x0>
[17:32:50.059][ dfm ] Load resources successfully.
[17:32:50.464][ dfm ] Initialize config successfully.
[17:32:50.658][ dfm ] Restore property value successfully.
[17:32:50.658][ dfm ] Create sync sem4 successfully.
[17:32:50.690][ dfm ] Framwork management process started successfully.
[17:32:50.690][ FileManage ] register module FileManage.
[17:32:50.716][ dfm ] Apps register check (timeout:40).
[17:32:50.779][ portal ] register module portal.
[17:32:50.791][ security_policy ] register module security_policy.
[17:32:50.839][ usb_mgmt ] register module usb_mgmt.
[17:32:50.876][ portal ] portal register result 0.
[17:32:50.876][ Dft ] register module Dft.
[17:32:50.953][ BIOS ] register module BIOS.
[17:32:51.003][ ddns ] register module ddns.
[17:32:51.003][ agentless ] register module agentless.
[17:32:51.003][ MCTP ] register module MCTP.
[17:32:51.052][ ipmi_app ] register module ipmi_app.
[17:32:51.052][ discovery ] register module discovery.
[17:32:51.052][ NetConfig ] register module NetConfig.
[17:32:51.083][ PowerMgnt ] register module PowerMgnt.
[17:32:51.083][ PcieSwitch ] register module PcieSwitch.
[17:32:51.083][ kvm_vmm ] register module kvm_vmm.
[17:32:51.097][ diagnose ] register module diagnose.
[17:32:51.102][ LicenseMgnt ] register module LicenseMgnt.
[17:32:51.104][ net_nat ] register module net_nat.
[17:32:51.113][ sensor_alarm ] register module sensor_alarm.
[17:32:51.129][ ipmi_app ] ipmi_app register result 0.
[17:32:51.129][ ddns ] ddns register result 0.
[17:32:51.144][ CpuMem ] register module CpuMem.
[17:32:51.162][ StorageMgnt ] register module StorageMgnt.
[17:32:51.162][ ai_mgmt ] register module ai_mgmt.
[17:32:51.162][ UPGRADE ] register module UPGRADE.
[17:32:51.177][ kvm_vmm ] kvm_vmm register result 0.
[17:32:51.177][ cooling_app ] register module cooling_app.
[17:32:51.196][ discovery ] discovery register result 0.
[17:32:51.196][ sensor_alarm ] sensor_alarm register result 0.
[17:32:51.208][ PowerMgnt ] PowerMgnt register result 0.
[17:32:51.225][ FruData ] register module FruData.
[17:32:51.225][ LicenseMgnt ] LicenseMgnt register result 0.
[17:32:51.242][ BMC ] register module BMC.
[17:32:51.242][ Snmp ] register module Snmp.
[17:32:51.248][ redfish ] register module redfish.
[17:32:51.248][ MaintDebug ] register module MaintDebug.
[17:32:51.248][ FruData ] FruData register result 0.
[17:32:51.254][ User ] register module User.
[17:32:51.264][ card_manage ] register module card_manage.
[17:32:51.264][ Payload ] register module Payload.
[17:32:51.270][ MaintDebug ] MaintDebug register result 0.
[17:32:51.285][ BIOS ] BIOS register result 0.
[17:32:51.302][ User ] User register result 0.
[17:32:51.318][ BMC ] BMC register result 0.
[17:32:51.333][ usb_mgmt ] usb_mgmt register result 0.
[17:32:51.365][ Dfp ] register module Dfp.
[17:32:51.382][ Dfp ] Dfp register result 0.
[17:32:51.399][ StorageMgnt ] StorageMgnt register result 0.
[17:32:51.399][ cooling_app ] cooling_app register result 0.
[17:32:51.431][ Payload ] Payload register result 0.
[17:32:51.431][ card_manage ] card_manage register result 0.
[17:32:51.478][ agentless ] agentless register result 0.
[17:32:51.493][ PcieSwitch ] PcieSwitch register result 0.
[17:32:51.527][ MCTP ] MCTP register result 0.
[17:32:51.529][ Snmp ] Snmp register result 0.
[17:32:51.542][ net_nat ] net_nat register result 0.
[17:32:51.591][ ai_mgmt ] ai_mgmt register result 0.
[17:32:51.652][ diagnose ] diagnose register result 0.
[17:32:51.731][ CpuMem ] CpuMem register result 0.
[17:32:51.839][ FileManage ] FileManage register result 0.
[17:32:51.871][ redfish ] redfish register result 0.
[17:32:51.920][ NetConfig ] NetConfig register result 0.
[17:32:51.920][ security_policy ] security_policy register result 0.
[17:32:51.968][ UPGRADE ] UPGRADE register result 0.
[17:32:51.980][ Dft ] Dft register result 0.
[17:32:52.346][ dfm ] all module complete register, start work.
[17:32:52.712][ dfm ] Apps register check ok, with i=2.
[17:32:52.868][ 22.323828] [I2C-02-RT<-5|-5>] M<0x30|0x0|0x0|3|300> L<7|0|0> C<7|0|0> E<0x1|0x0|0x0|0x1> I<0x0|0x710|0x0>
[17:32:52.900][ 22.352754] [I2C-02-RT<-5|-5>] M<0x30|0x0|0x0|3|300> L<7|0|0> C<7|0|0> E<0x1|0x0|0x0|0x1> I<0x0|0x710|0x0>
[17:32:52.931][ 22.380419] [I2C-02-RT<-5|-5>] M<0x30|0x0|0x0|3|300> L<7|0|0> C<7|0|0> E<0x1|0x0|0x0|0x1> I<0x0|0x710|0x0>
[17:32:52.957][ 22.411939] [I2C-02-RT<-5|-5>] M<0x30|0x0|0x0|3|300> L<7|0|0> C<7|0|0> E<0x1|0x0|0x0|0x1> I<0x0|0x710|0x0>
[17:32:52.980][ 22.430731] [I2C-02-RT<-5|-5>] M<0x30|0x0|0x0|3|300> L<7|0|0> C<7|0|0> E<0x1|0x0|0x0|0x1> I<0x0|0x710|0x0>
[17:32:53.011][ 22.460811] [I2C-02-RT<-5|-5>] M<0x30|0x0|0x0|3|300> L<7|0|0> C<7|0|0> E<0x1|0x0|0x0|0x1> I<0x0|0x710|0x0>
[17:32:53.025][ 22.488444] [I2C-02-RT<-5|-5>] M<0x30|0x0|0x0|3|300> L<7|0|0> C<7|0|0> E<0x1|0x0|0x0|0x1> I<0x0|0x710|0x0>
[17:32:53.067][ 22.522372] [I2C-02-RT<-5|-5>] M<0x30|0x0|0x0|3|300> L<7|0|0> C<7|0|0> E<0x1|0x0|0x0|0x1> I<0x0|0x710|0x0>
[17:32:53.090][ 22.540841] [I2C-02-RT<-5|-5>] M<0x30|0x0|0x0|3|300> L<7|0|0> C<7|0|0> E<0x1|0x0|0x0|0x1> I<0x0|0x710|0x0>
[17:32:53.136][ 22.594907] [I2C-02-RT<-5|-5>] M<0x30|0x0|0x0|3|300> L<7|0|0> C<7|0|0> E<0x1|0x0|0x0|0x1> I<0x0|0x710|0x0>
[17:32:53.160][ 22.621231] [I2C-02-RT<-5|-5>] M<0x30|0x0|0x0|3|300> L<7|0|0> C<7|0|0> E<0x1|0x0|0x0|0x1> I<0x0|0x710|0x0>
[17:32:53.178][ 22.632940] [I2C-02-RT<-5|-5>] M<0x30|0x0|0x0|3|300> L<7|0|0> C<7|0|0> E<0x1|0x0|0x0|0x1> I<0x0|0x710|0x0>
[17:32:53.200][ 22.650832] [I2C-02-RT<-5|-5>] M<0x30|0x0|0x0|3|300> L<7|0|0> C<7|0|0> E<0x1|0x0|0x0|0x1> I<0x0|0x710|0x0>
[17:32:53.217][ 22.670791] [I2C-02-RT<-5|-5>] M<0x30|0x0|0x0|3|300> L<7|0|0> C<7|0|0> E<0x1|0x0|0x0|0x1> I<0x0|0x710|0x0>
[17:32:53.228][ 22.690688] [I2C-02-RT<-5|-5>] M<0x30|0x0|0x0|3|300> L<7|0|0> C<7|0|0> E<0x1|0x0|0x0|0x1> I<0x0|0x710|0x0>
[17:32:53.246][ 22.705473] [I2C-02-RT<-5|-5>] M<0x30|0x0|0x0|3|300> L<7|0|0> C<7|0|0> E<0x1|0x0|0x0|0x1> I<0x0|0x710|0x0>
[17:32:53.260][ 22.721260] [I2C-02-RT<-5|-5>] M<0x30|0x0|0x0|3|300> L<7|0|0> C<7|0|0> E<0x1|0x0|0x0|0x1> I<0x0|0x710|0x0>
[17:32:53.276][ 22.733108] [I2C-02-RT<-5|-5>] M<0x30|0x0|0x0|3|300> L<7|0|0> C<7|0|0> E<0x1|0x0|0x0|0x1> I<0x0|0x710|0x0>
[17:32:53.288][ 22.748324] [I2C-02-RT<-5|-5>] M<0x30|0x0|0x0|3|300> L<7|0|0> C<7|0|0> E<0x1|0x0|0x0|0x1> I<0x0|0x710|0x0>
[17:32:53.308][ 22.760744] [I2C-02-RT<-5|-5>] M<0x30|0x0|0x0|3|300> L<7|0|0> C<7|0|0> E<0x1|0x0|0x0|0x1> I<0x0|0x710|0x0>
[17:32:53.326][ 22.779827] [I2C-02-RT<-5|-5>] M<0x30|0x0|0x0|3|300> L<7|0|0> C<7|0|0> E<0x1|0x0|0x0|0x1> I<0x0|0x710|0x0>
[17:32:53.341][ 22.800802] [I2C-02-RT<-5|-5>] M<0x30|0x0|0x0|3|300> L<7|0|0> C<7|0|0> E<0x1|0x0|0x0|0x1> I<0x0|0x710|0x0>
[17:32:53.371][ 22.823126] [I2C-02-RT<-5|-5>] M<0x30|0x0|0x0|3|300> L<7|0|0> C<7|0|0> E<0x1|0x0|0x0|0x1> I<0x0|0x710|0x0>
[17:32:53.456][ 22.919076] [I2C-02-RT<-5|-5>] M<0x30|0x0|0x0|3|300> L<7|0|0> C<7|0|0> E<0x1|0x0|0x0|0x1> I<0x0|0x710|0x0>
[17:32:53.466][ 22.929348] [I2C-02-RT<-5|-5>] M<0x30|0x0|0x0|3|300> L<7|0|0> C<7|0|0> E<0x1|0x0|0x0|0x1> I<0x0|0x710|0x0>
[17:32:53.477][ 22.940650] [I2C-02-RT<-5|-5>] M<0x30|0x0|0x0|3|300> L<7|0|0> C<7|0|0> E<0x1|0x0|0x0|0x1> I<0x0|0x710|0x0>
[17:32:53.488][ 22.951259] [I2C-02-RT<-5|-5>] M<0x30|0x0|0x0|3|300> L<7|0|0> C<7|0|0> E<0x1|0x0|0x0|0x1> I<0x0|0x710|0x0>
[17:32:53.501][ 22.961565] [I2C-02-RT<-5|-5>] M<0x30|0x0|0x0|3|300> L<7|0|0> C<7|0|0> E<0x1|0x0|0x0|0x1> I<0x0|0x710|0x0>
[17:32:53.514][ 22.973788] [I2C-02-RT<-5|-5>] M<0x30|0x0|0x0|3|300> L<7|0|0> C<7|0|0> E<0x1|0x0|0x0|0x1> I<0x0|0x710|0x0>
[17:32:53.525][ 22.983894] [I2C-02-RT<-5|-5>] M<0x30|0x0|0x0|3|300> L<7|0|0> C<7|0|0> E<0x1|0x0|0x0|0x1> I<0x0|0x710|0x0>
[17:32:53.540][ 22.994705] [I2C-02-RT<-5|-5>] M<0x30|0x0|0x0|3|300> L<7|0|0> C<7|0|0> E<0x1|0x0|0x0|0x1> I<0x0|0x710|0x0>
[17:32:53.564][ 23.009031] [I2C-02-RT<-5|-5>] M<0x30|0x0|0x0|3|300> L<7|0|0> C<7|0|0> E<0x1|0x0|0x0|0x1> I<0x0|0x710|0x0>
[17:32:53.564][ 23.020064] [I2C-02-RT<-5|-5>] M<0x30|0x0|0x0|3|300> L<7|0|0> C<7|0|0> E<0x1|0x0|0x0|0x1> I<0x0|0x710|0x0>
[17:32:53.576][ 23.038838] [I2C-02-RT<-5|-5>] M<0x30|0x0|0x0|3|300> L<7|0|0> C<7|0|0> E<0x1|0x0|0x0|0x1> I<0x0|0x710|0x0>
[17:32:53.592][ 23.049928] [I2C-02-RT<-5|-5>] M<0x30|0x0|0x0|3|300> L<7|0|0> C<7|0|0> E<0x1|0x0|0x0|0x1> I<0x0|0x710|0x0>
[17:32:53.600][ 23.063543] [I2C-02-RT<-5|-5>] M<0x30|0x0|0x0|3|300> L<7|0|0> C<7|0|0> E<0x1|0x0|0x0|0x1> I<0x0|0x710|0x0>
[17:32:53.612][ 23.073736] [I2C-02-RT<-5|-5>] M<0x30|0x0|0x0|3|300> L<7|0|0> C<7|0|0> E<0x1|0x0|0x0|0x1> I<0x0|0x710|0x0>
[17:32:53.627][ 23.084573] [I2C-02-RT<-5|-5>] M<0x30|0x0|0x0|3|300> L<7|0|0> C<7|0|0> E<0x1|0x0|0x0|0x1> I<0x0|0x710|0x0>
[17:32:53.637][ 23.095397] [I2C-02-RT<-5|-5>] M<0x30|0x0|0x0|3|300> L<7|0|0> C<7|0|0> E<0x1|0x0|0x0|0x1> I<0x0|0x710|0x0>
[17:32:53.648][ 23.106275] [I2C-02-RT<-5|-5>] M<0x30|0x0|0x0|3|300> L<7|0|0> C<7|0|0> E<0x1|0x0|0x0|0x1> I<0x0|0x710|0x0>
[17:32:53.659][ 23.117128] [I2C-02-RT<-5|-5>] M<0x30|0x0|0x0|3|300> L<7|0|0> C<7|0|0> E<0x1|0x0|0x0|0x1> I<0x0|0x710|0x0>
[17:32:53.689][ 23.140414] [I2C-02-RT<-5|-5>] M<0x30|0x0|0x0|3|300> L<7|0|0> C<7|0|0> E<0x1|0x0|0x0|0x1> I<0x0|0x710|0x0>
[17:32:53.706][ 23.160471] [I2C-02-RT<-5|-5>] M<0x30|0x0|0x0|3|300> L<7|0|0> C<7|0|0> E<0x1|0x0|0x0|0x1> I<0x0|0x710|0x0>
[17:32:56.607]start pme
[17:32:56.802][ 26.260346] [I2C-04-RT<-62|-62>] M<0x30|0x0|0x0|3|300> L<7|0|0> C<7|0|0> E<0x10000|0x0|0x4|0x0> I<0x0|0x10|0x24f>
[17:32:56.867][ 26.273981] [I2C-02-RT<-5|-5>] M<0x30|0x0|0x0|3|300> L<7|0|0> C<7|0|0> E<0x1|0x0|0x0|0x1> I<0x0|0x710|0x0>
[17:32:56.867][ 26.284254] [I2C-02-RT<-5|-5>] M<0x30|0x0|0x0|3|300> L<7|0|0> C<7|0|0> E<0x1|0x0|0x0|0x1> I<0x0|0x710|0x0>
[17:32:56.867][ 26.296821] [I2C-02-RT<-5|-5>] M<0x30|0x0|0x0|3|300> L<7|0|0> C<7|0|0> E<0x1|0x0|0x0|0x1> I<0x0|0x710|0x0>
[17:32:56.867][ 26.307455] [I2C-08-RT<-5|-5>] M<0x48|0x1|0x0|3|10> L<1|2|0> C<1|0|2> E<0x801|0x0|0x0|0x1> I<0x0|0x710|0x0>
[17:32:56.867][ 26.317696] [I2C-02-RT<-5|-5>] M<0x30|0x0|0x0|3|300> L<7|0|0> C<7|0|0> E<0x1|0x0|0x0|0x1> I<0x0|0x710|0x0>
[17:32:56.873][ 26.327640] [I2C-02-RT<-5|-5>] M<0x30|0x0|0x0|3|300> L<7|0|0> C<7|0|0> E<0x1|0x0|0x0|0x1> I<0x0|0x710|0x0>
[17:32:56.882][ 26.341301] [I2C-11-RT<-5|-5>] M<0x48|0x1|0x0|3|10> L<1|2|0> C<1|0|2> E<0x801|0x0|0x0|0x1> I<0x0|0x710|0x0>
[17:32:56.902][ 26.351983] [I2C-02-RT<-5|-5>] M<0x30|0x0|0x0|3|300> L<7|0|0> C<7|0|0> E<0x1|0x0|0x0|0x1> I<0x0|0x710|0x0>
[17:32:56.902][ 26.362157] [I2C-02-RT<-5|-5>] M<0x30|0x0|0x0|3|300> L<7|0|0> C<7|0|0> E<0x1|0x0|0x0|0x1> I<0x0|0x710|0x0>
[17:32:56.909][ 26.372596] [I2C-02-RT<-5|-5>] M<0x30|0x0|0x0|3|300> L<7|0|0> C<7|0|0> E<0x1|0x0|0x0|0x1> I<0x0|0x710|0x0>
[17:32:56.919][ 26.382538] [I2C-02-RT<-5|-5>] M<0x30|0x0|0x0|3|300> L<7|0|0> C<7|0|0> E<0x1|0x0|0x0|0x1> I<0x0|0x710|0x0>
[17:32:56.934][ 26.392530] [I2C-02-RT<-5|-5>] M<0x30|0x0|0x0|3|300> L<7|0|0> C<7|0|0> E<0x1|0x0|0x0|0x1> I<0x0|0x710|0x0>
[17:32:56.948][ 26.407500] [I2C-02-RT<-5|-5>] M<0x30|0x0|0x0|3|300> L<7|0|0> C<7|0|0> E<0x1|0x0|0x0|0x1> I<0x0|0x710|0x0>
[17:32:56.960][ 26.417735] [I2C-02-RT<-5|-5>] M<0x30|0x0|0x0|3|300> L<7|0|0> C<7|0|0> E<0x1|0x0|0x0|0x1> I<0x0|0x510|0x0>
[17:32:56.970][ 26.430429] [I2C-02-RT<-5|-5>] M<0x30|0x0|0x0|3|300> L<7|0|0> C<7|0|0> E<0x1|0x0|0x0|0x1> I<0x0|0x710|0x0>
[17:32:56.983][ 26.444229] [I2C-02-RT<-5|-5>] M<0x30|0x0|0x0|3|300> L<7|0|0> C<7|0|0> E<0x1|0x0|0x0|0x1> I<0x0|0x710|0x0>
[17:32:56.994][ 26.456976] [I2C-02-RT<-5|-5>] M<0x30|0x0|0x0|3|300> L<7|0|0> C<7|0|0> E<0x1|0x0|0x0|0x1> I<0x0|0x710|0x0>
[17:32:57.004][ 26.467210] [I2C-02-RT<-5|-5>] M<0x30|0x0|0x0|3|300> L<7|0|0> C<7|0|0> E<0x1|0x0|0x0|0x1> I<0x0|0x710|0x0>
[17:32:57.021][ 26.477682] [I2C-02-RT<-5|-5>] M<0x30|0x0|0x0|3|300> L<7|0|0> C<7|0|0> E<0x1|0x0|0x0|0x1> I<0x0|0x710|0x0>
[17:32:57.031][ 26.489365] [I2C-02-RT<-5|-5>] M<0x30|0x0|0x0|3|300> L<7|0|0> C<7|0|0> E<0x1|0x0|0x0|0x1> I<0x0|0x710|0x0>
[17:32:57.050][ 26.499511] [I2C-02-RT<-5|-5>] M<0x30|0x0|0x0|3|300> L<7|0|0> C<7|0|0> E<0x1|0x0|0x0|0x1> I<0x0|0x710|0x0>
[17:32:57.065][ sensor_alarm ] initializing(1)…successfully.
[17:32:57.123][ 26.584031] [I2C-08-RT<-5|-5>] M<0x48|0x0|0x0|3|10> L<3|0|0> C<3|0|0> E<0x1|0x0|0x0|0x1> I<0x0|0x710|0x0>
[17:32:57.130][ Dft ] initializing(1)…successfully.
[17:32:57.148][ 26.595661] [I2C-11-RT<-5|-5>] M<0x48|0x0|0x0|3|10> L<3|0|0> C<3|0|0> E<0x1|0x0|0x0|0x1> I<0x0|0x710|0x0>
[17:32:57.180]The iBMC is running in ultimate mode.
[17:32:57.180][ BMC ] initializing(1)…successfully.
[17:32:57.336][ 26.792433] [I2C-02-RT<-5|-5>] M<0x30|0x0|0x0|3|300> L<7|0|0> C<7|0|0> E<0x1|0x0|0x0|0x1> I<0x0|0x710|0x0>
[17:32:57.384]Managed FRU 0 current state is …M0
[17:32:57.385]M0, continue!!
[17:32:57.399]Managed FRU 0 Power control task create…[Success]
[17:32:57.467][ Payload ] initializing(2)…successfully.
[17:32:57.467][ User ] initializing(4)…successfully.
[17:32:57.477]iBMC booted from secure mode successfully.
[17:32:57.992][ 27.454214] 43,1970-01-01 00:00:27,18,emmc_close_cache,21,close emmc cache.
[17:32:57.992]
[17:32:57.992]
[17:32:58.001]Managed FRU 0 state changed,cause is 0 …M0->M1
[17:32:58.018][ 27.462677] blk_update_request: I/O error, dev mmcblk0gp1, sector 2 op 0x1:(WRITE) flags 0x800 phys_seg 1 prio class 0
[17:32:58.023][ 27.479310] Buffer I/O error on dev mmcblk0gp1, logical block 1, lost sync page write
[17:32:58.027][ 27.487296] EXT4-fs (mmcblk0gp1): I/O error while writing superblock
[17:32:58.051][ 27.494610] EXT4-fs (mmcblk0gp1): error loading journal
[17:32:58.051]mount: mounting /dev/nvm_gold on /dev/shm/bmc_mount failed: Input/output error
[17:32:58.079]chmod: /var/bmc_ver_info/bmc_bak_verion: No such file or directory
[17:32:59.201][ BMC ] initializing(4)…successfully.
[17:32:59.202][ agentless ] initializing(5)…successfully.
[17:32:59.215][ PcieSwitch ] initializing(5)…successfully.
[17:32:59.215][ Dfp ] initializing(5)…successfully.
[17:32:59.229][ FileManage ] initializing(5)…successfully.
[17:32:59.236][ ai_mgmt ] initializing(5)…successfully.
[17:32:59.236][ net_nat ] initializing(5)…successfully.
[17:32:59.261][ 28.709118] 44,1970-01-01 00:00:28,2171,sol_reset,129,SOL-2 reset <0>.
[17:32:59.261][ 28.709118]
[17:32:59.277][ 28.724549] 45,1970-01-01 00:00:28,2171,sol_set_reg_val,546,SOL[2] Set Rx-start 0x86000000, Rx-size 0x3, Tx-start 0x86200000, Tx-size 0x3.
[17:32:59.311][ 28.777600] xhci-hcd xhci-hcd.0.auto: Host halt failed, -110
[17:32:59.323][ 28.783262] xhci-hcd xhci-hcd.0.auto: Host controller not halted, aborting reset.
[17:32:59.360][ 28.822875] 46,1970-01-01 00:00:28,2171,sol_reset,129,SOL-1 reset <0>.
[17:32:59.360][ 28.822875]
[17:32:59.390][ 28.828403] xhci-hcd xhci-hcd.1.auto: Host halt failed, -110
[17:32:59.391][ 28.836508] xhci-hcd xhci-hcd.1.auto: Host controller not halted, aborting reset.
[17:32:59.436][ kvm_vmm ] initializing(5)…successfully.
[17:32:59.436][ discovery ] initializing(5)…successfully.
[17:32:59.451][ usb_mgmt ] initializing(5)…successfully.
[17:32:59.451][ ddns ] initializing(5)…successfully.
[17:32:59.462][ 28.928199] 47,1970-01-01 00:00:28,2171,sol_set_reg_val,546,SOL[1] Set Rx-start 0x86400000, Rx-size 0x1, Tx-start 0x86480000, Tx-size 0x4.
[17:32:59.589][ MaintDebug ] initializing(5)…successfully.
[17:32:59.698][ MCTP ] initializing(5)…successfully.
[17:32:59.729][ 29.188516] hub 4-0:1.0: config failed, hub doesn’t have any ports! (err -19)
[17:32:59.796][ FruData ] initializing(5)…successfully.
[17:32:59.887][ 29.348094] [I2C-02-RT<-5|-5>] M<0x30|0x0|0x0|3|300> L<7|0|0> C<7|0|0> E<0x1|0x0|0x0|0x1> I<0x0|0x710|0x0>
[17:32:59.895][ 29.360668] [I2C-02-RT<-5|-5>] M<0x30|0x0|0x0|3|300> L<7|0|0> C<7|0|0> E<0x1|0x0|0x0|0x1> I<0x0|0x710|0x0>
[17:32:59.910][ LicenseMgnt ] initializing(5)…successfully.
[17:32:59.910]SetPidConfig: pidConfigItem 0, pidConfigValue 1.
[17:32:59.910]SetPidConfig: set PID ModeRecognise, g_modeRecogniseEnable 1.
[17:33:00.055][ BIOS ] initializing(5)…successfully.
[17:33:00.122][ UPGRADE ] initializing(5)…successfully.
[17:33:00.122][ StorageMgnt ] initializing(5)…successfully.
[17:33:00.132][ CpuMem ] initializing(5)…successfully.
[17:33:00.287][ card_manage ] initializing(5)…successfully.
[17:33:00.289][ Snmp ] initializing(5)…successfully.
[17:33:00.303][ PowerMgnt ] initializing(5)…successfully.
[17:33:00.391][ 29.856875] 48,1970-01-01 00:00:29,2187,dump_uart_connect_info,708,before config uart connect info ctrl0: 0x76543210, ctrl1: 0x76543210, status: 0xffff
[17:33:00.407][ 29.870411] 49,1970-01-01 00:00:29,2187,set_uart_connect_cfg,718,mode:1, src:0, dst:0
[17:33:00.416][ 29.878233] 50,1970-01-01 00:00:29,2187,dump_uart_connect_info,708,after config uart connect info ctrl0: 0x76543210, ctrl1: 0x76543210, status: 0xffff
[17:33:00.426][ 29.891930] [I2C-02-RT<-5|-5>] M<0x30|0x0|0x0|3|300> L<7|0|0> C<7|0|0> E<0x1|0x0|0x0|0x1> I<0x0|0x710|0x0>
[17:33:00.435][ 29.892339] 51,1970-01-01 00:00:29,2187,dump_uart_connect_info,708,before config uart connect info ctrl0: 0x76543210, ctrl1: 0x76543210, status: 0xffff
[17:33:00.453][ 29.915071] 52,1970-01-01 00:00:29,2187,set_uart_connect_cfg,718,mode:1, src:1, dst:1
[17:33:00.458][ 29.922889] 53,1970-01-01 00:00:29,2187,dump_uart_connect_info,708,after config uart connect info ctrl0: 0x76543210, ctrl1: 0x76543210, status: 0xffff
[17:33:00.472][ 29.936816] 54,1970-01-01 00:00:29,2187,dump_uart_connect_info,708,before config uart connect info ctrl0: 0x76543210, ctrl1: 0x76543210, status: 0xffff
[17:33:00.484][ 29.938211] [I2C-02-RT<-5|-5>] M<0x30|0x0|0x0|3|300> L<7|0|0> C<7|0|0> E<0x1|0x0|0x0|0x1> I<0x0|0x710|0x0>
[17:33:00.495][ 29.950343] 55,1970-01-01 00:00:29,2187,set_uart_connect_cfg,718,mode:1, src:2, dst:2
[17:33:00.505][ 29.950370] 56,1970-01-01 00:00:29,2187,dump_uart_connect_info,708,after config uart connect info ctrl0: 0x76543210, ctrl1: 0x76543210, status: 0xffff
[17:33:00.516][ 29.950831] 57,1970-01-01 00:00:29,2187,dump_uart_connect_info,708,before config uart connect info ctrl0: 0x76543210, ctrl1: 0x76543210, status: 0xffff
[17:33:00.529][ 29.994797] 58,1970-01-01 00:00:29,2187,set_uart_connect_cfg,718,mode:1, src:3, dst:3
[17:33:00.543][ 30.002616] 59,1970-01-01 00:00:29,2187,dump_uart_connect_info,708,after config uart connect info ctrl0: 0x76543210, ctrl1: 0x76543210, status: 0xffff
[17:33:00.551][ 30.016331] 60,1970-01-01 00:00:30,2187,dump_uart_connect_info,708,before config uart connect info ctrl0: 0x76543210, ctrl1: 0x76543210, status: 0xffff
[17:33:00.567][ 30.029946] 61,1970-01-01 00:00:30,2187,set_uart_connect_cfg,718,mode:1, src:4, dst:4
[17:33:00.573][ 30.037764] 62,1970-01-01 00:00:30,2187,dump_uart_connect_info,708,after config uart connect info ctrl0: 0x76543210, ctrl1: 0x76543210, status: 0xffff
[17:33:00.587][ 30.051358] [I2C-02-RT<-5|-5>] M<0x30|0x0|0x0|3|300> L<7|0|0> C<7|0|0> E<0x1|0x0|0x0|0x1> I<0x0|0x710|0x0>
[17:33:00.594][ 30.051588] 63,1970-01-01 00:00:30,2187,dump_uart_connect_info,708,before config uart connect info ctrl0: 0x76543210, ctrl1: 0x76543210, status: 0xffff
[17:33:00.612][ 30.074494] 64,1970-01-01 00:00:30,2187,set_uart_connect_cfg,718,mode:1, src:5, dst:5
[17:33:00.616][ 30.082311] 65,1970-01-01 00:00:30,2187,dump_uart_connect_info,708,after config uart connect info ctrl0: 0x76543210, ctrl1: 0x76543210, status: 0xffff
[17:33:00.636][ 30.095958] [I2C-02-RT<-5|-5>] M<0x30|0x0|0x0|3|300> L<7|0|0> C<7|0|0> E<0x1|0x0|0x0|0x1> I<0x0|0x710|0x0>
[17:33:00.643][ 30.096094] 66,1970-01-01 00:00:30,2187,dump_uart_connect_info,708,before config uart connect info ctrl0: 0x76543210, ctrl1: 0x76543210, status: 0xffff
[17:33:00.657][ 30.105733] 67,1970-01-01 00:00:30,2187,set_uart_connect_cfg,718,mode:1, src:6, dst:6
[17:33:00.662][ 30.105761] 68,1970-01-01 00:00:30,2187,dump_uart_connect_info,708,after config uart connect info ctrl0: 0x76543210, ctrl1: 0x76543210, status: 0xffff
[17:33:00.673][ 30.140751] [I2C-02-RT<-5|-5>] M<0x30|0x0|0x0|3|300> L<7|0|0> C<7|0|0> E<0x1|0x0|0x0|0x1> I<0x0|0x710|0x0>
[17:33:00.689][ 30.141077] 69,1970-01-01 00:00:30,2187,dump_uart_connect_info,708,before config uart connect info ctrl0: 0x76543210, ctrl1: 0x76543210, status: 0xffff
[17:33:00.703][ 30.163893] 70,1970-01-01 00:00:30,2187,set_uart_connect_cfg,718,mode:1, src:7, dst:7
[17:33:00.708][ 30.171710] 71,1970-01-01 00:00:30,2187,dump_uart_connect_info,708,after config uart connect info ctrl0: 0x76543210, ctrl1: 0x76543210, status: 0xffff
[17:33:00.718][ 30.185391] [I2C-02-RT<-5|-5>] M<0x30|0x0|0x0|3|300> L<7|0|0> C<7|0|0> E<0x1|0x0|0x0|0x1> I<0x0|0x710|0x0>
[17:33:00.730][ 30.187135] 72,1970-01-01 00:00:30,2187,dump_uart_connect_info,708,before config uart connect info ctrl0: 0x76543210, ctrl1: 0x76543210, status: 0xffff
[17:33:00.751][ 30.208533] 73,1970-01-01 00:00:30,2187,set_uart_connect_cfg,718,mode:2, src:2, dst:1
[17:33:10.756]01234567890123456789[ 40.222106] 80,1970-01-01 00:00:40,2187,dump_uart_connect_info,708,after config uart connect info ctrl0: 0x765432a0, ctrl1: 0x26543210, status: 0x7d7d
[17:33:10.782][ 40.249325] 81,1970-01-01 00:00:40,2187,dump_uart_connect_info,708,before config uart connect info ctrl0: 0x765432a0, ctrl1: 0x26543210, status: 0x7d7d
[17:33:10.818][ 40.262862] 82,1970-01-01 00:00:40,2187,set_uart_connect_cfg,718,mode:1, src:7, dst:2
[17:33:13.946]01234567890123456789[ 43.413044] 86,1970-01-01 00:00:43,2187,dump_uart_connect_info,708,after config uart connect info ctrl0: 0x765432a0, ctrl1: 0x26543210, status: 0x7d7d
[17:33:13.962][ 43.429639] 87,1970-01-01 00:00:43,2187,dump_uart_connect_info,708,before config uart connect info ctrl0: 0x765432a0, ctrl1: 0x26543210, status: 0x7d7d
[17:33:13.991][ 43.443175] 88,1970-01-01 00:00:43,2187,set_uart_connect_cfg,718,mode:1, src:7, dst:2
[17:33:17.124]01234567890123456789[ 46.589613] 92,1970-01-01 00:00:46,2187,dump_uart_connect_info,708,after config uart connect info ctrl0: 0x765432a0, ctrl1: 0x26543210, status: 0x7d7d
[17:33:17.140][ 46.606359] 93,1970-01-01 00:00:46,2187,dump_uart_connect_info,708,before config uart connect info ctrl0: 0x765432a0, ctrl1: 0x26543210, status: 0x7d7d
[17:33:17.158][ 46.619897] 94,1970-01-01 00:00:46,2187,set_uart_connect_cfg,718,mode:1, src:0, dst:0
[17:33:17.164][ 46.627718] 95,1970-01-01 00:00:46,2187,dump_uart_connect_info,708,after config uart connect info ctrl0: 0x765432a0, ctrl1: 0x26543210, status: 0x7d7d
[17:33:17.180][ 46.642853] 96,1970-01-01 00:00:46,2187,dump_uart_connect_info,708,before config uart connect info ctrl0: 0x765432a0, ctrl1: 0x26543210, status: 0x7d7d
[17:33:17.192][ 46.656387] 97,1970-01-01 00:00:46,2187,set_uart_connect_cfg,718,mode:1, src:1, dst:1
[17:33:17.208][ 46.664203] 98,1970-01-01 00:00:46,2187,dump_uart_connect_info,708,after config uart connect info ctrl0: 0x76543210, ctrl1: 0x26543210, status: 0x7f7f
[17:33:17.215][ 46.678725] 99,1970-01-01 00:00:46,2187,dump_uart_connect_info,708,before config uart connect info ctrl0: 0x76543210, ctrl1: 0x26543210, status: 0x7f7f
[17:33:17.300][ 46.692262] 100,1970-01-01 00:00:46,2187,set_uart_connect_cfg,718,mode:1, src:2, dst:2
[17:33:17.300][ 46.700168] 101,1970-01-01 00:00:46,2187,dump_uart_connect_info,708,after config uart connect info ctrl0: 0x76543210, ctrl1: 0x26543210, status: 0x7f7f
[17:33:17.300][ 46.714889] 102,1970-01-01 00:00:46,2187,dump_uart_connect_info,708,before config uart connect info ctrl0: 0x76543210, ctrl1: 0x26543210, status: 0x7f7f
[17:33:17.300][ 46.728510] 103,1970-01-01 00:00:46,2187,set_uart_connect_cfg,718,mode:1, src:3, dst:3
[17:33:17.300][ 46.736415] 104,1970-01-01 00:00:46,2187,dump_uart_connect_info,708,after config uart connect info ctrl0: 0x76543210, ctrl1: 0x26543210, status: 0x7f7f
[17:33:17.300][ 46.751251] 105,1970-01-01 00:00:46,2187,dump_uart_connect_info,708,before config uart connect info ctrl0: 0x76543210, ctrl1: 0x26543210, status: 0x7f7f
[17:33:17.303][ 46.764871] 106,1970-01-01 00:00:46,2187,set_uart_connect_cfg,718,mode:1, src:4, dst:4
[17:33:17.310][ 46.772775] 107,1970-01-01 00:00:46,2187,dump_uart_connect_info,708,after config uart connect info ctrl0: 0x76543210, ctrl1: 0x26543210, status: 0x7f7f
[17:33:17.332][ 46.786694] 108,1970-01-01 00:00:46,2187,dump_uart_connect_info,708,before config uart connect info ctrl0: 0x76543210, ctrl1: 0x26543210, status: 0x7f7f
[17:33:17.343][ 46.800316] 109,1970-01-01 00:00:46,2187,set_uart_connect_cfg,718,mode:1, src:5, dst:5
[17:33:17.346][ 46.808220] 110,1970-01-01 00:00:46,2187,dump_uart_connect_info,708,after config uart connect info ctrl0: 0x76543210, ctrl1: 0x26543210, status: 0x7f7f
[17:33:17.364][ 46.822148] 111,1970-01-01 00:00:46,2187,dump_uart_connect_info,708,before config uart connect info ctrl0: 0x76543210, ctrl1: 0x26543210, status: 0x7f7f
[17:33:17.378][ 46.835768] 112,1970-01-01 00:00:46,2187,set_uart_connect_cfg,718,mode:1, src:6, dst:6
[17:33:17.393][ 46.843672] 113,1970-01-01 00:00:46,2187,dump_uart_connect_info,708,after config uart connect info ctrl0: 0x76543210, ctrl1: 0x26543210, status: 0x7f7f
[17:33:17.399][ 46.857646] 114,1970-01-01 00:00:46,2187,dump_uart_connect_info,708,before config uart connect info ctrl0: 0x76543210, ctrl1: 0x26543210, status: 0x7f7f
[17:33:17.409][ 46.871263] 115,1970-01-01 00:00:46,2187,set_uart_connect_cfg,718,mode:1, src:7, dst:7
[17:33:17.413][ 46.879164] 116,1970-01-01 00:00:46,2187,dump_uart_connect_info,708,after config uart connect info ctrl0: 0x76543210, ctrl1: 0x76543210, status: 0xffff
[17:33:17.428][ 46.893863] 117,1970-01-01 00:00:46,2187,dump_uart_connect_info,708,before config uart connect info ctrl0: 0x76543210, ctrl1: 0x76543210, status: 0xffff
[17:33:17.457][ 46.907483] 118,1970-01-01 00:00:46,2187,set_uart_connect_cfg,718,mode:2, src:2, dst:1
bmc的一键收集日志提供一份
网口和串口都没法用，有什么方法进行可以进行一键收集日志？
通过直连上去能不能查看日志
直连是什么意思？网络ping 不通，iBMC原始状态串口只有打印，不能输入，还有什么接口进行直连？
直连就是拿台笔记本电脑用网线把笔记本和服务器连起来，就能访问bmc了
这个是uBMC启动时进入了L1FW串口输入界面，导致uBMC不启动，之后在该shell下输入指令boot_a55启动后的一键收集日志：
LZH001_null_19700101-0001.tar.gz (7.5 MB)
网络配置没有在platform.sr文件里面，你配置在哪里的
您说的这个网络配置是指ping不通的那个shell还是.tar.gz里面的信息？上面提到的网络ping不通的问题已经解决了，生产的通过OS端将IP改成了其他地址，没有查出来，当前的问题是硬件启动偶发会进入L1FW的shell界面，输入boot_a55还能正常启动，不知道为什么会进到这儿
进入这个界面，输入命令还能正常往下执行，一般是输入了CTRL+B才会进入，怀疑串口有命令输入，请排除一下此情况进行复现，看是否还能复现
硬件设计有问题，导致上电串口状态不固定，误触发了
