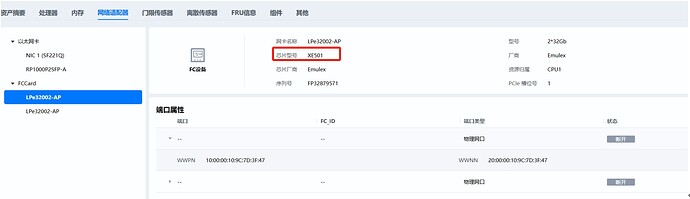

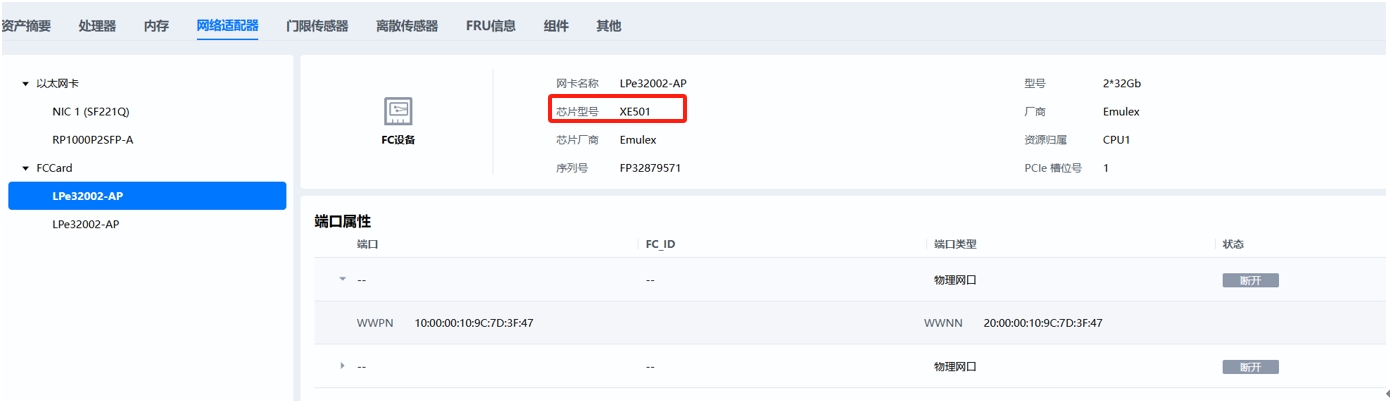

LPe32002-AP HBA FC卡的芯片型号在S920X20机型上装IBMA的情况下会显示FC信息，停止IBMA服务后不会显示网卡端口、FC_ID、状态信息查看相关贴发现已经支持了FC卡的带外信息管理。

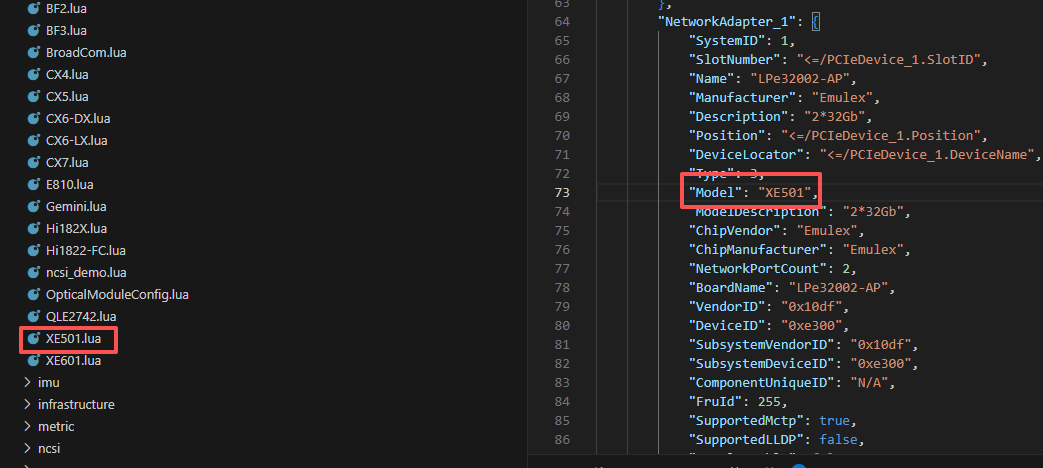

查看代码：
发现也已支持，截取部分日志显示，第一部分：
2025-11-19 10:35:58.067495 network_adapter NOTICE: network_adapter.lua(686): start create mctp endpoint with Bus=24, msg_types=1
2025-11-19 10:35:58.068170 network_adapter NOTICE: network_adapter.lua(690): creating mctp transport and endpoint with bdf=24:0.0 phy_addr=24, msg_types=1
2025-11-19 10:35:58.128521 mctpd NOTICE: mctp_eid_table.lua(81): mctp_eid_table: add eid info, module_name=network_adapter,msg_src_eid=9,phy_addr=24,msg_type=1, medium_type=15, ep_status=1
2025-11-19 10:35:58.129885 mctpd NOTICE: init.lua(87): mctp_endpoints: create endpoint, phy_addr=24, eid=9, msg_type=1, medium_type=15
2025-11-19 10:35:58.348307 network_adapter NOTICE: object_manage.lua(284): start to add objects, path: /bmc/kepler/ObjectGroup/0101010303, life cycle id: 1, count: 3
2025-11-19 10:35:58.649824 event_policy NOTICE: synchronizer.lua(209): synchronous the SEL successfully, cost 35307ms.
2025-11-19 10:35:58.700275 redfish NOTICE: alarm.lua(541): the count of the synchronized sel events is 0, start_id is 431
2025-11-19 10:35:58.700575 redfish NOTICE: alarm.lua(495): synchronous the SEL successfully, cost 6680ms.
2025-11-19 10:35:58.746594 redfish ERROR: mdb_event_mgr.lua(109): get ProductSerialNumber object failed, objs or path is nil
2025-11-19 10:35:58.749351 sensor NOTICE: object_manage.lua(506): start to fetch hwdiscovery objects
2025-11-19 10:35:58.775755 network_adapter NOTICE: init.lua(150): received signal on creation of endpoint: phy_addr=24, msg_type=1
2025-11-19 10:35:58.788866 network_adapter NOTICE: network_adapter.lua(700): register mctp transport and endpoint(phy: 24) successful
2025-11-19 10:35:58.789143 network_adapter NOTICE: network_adapter.lua(701): register mctp self.mctp_endpoints 1, self.transports 1
2025-11-19 10:35:58.824019 sensor NOTICE: object_manage.lua(495): delay start, delay: 0ms
2025-11-19 10:35:58.859146 sensor NOTICE: object_manage.lua(284): start to add objects, path: /bmc/kepler/ObjectGroup/00, life cycle id: 1, count: 10
2025-11-19 10:35:58.942148 event NOTICE: micro_component.lua(167): Startup status has changed, ==> Starting, uptime:126s, cost 0ms
2025-11-19 10:35:59.014371 network_adapter NOTICE: network_adapter.lua(1276): update_port_bdf, name:PCIeCard2(LPe32002-AP), DevBus=24, Bus=22, port_id=1, Type=3
2025-11-19 10:35:59.084512 event NOTICE: persist_client_lib.lua(60): persist client init completed, time taken: 70 ms
2025-11-19 10:35:59.164821 frudata NOTICE: frudata_app.lua(74): frudata add object, obj.FruId = 1, frudata name = FruData_Expander_0101, type = TianChi
2025-11-19 10:35:59.209558 frudata NOTICE: manage.lua(110): read eeprom data begin, obj.FruId = 1
2025-11-19 10:35:59.285089 frudata NOTICE: frudata_app.lua(102): fru_mdb_obj.FruDataId = FruData_Expander_0101
2025-11-19 10:35:59.297973 frudata NOTICE: frudata_app.lua(105): Fru [Id: 1, Name: ExpBoard1] emit added signal start
2025-11-19 10:35:59.302430 frudata NOTICE: object_manage.lua(304): add objects callback, path: /bmc/kepler/ObjectGroup/0101, life cycle id: 1, count: 16, took 1750ms
2025-11-19 10:35:59.310872 frudata NOTICE: object_manage.lua(315): add objects completely, path: /bmc/kepler/ObjectGroup/0101, life cycle id: 1, took 10ms
2025-11-19 10:35:59.340294 frudata NOTICE: object_manage.lua(284): start to add objects, path: /bmc/kepler/ObjectGroup/010103, life cycle id: 1, count: 14
2025-11-19 10:35:59.379034 network_adapter NOTICE: network_adapter.lua(1028): PCIeCard2(LPe32002-AP) update link status by pldm start, port_id:0
2025-11-19 10:35:59.379814 network_adapter NOTICE: network_adapter.lua(1011): PCIeCard2(LPe32002-AP)1 change link status to Disconnected
2025-11-19 10:35:59.470860 network_adapter NOTICE: network_adapter.lua(1028): PCIeCard2(LPe32002-AP) update link status by pldm start, port_id:1
2025-11-19 10:35:59.471646 network_adapter NOTICE: network_adapter.lua(1011): PCIeCard2(LPe32002-AP)2 change link status to Disconnected
2025-11-19 10:35:59.511658 network_adapter NOTICE: network_adapter.lua(998): PCIeCard2(LPe32002-AP) update link speed by pldm start, port_id:0
2025-11-19 10:35:59.512348 network_adapter NOTICE: network_adapter.lua(990): PCIeCard2(LPe32002-AP)1 link speed change to 0
2025-11-19 10:35:59.550491 network_adapter NOTICE: network_adapter.lua(998): PCIeCard2(LPe32002-AP) update link speed by pldm start, port_id:1
2025-11-19 10:35:59.565019 network_adapter NOTICE: network_adapter.lua(990): PCIeCard2(LPe32002-AP)2 link speed change to 0
2025-11-19 10:35:59.568141 network_adapter NOTICE: network_adapter.lua(977): PCIeCard2(LPe32002-AP) update chip temp by pldm start
2025-11-19 10:35:59.623447 network_adapter NOTICE: network_adapter.lua(1049): PCIeCard2(LPe32002-AP) update wwnn by pldm start, port_id:0
2025-11-19 10:35:59.625684 network_adapter NOTICE: network_adapter.lua(1049): PCIeCard2(LPe32002-AP) update wwnn by pldm start, port_id:1
2025-11-19 10:35:59.627501 network_adapter NOTICE: network_adapter.lua(1070): PCIeCard2(LPe32002-AP) update wwpn by pldm start, port_id:0
2025-11-19 10:35:59.628612 network_adapter NOTICE: network_adapter.lua(1070): PCIeCard2(LPe32002-AP) update wwpn by pldm start, port_id:1
2025-11-19 10:35:59.630493 network_adapter NOTICE: network_adapter.lua(940): PCIeCard2(LPe32002-AP) update serial number by pldm start
2025-11-19 10:35:59.654928 network_adapter NOTICE: network_adapter.lua(925): PCIeCard2(LPe32002-AP) update firmware version by pldm start
2025-11-19 10:35:59.666911 network_adapter NOTICE: network_adapter.lua(955): PCIeCard2(LPe32002-AP) update part number by pldm start
2025-11-19 10:35:59.791681 network_adapter NOTICE: network_adapter.lua(911): PCIeCard2(LPe32002-AP) update all info by pldm start
2025-11-19 10:36:00.151833 sensor NOTICE: object_manage.lua(304): add objects callback, path: /bmc/kepler/ObjectGroup/00, life cycle id: 1, count: 10, took 1300ms
2025-11-19 10:36:00.229893 network_adapter ERROR: ncsi_channel.lua(172): ncsi cmd ctrl disable channel tx failed, package_id = 1, channel_id = 2, eth_name = eth0
2025-11-19 10:36:00.230472 network_adapter ERROR: ncsi_core.lua(124): ncsi: Disable channel TX failed.
2025-11-19 10:36:00.231701 network_adapter NOTICE: ncsi_core.lua(60): ncsi: Enable channel. package_id=1, channel_d=3, eth_name=eth0
2025-11-19 10:36:00.295580 sensor NOTICE: object_manage.lua(315): add objects completely, path: /bmc/kepler/ObjectGroup/00, life cycle id: 1, took 140ms
2025-11-19 10:36:00.606040 sensor NOTICE: object_manage.lua(284): start to add objects, path: /bmc/kepler/ObjectGroup/0102, life cycle id: 1, count: 32
2025-11-19 10:36:00.953604 frudata NOTICE: frudata_app.lua(74): frudata add object, obj.FruId = 4, frudata name = FruData_FanBoard_010103, type = TianChi
2025-11-19 10:36:00.986546 frudata NOTICE: manage.lua(110): read eeprom data begin, obj.FruId = 4
2025-11-19 10:36:01.000211 network_adapter ERROR: ncsi_channel.lua(172): ncsi cmd ctrl enable channel failed, package_id = 1, channel_id = 3, eth_name = eth0
2025-11-19 10:36:01.000489 network_adapter ERROR: ncsi_core.lua(64): ncsi: Enable channel failed.
2025-11-19 10:36:01.000746 network_adapter NOTICE: ncsi_core.lua(120): ncsi: Disable channel TX. package_id = 1, channel_d = 3, eth_name = eth0
2025-11-19 10:36:01.200559 frudata NOTICE: frudata_app.lua(102): fru_mdb_obj.FruDataId = FruData_FanBoard_010103
2025-11-19 10:36:01.201655 frudata NOTICE: frudata_app.lua(105): Fru [Id: 4, Name: FanBoard1] emit added signal start
2025-11-19 10:36:01.220981 frudata NOTICE: object_manage.lua(304): add objects callback, path: /bmc/kepler/ObjectGroup/010103, life cycle id: 1, count: 14, took 1880ms
2025-11-19 10:36:01.222000 frudata NOTICE: object_manage.lua(315): add objects completely, path: /bmc/kepler/ObjectGroup/010103, life cycle id: 1, took 0ms
2025-11-19 10:36:01.297381 frudata NOTICE: object_manage.lua(284): start to add objects, path: /bmc/kepler/ObjectGroup/01010A, life cycle id: 1, count: 10
2025-11-19 10:36:01.534656 frudata NOTICE: frudata_app.lua(74): frudata add object, obj.FruId = 0, frudata name = FruData_Fru0_01010A, type = TianChi
第二部分：
2025-11-19 19:34:47.681099 ipmi_core NOTICE: ipmi_dump.lua(33): dump_route_table collect start.
2025-11-19 19:34:47.776148 ipmi_core NOTICE: ipmi_dump.lua(46): dump_route_table collect end.
2025-11-19 19:34:47.777980 ipmi_core NOTICE: ipmi_dump.lua(96): ipmi_core dump end.
2025-11-19 19:34:48.062434 om ERROR: alm_callback.c(789): [license][alm] 0004[TIME]2025-11-19 19:34:48 lgen-ck err–350: Prd[1] ALM_LicGeneralQuery end 2030043238
2025-11-19 19:34:48.064178 license ERROR: license_dump.lua(112): Get revoke ticket from db failed
2025-11-19 19:34:48.065592 om ERROR: alm_callback.c(789): [license][alm] 0005[TIME]2025-11-19 19:34:48 lgen-ck err–350: Prd[1] ALM_LicGeneralQuery end 2030043238
2025-11-19 19:34:48.066360 license ERROR: license_dump.lua(65): failed to get feature key info, ret = 0x79000066
2025-11-19 19:34:48.165692 om ERROR: alm_callback.c(789): [license][alm] 0006[TIME]2025-11-19 19:34:48 lgen-ck err–350: Prd[1] ALM_LicGeneralQuery end 2030043238
2025-11-19 19:34:48.443958 oms NOTICE: task_mgmt.lua(418): Update task[Id: 2464439726, StartTime: 2025-11-19T19:34:39+08:00, Progress: 26, State: Running] successfully
2025-11-19 19:34:49.587443 oms NOTICE: task_mgmt.lua(418): Update task[Id: 2464439726, StartTime: 2025-11-19T19:34:39+08:00, Progress: 29, State: Running] successfully
2025-11-19 19:34:49.702231 hardware ERROR: mctp_dump.cpp(40): Failed to open /dev/mem
2025-11-19 19:34:49.703409 mctpd NOTICE: mctp_dump.lua(91): mctp info collect finish
2025-11-19 19:34:49.705425 unknown_service NOTICE: debug.lua(823): dump mctpd/service/write_service rpc count records success
2025-11-19 19:34:49.707067 unknown_service NOTICE: debug.lua(823): dump mctpd/service/smbus_write_read_service rpc count records success
2025-11-19 19:34:49.726268 general_hardware NOTICE: unit_manager.lua(642): unit_manager:on_dump_cb start.
2025-11-19 19:34:49.970682 metric_analyzer NOTICE: metric_dump.lua(90): metric.db dump completed
2025-11-19 19:34:49.972914 metric_analyzer NOTICE: metric_dump.lua(90): per_poweroff.db dump completed
2025-11-19 19:34:49.975340 metric_analyzer NOTICE: metric_dump.lua(90): per_reset.db dump completed
2025-11-19 19:34:50.296026 general_hardware NOTICE: unit.lua(485): CpuBoard1 collect finish
2025-11-19 19:34:50.327800 general_hardware NOTICE: unit.lua(485): ExpBoard1 collect finish
2025-11-19 19:34:50.684214 general_hardware NOTICE: unit.lua(485): FanBoard1 collect finish
2025-11-19 19:34:50.719474 oms NOTICE: task_mgmt.lua(418): Update task[Id: 2464439726, StartTime: 2025-11-19T19:34:39+08:00, Progress: 31, State: Running] successfully
2025-11-19 19:34:51.166126 general_hardware NOTICE: unit.lua(485): DiskBP1 collect finish
2025-11-19 19:34:51.193878 general_hardware NOTICE: unit_manager.lua(722): HDD Backplane Info collect finish
2025-11-19 19:34:51.226772 general_hardware NOTICE: unit_manager.lua(722): FAN board Info collect finish
2025-11-19 19:34:51.240702 general_hardware NOTICE: unit_manager.lua(722): EXP board info collect finish
2025-11-19 19:34:51.257517 general_hardware NOTICE: unit_manager.lua(722): CPU board Info collect finish
2025-11-19 19:34:51.259291 general_hardware NOTICE: unit_manager.lua(722): Riser Card Info collect finish
2025-11-19 19:34:51.304617 general_hardware NOTICE: mcu_service.lua(206): mcu info collect finish
2025-11-19 19:34:51.514219 general_hardware NOTICE: smc_interface.lua(514): total_len:120 register_num:8 register_len:15
2025-11-19 19:34:51.649989 network_adapter NOTICE: log_netcard_info.lua(149): log_dump_cb: collect netcard info
2025-11-19 19:34:51.650372 network_adapter NOTICE: log_netcard_info.lua(93): start collect netcard info
2025-11-19 19:34:51.777686 network_adapter NOTICE: log_netcard_info.lua(154): finish to dump net card info log
2025-11-19 19:34:52.170887 power_mgmt NOTICE: log_service.lua(155): collect power_mgmt log start
2025-11-19 19:34:52.233479 oms NOTICE: task_mgmt.lua(418): Update task[Id: 2464439726, StartTime: 2025-11-19T19:34:39+08:00, Progress: 33, State: Running] successfully
2025-11-19 19:34:52.316720 general_hardware NOTICE: smc_interface.lua(552): [VrdDump]get vrd dump cnt 120
2025-11-19 19:34:52.326274 general_hardware NOTICE: mcu_service.lua(174): vrd ifx info collect finish
2025-11-19 19:34:52.390910 general_hardware NOTICE: vrd_manager.lua(204): vrd info collect finish
2025-11-19 19:34:53.352951 remote_console NOTICE: dump.lua(51): remote_console dump begin
2025-11-19 19:34:53.357602 oms NOTICE: task_mgmt.lua(418): Update task[Id: 2464439726, StartTime: 2025-11-19T19:34:39+08:00, Progress: 36, State: Running] successfully
2025-11-19 19:34:53.357753 unknown_service NOTICE: debug.lua(823): dump remote_console/service/vmm_agent rpc count records success
2025-11-19 19:34:53.360459 unknown_service NOTICE: debug.lua(823): dump remote_console/service/vmm_core rpc count records success
2025-11-19 19:34:53.361495 unknown_service NOTICE: debug.lua(823): dump remote_console/service/vmm_client rpc count records success
2025-11-19 19:34:53.362646 unknown_service NOTICE: debug.lua(823): dump remote_console/service/videoplay_agent rpc count records success
2025-11-19 19:34:53.366455 unknown_service NOTICE: debug.lua(823): dump remote_console/service/console_agent rpc count records success
2025-11-19 19:34:53.650809 pcie_device NOTICE: device_service.lua(540): [DeviceService] App log dump.
2025-11-19 19:34:53.681171 redfish NOTICE: event.lua(537): redfish dump is started
2025-11-19 19:34:53.682360 redfish NOTICE: debug.lua(823): dump route_mapper/worker_service/main rpc count records success
2025-11-19 19:34:53.687288 redfish NOTICE: event.lua(550): redfish dump is completed
2025-11-19 19:34:53.964953 pcie_device NOTICE: biz_topo.lua(1243): [BizTopo] cable log dump.
2025-11-19 19:34:54.464632 oms NOTICE: task_mgmt.lua(418): Update task[Id: 2464439726, StartTime: 2025-11-19T19:34:39+08:00, Progress: 39, State: Running] successfully
2025-11-19 19:34:55.564716 oms NOTICE: task_mgmt.lua(418): Update task[Id: 2464439726, StartTime: 2025-11-19T19:34:39+08:00, Progress: 41, State: Running] successfully
2025-11-19 19:34:56.741593 oms NOTICE: task_mgmt.lua(418): Update task[Id: 2464439726, StartTime: 2025-11-19T19:34:39+08:00, Progress: 42, State: Running] successfully
2025-11-19 19:34:57.340688 unknown_service NOTICE: debug.lua(823): dump storage/service/smld rpc count records success
2025-11-19 19:34:57.371507 storage NOTICE: storage_app.lua(67): Dumping bios_boot_stage
2025-11-19 19:34:57.382825 storage NOTICE: storage_app.lua(69): Dumping controllers info
2025-11-19 19:34:57.834204 oms NOTICE: task_mgmt.lua(418): Update task[Id: 2464439726, StartTime: 2025-11-19T19:34:39+08:00, Progress: 45, State: Running] successfully
2025-11-19 19:34:57.916701 web_backend NOTICE: debug.lua(823): dump route_mapper/worker_service/main rpc count records success
2025-11-19 19:34:58.681664 unknown_service ERROR: screenshot_api.lua(48): get lastframe ready state failed
2025-11-19 19:34:58.682648 remote_console NOTICE: dump.lua(47): VCE info collect finish
2025-11-19 19:34:58.683209 remote_console NOTICE: dump.lua(61): remote_console dump end
2025-11-19 19:34:58.933902 oms NOTICE: task_mgmt.lua(418): Update task[Id: 2464439726, StartTime: 2025-11-19T19:34:39+08:00, Progress: 46, State: Running] successfully
2025-11-19 19:35:02.311194 power_mgmt NOTICE: psu_service.lua(75): get_black_box_info start
2025-11-19 19:35:02.311625 power_mgmt NOTICE: PsuSlot.lua(140): ps2 power monitor stop
2025-11-19 19:35:02.312058 power_mgmt NOTICE: PsuSlot.lua(301): stop psu power monitor remote task, ps_id=2, monitor task_id=false
2025-11-19 19:35:02.446349 power_mgmt NOTICE: PsuSlot.lua(140): ps1 power monitor stop
2025-11-19 19:35:02.447172 power_mgmt NOTICE: PsuSlot.lua(301): stop psu power monitor remote task, ps_id=1, monitor task_id=1
2025-11-19 19:35:02.640304 power_mgmt NOTICE: psu_service.lua(82): psm_get_black_box_info psu_id 2 start
2025-11-19 19:35:03.755886 sensor NOTICE: sensor_instance.lua(1154): sensor [ThresholdSensor_SysTotalPower_01010A] threshold capability can not be supported.
2025-11-19 19:35:03.756359 sensor NOTICE: sensor_instance.lua(1158): sensor [ThresholdSensor_SysTotalPower_01010A] hysteresis capability can not be supported.
2025-11-19 19:35:04.440633 bios NOTICE: log_collector.lua(100): [bios]finish to dump bios log
2025-11-19 19:35:05.538283 oms NOTICE: task_mgmt.lua(418): Update task[Id: 2464439726, StartTime: 2025-11-19T19:34:39+08:00, Progress: 47, State: Running] successfully
2025-11-19 19:35:06.971646 thermal_mgmt NOTICE: fan_service.lua(269): Get fans config obj success.
2025-11-19 19:35:06.975067 thermal_mgmt NOTICE: fan_service.lua(248): Get fan(id: 4) pwm success, power good: 1, standby: false, pwm: 79
2025-11-19 19:35:07.149838 power_mgmt NOTICE: psu_service.lua(93): psm_get_black_box_info psu_id 2 end
2025-11-19 19:35:07.151045 power_mgmt NOTICE: psu_service.lua(82): psm_get_black_box_info psu_id 1 start
2025-11-19 19:35:08.482167 thermal_mgmt NOTICE: fan_service.lua(248): Get fan(id: 3) pwm success, power good: 1, standby: false, pwm: 79
2025-11-19 19:35:09.976967 thermal_mgmt NOTICE: fan_service.lua(248): Get fan(id: 1) pwm success, power good: 1, standby: false, pwm: 79
2025-11-19 19:35:11.474985 thermal_mgmt NOTICE: fan_service.lua(248): Get fan(id: 2) pwm success, power good: 1, standby: false, pwm: 79
2025-11-19 19:35:11.565424 power_mgmt NOTICE: psu_service.lua(93): psm_get_black_box_info psu_id 1 end
2025-11-19 19:35:11.566831 power_mgmt NOTICE: psu_service.lua(96): get_black_box_info end
2025-11-19 19:35:11.580218 power_mgmt NOTICE: PsuSlot.lua(509): ps2 power monitor start
2025-11-19 19:35:11.581317 power_mgmt NOTICE: PsuSlot.lua(509): ps1 power monitor start
2025-11-19 19:35:12.974322 thermal_mgmt NOTICE: thermal_mgmt_app.lua(225): collect log finished
2025-11-19 19:35:13.246865 oms NOTICE: task_mgmt.lua(418): Update task[Id: 2464439726, StartTime: 2025-11-19T19:34:39+08:00, Progress: 48, State: Running] successfully
2025-11-19 19:35:13.608524 power_mgmt NOTICE: PsuSlot.lua(278): start psu power monitor remote task, ps_id=1, task_id=1
2025-11-19 19:35:15.573548 power_mgmt NOTICE: log_service.lua(164): collect power_mgmt log finished
问题：

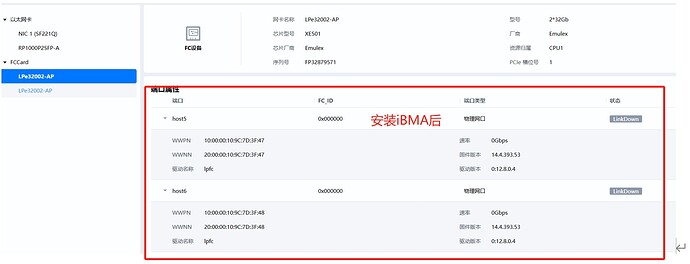

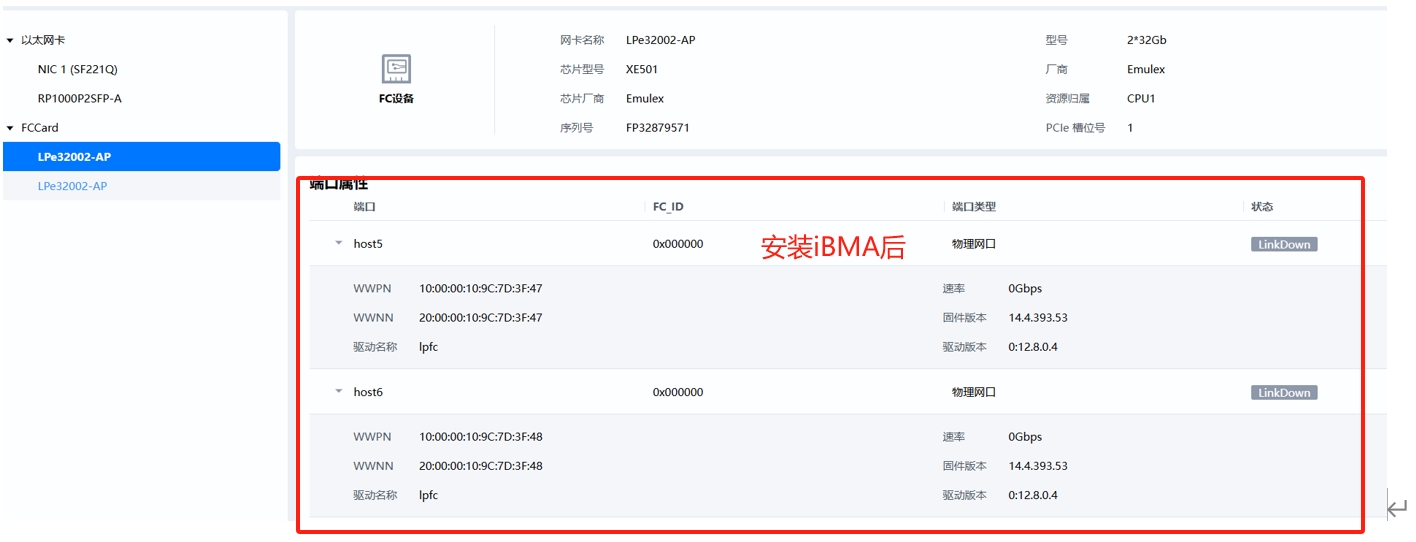

1.第一部分日志应该是装ibma后的日志？
2.第二部分日志是start stop IBMA服务后的日志，好像看不出什么。造成此现象是卡在mctp节点分配了？
