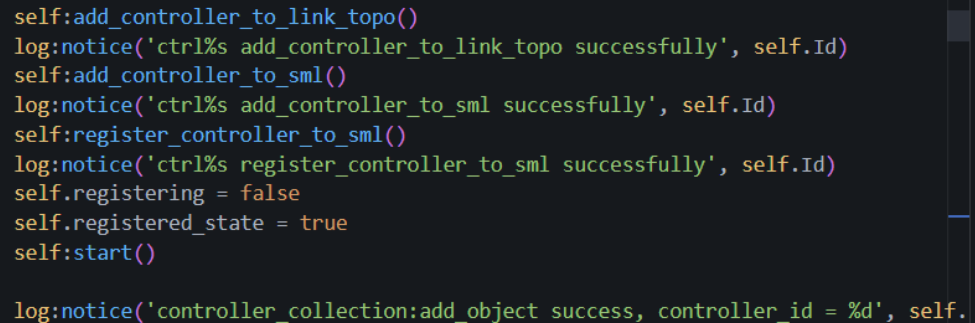

Raid卡加载进行到add_controller_to_sml()函数时报错，ret=4357

[xuzhijia (百敖-徐志佳)]

// 此模板仅供参考，如果不适用可以修改

问题描述

适配博通 9580-8i8e Raid卡时Controller信息获取失败，核心日志如下,这里的ret: 4357代表了什么含义？

2026-04-27 12:00:17.654412 storage NOTICE: controller_object.lua(256): controller init obj.Id = 0, object_id = 1, key = PCIe Card 6 (9580-8i8e)
2026-04-27 12:00:17.779624 storage NOTICE: controller_object.lua(395): controller0 begin register
2026-04-27 12:00:17.781871 storage NOTICE: object_manage.lua(336): add objects callback, path: /bmc/kepler/ObjectGroup/0101010901, life cycle id: 1, count: 2, took 6470ms, uptime: 126 s
2026-04-27 12:00:17.783218 storage NOTICE: object_manage.lua(346): add objects completely, path: /bmc/kepler/ObjectGroup/0101010901, life cycle id: 1, took 0ms, uptime: 126 s
2026-04-27 12:00:17.830810 storage NOTICE: init.lua(571): sml: set i2c chip, ctrl_idx=0, chip=/bmc/kepler/Chip/Complex/Chip_RaidChip_0101010901
2026-04-27 12:00:17.832077 storage NOTICE: controller_object.lua(855): Controller_0, RefChip.Path:/bmc/kepler/Chip/Complex/Chip_RaidChip_0101010901

2026-04-27 12:01:23.764551 storage NOTICE: controller_object.lua(428): ctrl0 add_controller_to_link_topo successfully
2026-04-27 12:01:23.837961 storage ERROR: tasks.lua(92): task [Controller.register_controller.0] error: ...bmc/apps/storage/lualib/controller/controller_object.lua:880: [Storage] Failed to add controller 0, ret: 4357
2026-04-27 12:01:28.837250 storage NOTICE: init.lua(571): sml: set i2c chip, ctrl_idx=0, chip=/bmc/kepler/Chip/Complex/Chip_RaidChip_0101010901
2026-04-27 12:01:28.837890 storage NOTICE: controller_object.lua(855): Controller_0, RefChip.Path:/bmc/kepler/Chip/Complex/Chip_RaidChip_0101010901

环境信息

• 软件版本 OpenUBMC2603

[KuiTai_FanChunYang (神码-范春阳)]

可以看看这个25.12社区版本，博通9560 16i raid卡信息获取异常 - 交流互助区 - openUBMC 论坛

[xuzhijia (百敖-徐志佳)]

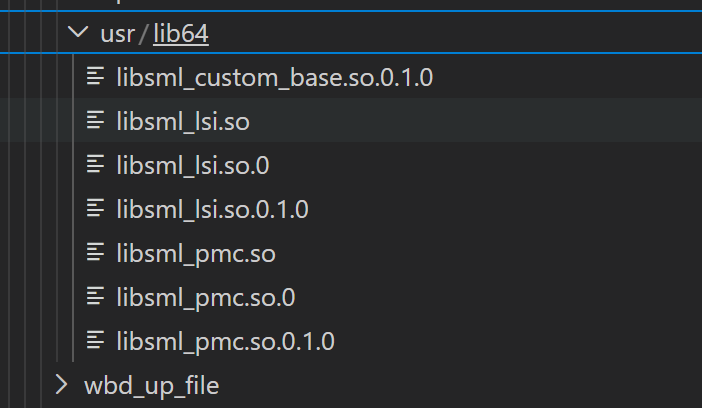

这个库是从那里获取的？添加的具体路径是啥，lib64前面挡住了

[xuzhijia (百敖-徐志佳)]

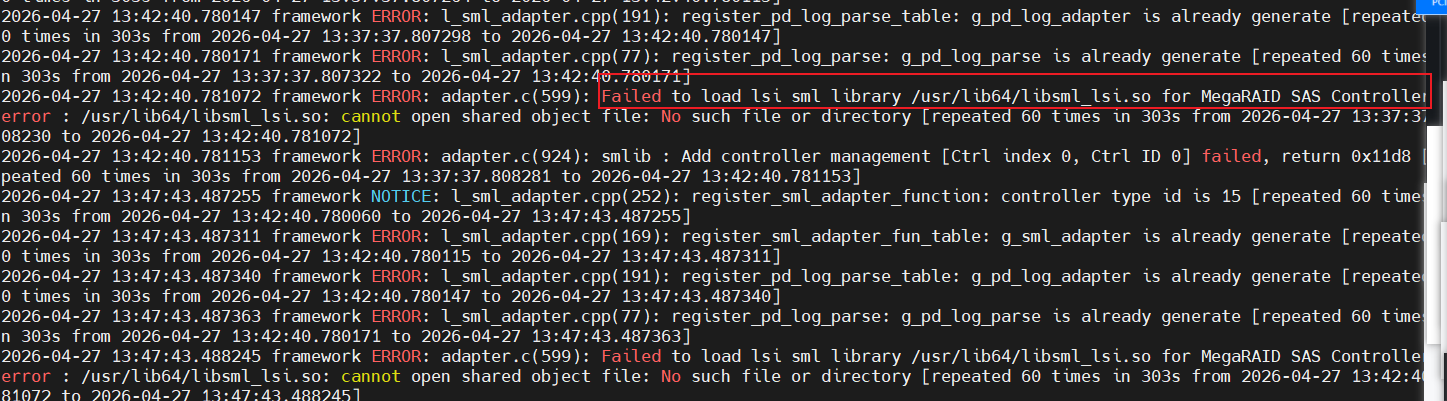

根本原因是构建时没有打包对应的so库，使用社区高可用组件版本解决
